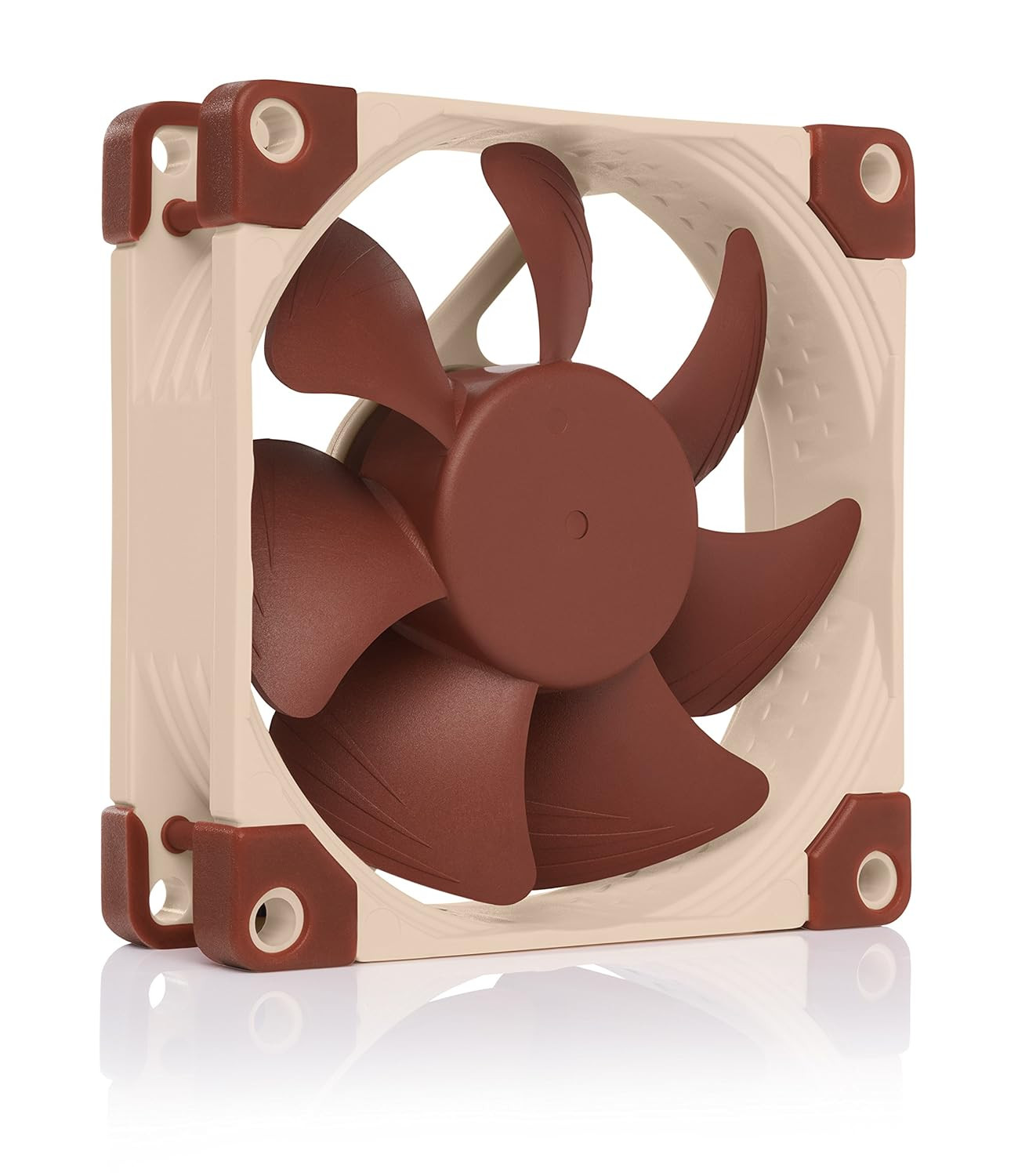

NF-A8 5V PWM, High-Performance Quiet Fan 80Mm
Product description
The NF-A8 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-A8 80mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing ensure superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable and OmniJoin adaptor set, the NF-A8 5V PWM is a premium choice for demanding 5V applications that require PWM control.
5V PWM version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin adaptor set, the NF-A8 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Please Note: Being a 5V fan, the NF-A8 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Flow Acceleration Channels
The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2 bearing
The NF-A8 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Please Note:
Being a 5V fan, the NF-A8 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 2,264 4.8 out of 5 stars 1,759 4.8 out of 5 stars 1,379 4.8 out of 5 stars 527 4.6 out of 5 stars 334 — Price $17.95$17.95 $17.95$17.95 $17.95$17.95 $17.95$17.95 — no data — no data Connector 4-pin PWM 3-pin 3-pin 4-pin PWM 3-pin 4-pin PWM Voltage 12V 12V 12V 5V 5V 12V RPM Max: 2200 / Min: 450 2000 1400 Max: 2200 / Min: 450 2200 Max: 2200 / Min: 450 RPM with L.N.A. 1750 1650 1100 - no data - no data - no data RPM with U.L.N.A. - no data 1200 - no data - no data - no data - no data Acoustical Noise 17,7 dB(A) 16,1 dB(A) 10,4 dB(A) 17,7 dB(A) 17,7 dB(A) 17,7 dB(A) Acoustical Noise with L.N.A. 13,8 dB(A) 12,9 dB(A) 6,5 dB(A) - no data - no data - no data Acoustical Noise with U.L.N.A. - no data 7,9 dB(A) - no data - no data - no data - no data Size 80x80x25 mm 80x80x25 mm 80x80x25 mm 80x80x25 mm 80x80x25 mm 80x80x25 mm Colour Brown & Beige Brown & Beige Brown & Beige Brown & Beige Brown & Beige Black with swappable coloured anti-vibration pads
- Premium quiet fan, 80x80x25 mm, 5V, 4-pin PWM, max. 2200 RPM, max. 17.7 dB(A), >150,000 h MTTF
- Award-winning 80x25mm A-series design with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
- 5V 4-pin PWM version (2200rpm maximum speed) with polarity protection for 5V applications with PWM speed control
- USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
- Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connection to proprietary fan headers
Dimensions 0.98 inches x 3.15 inches x 3.15 inches. Specifications Power Connector Type 4-Pin Voltage 5 volts Cooling Method Air Compatible Devices Desktop Noise Level 17.7 db Maximum Rotational Speed 2200 rpm Item Dimensions L x W x H 3.15"L x 3.15"W x 0.98"H Material Type Fibre-glass reinforced PBT Item Highlight function(f) {var { function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); High Airflow Low Noise, 5V, 25mm Thick Fan, for Ventilation and Electronics Cooling, USB-A Power Adaptor, 2200rpm 4-Pin PWM See more Warranty Description 6 year manufacturer’s warranty Number of Packs 1 Number of Items 19 Unit Count 1 Count Included Components 1 product Model NF-A85VPWM Part Number NF-A85VPWM Product Dimensions 3.15"L x 3.15"W x 0.98"H Material Fibre-glass reinforced PBT
