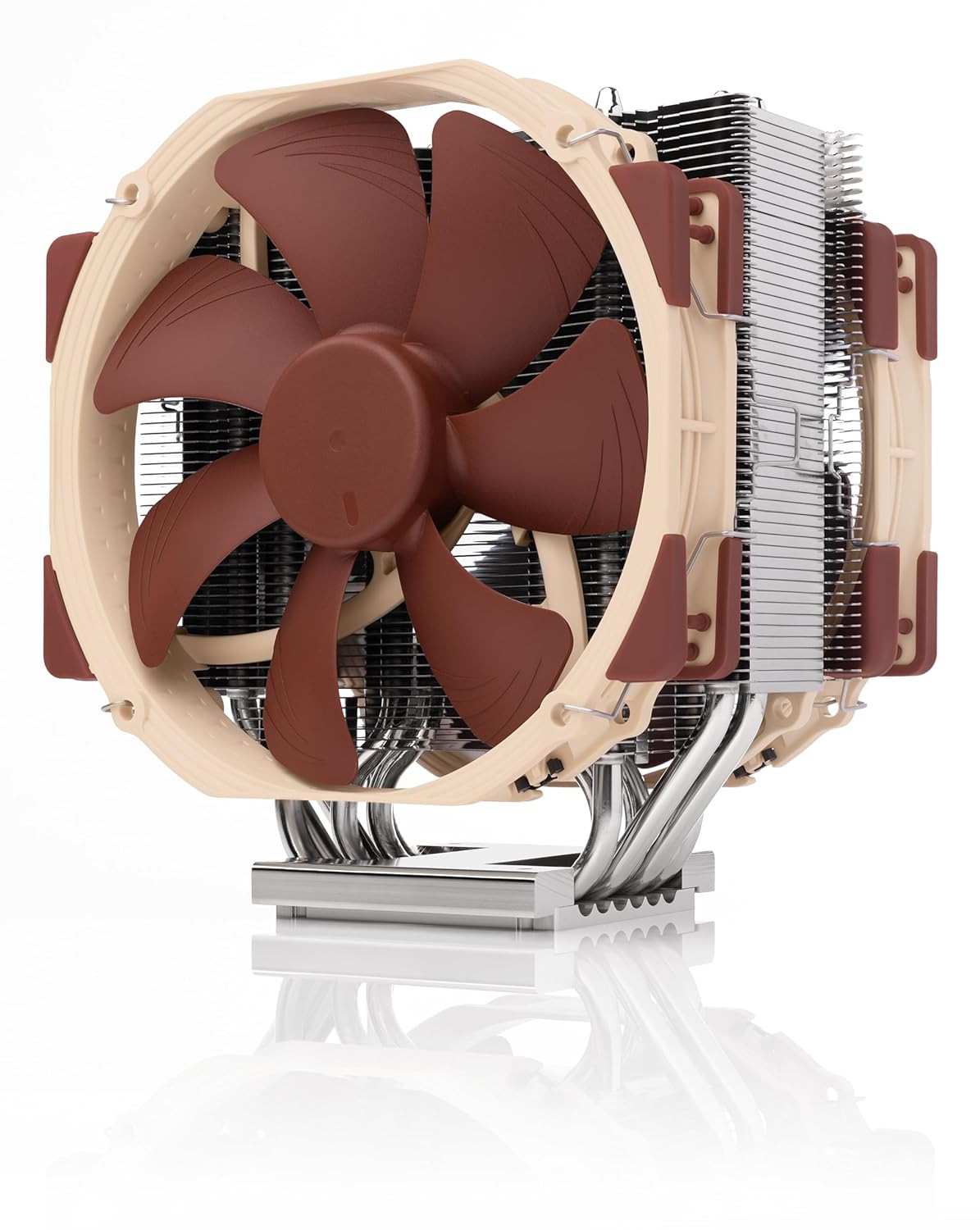

NH-U14S TR5-SP6 Premium Quality Quiet 140Mm CPU Cooler for AMD Threadripper (Str

Price: US $190.16

NH-U14S TR5-SP6 Premium Quality Quiet 140Mm CPU Cooler for AMD Threadripper (Str5) and Epyc 8004 (SP6)Description Warranty Description 6 year manufacturer’s warranty Number of Items 1 Noise Level 24.6 Decibels Material Type Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating Unit Count 1.0 Count Power Connector Type 4-Pin Product Dimensions 5.91"L x 4.37"W x 6.5"H Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating Cooling Method Air Item Weight 1136 Grams Maximum Rotational Speed 1500 RPM Air Flow Capacity 140.2 Cubic Meters Per Hour Model NH-U14STR5-SP6 Part Number NH-U14STR5-SP6 Item Dimensions L x W x H 5.91"L x 4.37"W x 6.5"H Wattage 1.05 watts Compatible Devices Desktop Global Trade Identification Number 09010018000450 Voltage 12 Volts Included Components 1 package

6 heatpipes, 140mm size and premium grade 140mm fan for superb quiet cooling efficiency, ideal for near inaudible workstations in noise sensitive applications (audio/video production, engineering, etc.)
Supports AMD SP6 socket for Epyc 8004 line server CPUs as well as sTR5 socket for 7000 series Threadripper (Pro) HEDT and workstations processors (TRX50/WRX90 chipsets, e.g. 7995WX, 7985WX, 7980X, 7970X, 7960X)
Airflow path perpendicular to the long axis of the socket, ideal for systems where the exhaust fans of the chassis are in this direction
Award-winning NF-A15 fan supports PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary
Pre-applied NT-H2 thermal compound and easy, straightforward installation with included mounting tool

Product description

The NH-U14S TR5-SP6 is a 140mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise sTR5/SP6 sockets. Built on the proven basis of the renowned TR4-SP3 model with its large heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctua’s award-winning, PWM controlled NF-A15 140mm fans in order to achieve maximum performance and superb acoustics. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2 mounting system for sTR5/SP6 that has been updated to meet the platform’s increased pressure specifications, the NH-U14S TR5-SP6 forms a complete premium quality package for quietly cooling sTR5-based Threadripper workstations and SP6-based Epyc servers.

Enlarged contact surface

At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard desktop model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s sTR5/SP6 based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Dual NF-A15 140mm premium fans

The NH-U14S TR5-SP6 is equipped with two of Noctua’s award-winning NF-A15 140mm fans. This powerful push/pull dual fan configuration allows it to achieve an unrivalled level of quiet cooling performance and makes it the first choice for workstations that require the best possible cooler, period.

Pre-applied NT-H2 thermal compound

Noctua’s much-acclaimed NT-H2 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!

Offset mounting options

The SecuFirm2 mounting for sTR5/SP6 makes it possible to offset the cooler by 3 or 6mm. On motherboards with east-to-west socket orientation, this can be used to offset the cooler(s) towards the right, increasing clearance towards the I/O panel. On boards that use a north-to-south orientation of the CPU socket(s), this allows offsetting the cooler towards the upper edge of the motherboard in order to increase PCIe clearance.

Measurements

Height (without fan): 165mm
Width (without fan): 150mm
Depth (without fan): 52mm
Height (with fan): 165mm
Width (with fan): 150mm
Depth (with fan): 111mm
Weight (without fan): 797g
Weight (with fan/s): 1136g

Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specification

Please note that the NH-U14S TR5-SP6 is a dedicated version for AMD sTR5/SP6 sockets. Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua’s mounting kits for these sockets. Please refer to our socket compatibility overview for details.

Scope of delivery

2x NF-A15 HS-PWM premium fan
NA-YC1 4-pin PWM splitter cable
NT-H2 high-grade thermal compound (pre-applied)
SecuFirm2 mounting kit for sTR5/SP6
NM-SMT4 mounting tool for mounting bracket installation

Proven heatsinks for AMD Threadripper & Epyc

First introduced in 2017, Noctua’s Threadripper and Epyc coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for AMD-based workstations and servers.
