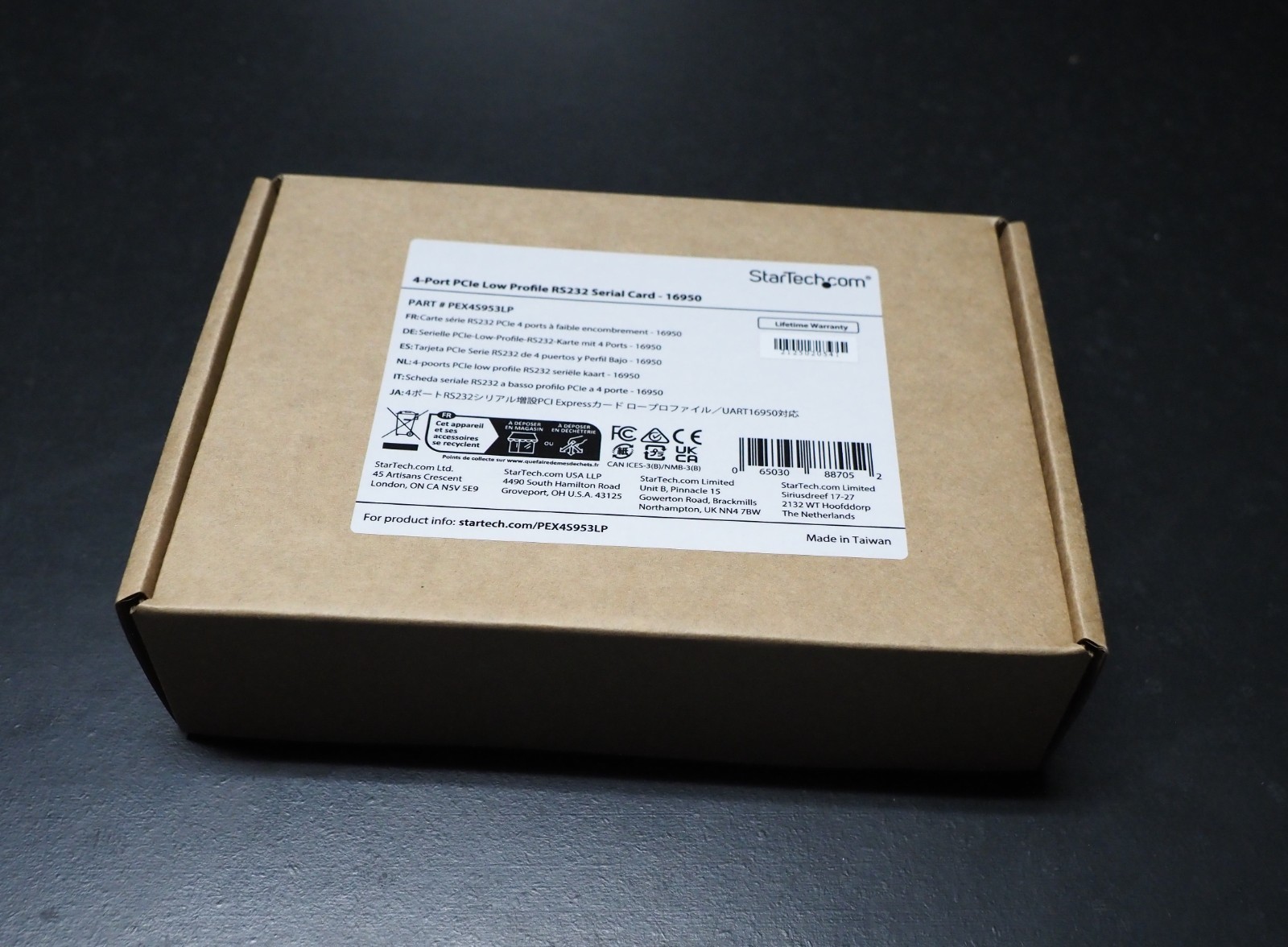

New Sealed in a BoxStarTech.com PEX4S953LP 4-Port PCI Express RS232 Serial Adapter Card
FREE Shipping to Continental USA. No shipping to APO/FPO.No returns
Learn more about STARTECH Serial Adapter Adapter CardDetailsTypePCI Express to Serial Port CardExternal Ports4 - DB-9 (9 pin, D-Sub) MaleInternal Ports1 - LP4 (4 pin; Large Drive Power) Male InputOperating Systems SupportedWindows 7, 8, 8.1, 10Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016Linux 2.4.x to 2.6.x LTS Versions onlySpecificationsHARDWAREBus Type: PCI ExpressCard Type: Standard Profile (LP bracket incl.)Chipset ID: Asix AX99100Interface: SerialPort Style: Integrated on CardPorts: 4PERFORMANCEData Bits: 5, 6, 7, 8, 9FIFO: 256 BytesFlow Control: None, Xon/Xoff, RTS/CTSMax Baud Rate: 921.6 KbpsParity: None, Odd, Even, Space, MarkSerial Protocol: RS-232Stop Bits: 1, 1.5, 2FeaturesFeaturesPCI Express 1.1 compliant replacement to the PEX4S952LP Serial Card, ensuring wide compatibilityAdd RS232 DB9 capabilities without purchasing a new server or computerLow profile bracket comes pre-installed, a full profile is also included for case compatibilitySupports 256-byte depth FIFO cache per transmitter and receiverHigh-speed data transfer rates of up to 921.6Kbps with the ASIX AX99100 ChipsetDimensions & WeightDimensions3" x 2.5" x 0.7"Weight0.58 lb.PackagingPackage Contents1 - 4-Port Low Profile Serial Card1 - 4-Port DB9 Break-out Cable1 - Full Profile Bracket1 - Quick-Start Guide
