Product description

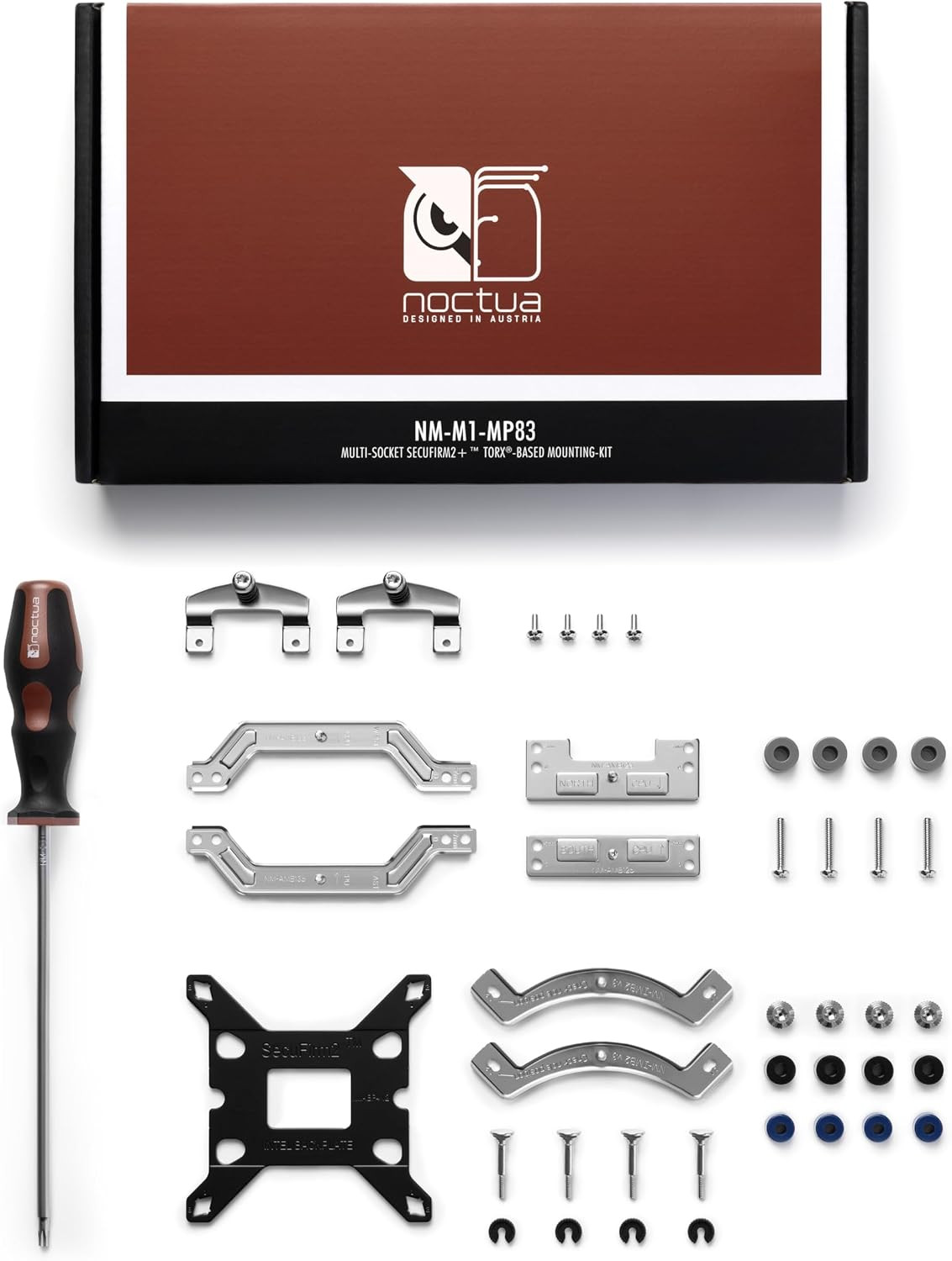

The NM-M1-MP83 is an enthusiast-grade, multi-socket SecuFirm2+ mounting-kit that represents an ideal upgrade for users who want to migrate their Noctua CPU coolers to the new, Torx based SecuFirm2+ standard or to the latest sockets that their cooler did not yet support at the time of purchase. Compatible with a wide range of Noctua CPU coolers with 83mm mounting pitch since 2005 (see detailed compatibility information) and supporting all the latest desktop platforms from AMD (AM5 & AM4) and Intel (LGA1851, LGA1700, LGA1200, LGA115x), the NM-M1-MP83 provides an excellent, future-proof basis for air-cooled premium builds. On AM5, the offset mounting option can significantly improve performance with typical reductions in CPU temperatures of 1-3°C. Like all SecuFirm2 mountings, it combines outstanding reliability, optimal contact pressure and easy, straightforward installation. At the same time, following the new SecuFirm2+ standard, it uses Torx T20 instead of Phillips head screws for even better handling and resistance to wear. With the included magnetic tip NM-SD1 Torx T20 screwdriver, it is perfect for power users who frequently change their setups and demand the new gold standard in convenience and durability under heavy use.
SecuFirm2+ standard with Torx
The new SecuFirm2+ standard uses Torx T20 instead of Phillips head screws. The reduced cam-out of the Torx drive makes it easier to operate, especially in space restricted environments such as pre-assembled PC systems. At the same time, there is less wear on the screw heads, which makes the plus version even more durable and perfect for power users.
For Noctua coolers with 83mm mounting pitch
The NM-M1-MP83 kit is compatible with a wide range of Noctua CPU coolers that use 83mm mounting pitch, whereas heatsinks with 78mm mounting pitch must use the MP78 version. Please refer to our detailed compatibility information to check which kit is right for your cooler.
Multi-socket support
The NM-M1 sets are Noctua’s most comprehensive multi-socket mounting-kits today: Supporting AMD AM5 and AM4 as well as Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 and LGA1156, it’s the ultimate kit for a wide range of upgrading or switching scenarios.
Offset mounting option for AMD AM5
The NM-M1 includes Noctua’s offset mounting bars for AM5 that make it possible to install the cooler shifted towards the south side of the socket by 7mm, thereby achieving better contact pressure right above the Core Complex Die(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C.
NM-SD1 magnetic tip screwdriver
The NM-M1 sets include Noctua’s NM-SD1 Torx T20 head screwdriver that is ideal for all the screws of the kit. Thanks to its magnetic tip and the 150mm long shaft, even remote screws in tightly packed environments such as ITX or HTPC builds are easy to handle without dropping.
Socket Compatibility: Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Scope of Delivery NM-M1-MP83 SecuFirm2+ Torx-based mounting kit, NM-SD1 Torx T20 screwdriver Cooler Compatibility: NH-D15 (SE-AM4, chromax.black), NH-D15S (chromax.black), NH-D14 (SE2011), NH-D9L, NH-C14, NH-C14S, NH-C12P (SE14), NH-L12, NH-U12, NH-U12F, NH-U12P (SE1366, SE2), NH-U9, NH-U9F, NH-U9B (SE2), NH-L9x65 (SE-AM4), NH-P1 Caution: Please note that the NM-M1-MP83 is only compatible with heatsinks that have 83mm mounting pitch (see detailed compatibility information) and that the NM-M1-MP78 kit must be used for heatsinks with 78mm mounting pitch. Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 68 4.7 out of 5 stars 99 4.6 out of 5 stars 18 4.6 out of 5 stars 43 Price $22.95$22.95 $22.95$22.95 $26.95$26.95 $26.95$26.95 Socket Compatibility Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Cooler Compatibility 78mm mounting pitch 83mm mounting pitch 78mm mounting pitch 83mm mounting pitch Colour Silver Silver Black Black
- Mounting upgrade kit for Noctua CPU coolers with 83mm mounting pitch (see detailed compatibility information on Noctua website)
- Premium-grade multi-socket mounting-kit for the latest AMD Ryzen (AM5 & AM4) and Intel Core sockets (LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156)
- SecuFirm2+ standard with Torx T20 head screws for even better convenience and durability under heavy use, NM-SD1 Torx T20 screwdriver included
- Outstanding reliability, optimal contact pressure and easy, straightforward installation; offset mounting option for AM5 can yield typical reductions in CPU temperature of 1-3°C
- Cooler can be installed turned by 90° if space and other components permit
