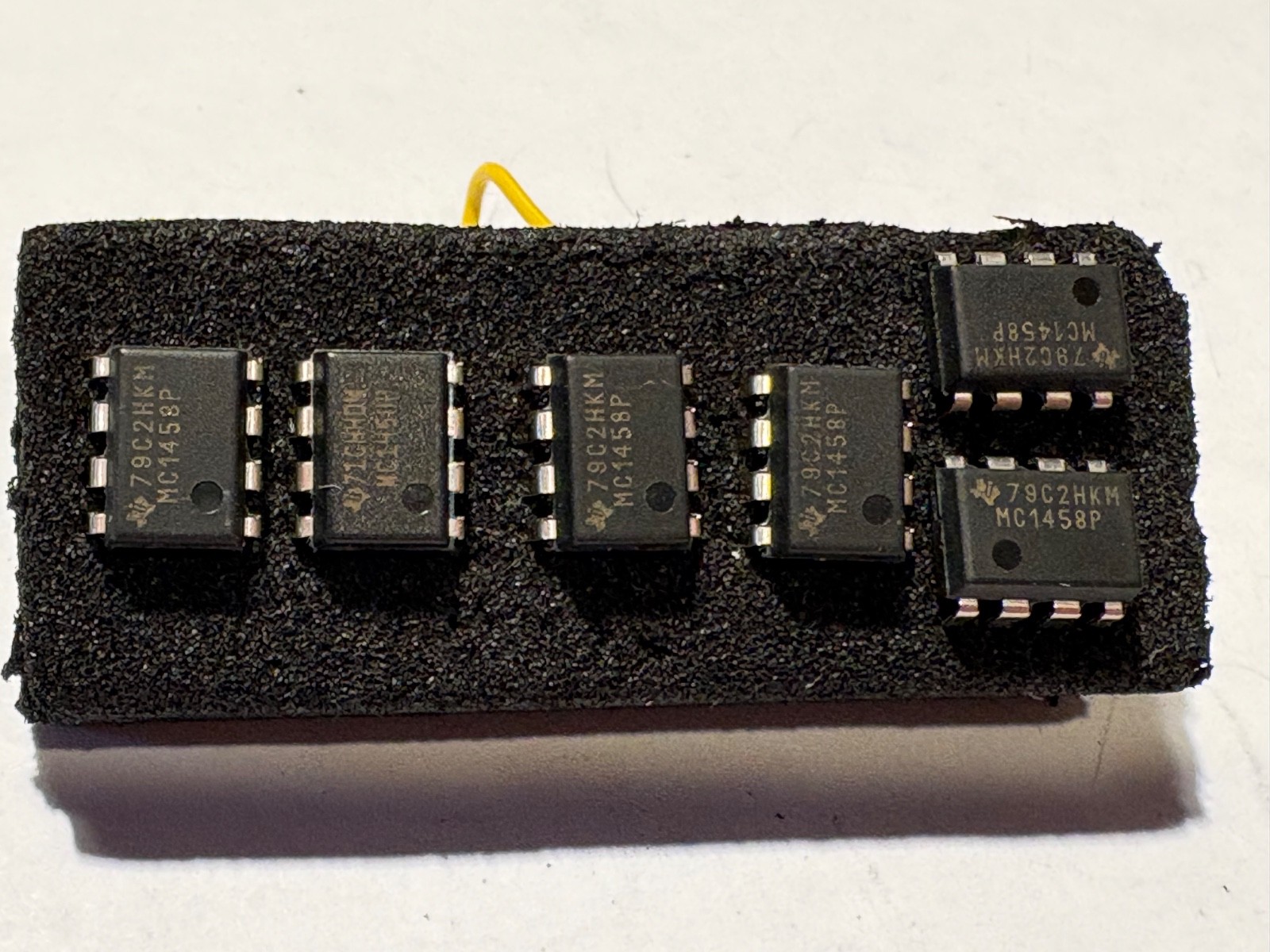

NOS Motorola MC1458P Operational Amplifier 8 Pin Integrated Circuit DIP Package For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
This is aMC1458P OP-AMP Integrated circuit. I purchased it from a now defunct technical school. The price is for one device. I will bundle shipping for multiple purchases. The MC1458P is a popular, general-purposedual operational amplifier (op-amp)in an 8-pin DIP package, offering two independent op-amps on one chip, known for stability, short-circuit protection, and suitability for voltage followers, with key specs including±5V to ±18V supply, 1mV input offset voltage, 80nA input bias current, high common-mode rejection (around 90dB), and internal frequency compensation, making it a reliable classic for audio and general analog circuits.Key Specifications:
Type:Dual General Purpose Operational Amplifier (Op-Amp)
Package:8-Pin Dual In-line Package (DIP)
Supply Voltage:±5V to ±18V
Input Offset Voltage:1.0 mV
Input Bias Current:80 nA
Supply Current:~3.0 mA (total for both channels)
Output Current (per channel):25 mA
Gain (Voltage Gain dB):~106 dB
Common Mode Rejection Ratio (CMRR):~90 dB
Dual Op-Amp:Two op-amps in one package with a common bias network.
Voltage FollowerIdeal:High common-mode input voltage range and no latch-up issues.
Short-Circuit Protected:Internal protection for reliable operation.
Internally Compensated:Stable without external capacitors.
