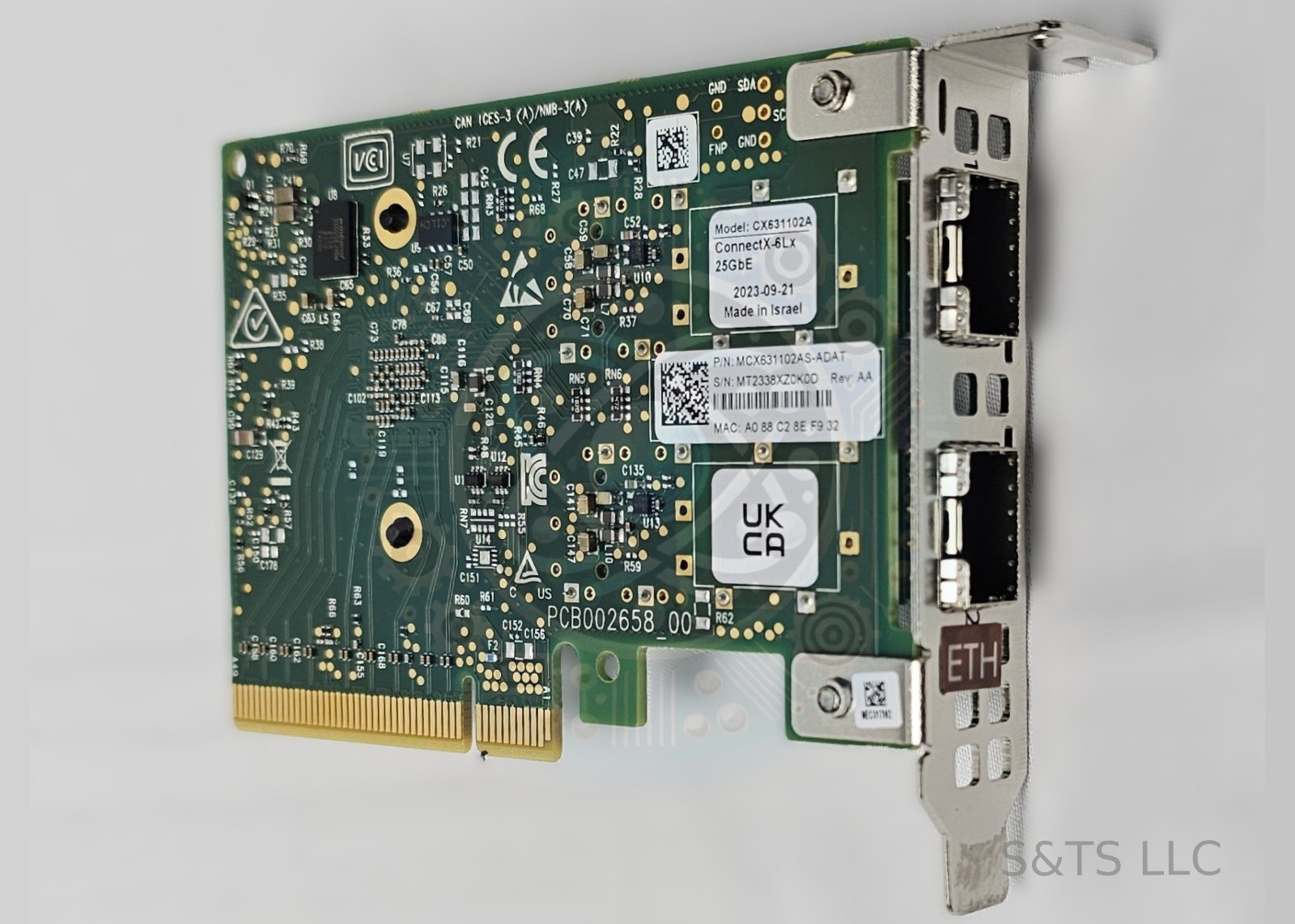

S&TS LLC Visit Store Contact NVIDIA ConnectX-6 Lx Dual-Port 25GbE NIC, Short Bracket, MCX631102AS-ADAT

NVIDIA MCX631102AS-ADAT, Dual-Port SFP28, 1/10/25GbE, PCIe Gen 4.0 x8, tested working

Dual-PortSFP28 1/10/25Gb/s Ethernet PCIe Gen 4.0x8 Short BracketIncluded Genuine NVIDIA (Mellanox) ConnectX-6 Lx dual-port 25GbE adapter (MCX631102AS-ADAT). Dual SFP28 ports supporting 1/10/25 Gb/s Ethernet over a PCIe Gen 3.0/4.0 x8 interface, a great fit for a homelab or workstation upgrade to 25GbE networking. Tested working. Sold individually. SFP+ transceivers are also listed separately if you need optics to go with it. NIC Specifications Identification ManufacturerNVIDIA (Mellanox) ModelConnectX-6 Lx, MCX631102AS-ADAT Specs Ports2 × SFP28 (Dual-Port) ConnectorDual SFP28 Ethernet (copper and optical) Data Rates1 / 10 / 25 Gb/s Ethernet Ethernet Protocols25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, 10GBASE-SR, SGMII, 1000BASE-CX, 1000BASE-KX Host InterfacePCIe Gen 3.0/4.0 x8, 16.0 GT/s SERDES (Gen 2.0 and 1.1 compatible) Dimensions3.79in x 2.71in (96.30mm x 68.90mm) BracketShort bracket only, no full-height bracket included Power & Environmental Power Input Voltage12V Typical Power (Passive Cables)10.73W (PCIe Gen 3.0) / 11.53W (PCIe Gen 4.0) Maximum Power (Passive Cables)12.14W (PCIe Gen 3.0) / 12.94W (PCIe Gen 4.0) Environmental Operating Temperature0C to 55C Non-Operating Temperature-40C to 70C Operating Humidity10% to 85% relative humidity Operating Altitude3050m Regulatory SafetyCB, cTUVus, CE EMCCE, FCC, VCCI, ICES, RCM RoHSRoHS compliant

ⓘ Condition: Open Box. This item shows no signs of wear. It is not in original retail packaging, but will ship securely boxed. No manufacturer's warranty is included. Sold as-is.

ⓘ Tested Working. Verified functional prior to listing.

ⓘ Bracket Notice. This adapter includes the short (low-profile) bracket only. No full-height bracket is included.
