Features

• Two options: Lite (basic set) and Kit (includes extra cables)
• Browser-based KVM (Chrome), no software installation required for either version
• Captures HDMI and simulates keyboard/mouse via USB to target host
• HDMI loop-out port supports up to 4K@30fps for external display
• USB-A port with Host/Target switching for easy file transfer between two computers
• Supports clipboard sharing (copy/paste across devices)
• Aluminum alloy case, compact size: 57x25x23mm
• Low operation latency: 50-100ms

Technical Data

• HDMI input: Up to 4K@30fps
• HDMI loop-out: Up to 4K@30fps
• USB capture resolution: Up to 2K@30fps
• Host interface: USB 3.0 Type-C
• USB switching: Built-in USB-A switch for HOST/TARGET selection
• Virtual devices: Keyboard, mouse (HID)
• Dimensions: 57mm × 25mm × 23mm
• Material & color: Aluminum alloy, Black (both options)
• Lite option:without cables
• Kit option:includes additional HDMI cable, USB cable

Applications

• Headless server/PC maintenance and remote control
• Multi-device collaboration (switch between two computers)
• Live streaming or presentation with screen capture and control
• Home lab, IT troubleshooting, and embedded development
• Quick file transfer between isolated computers

Range of Delivery

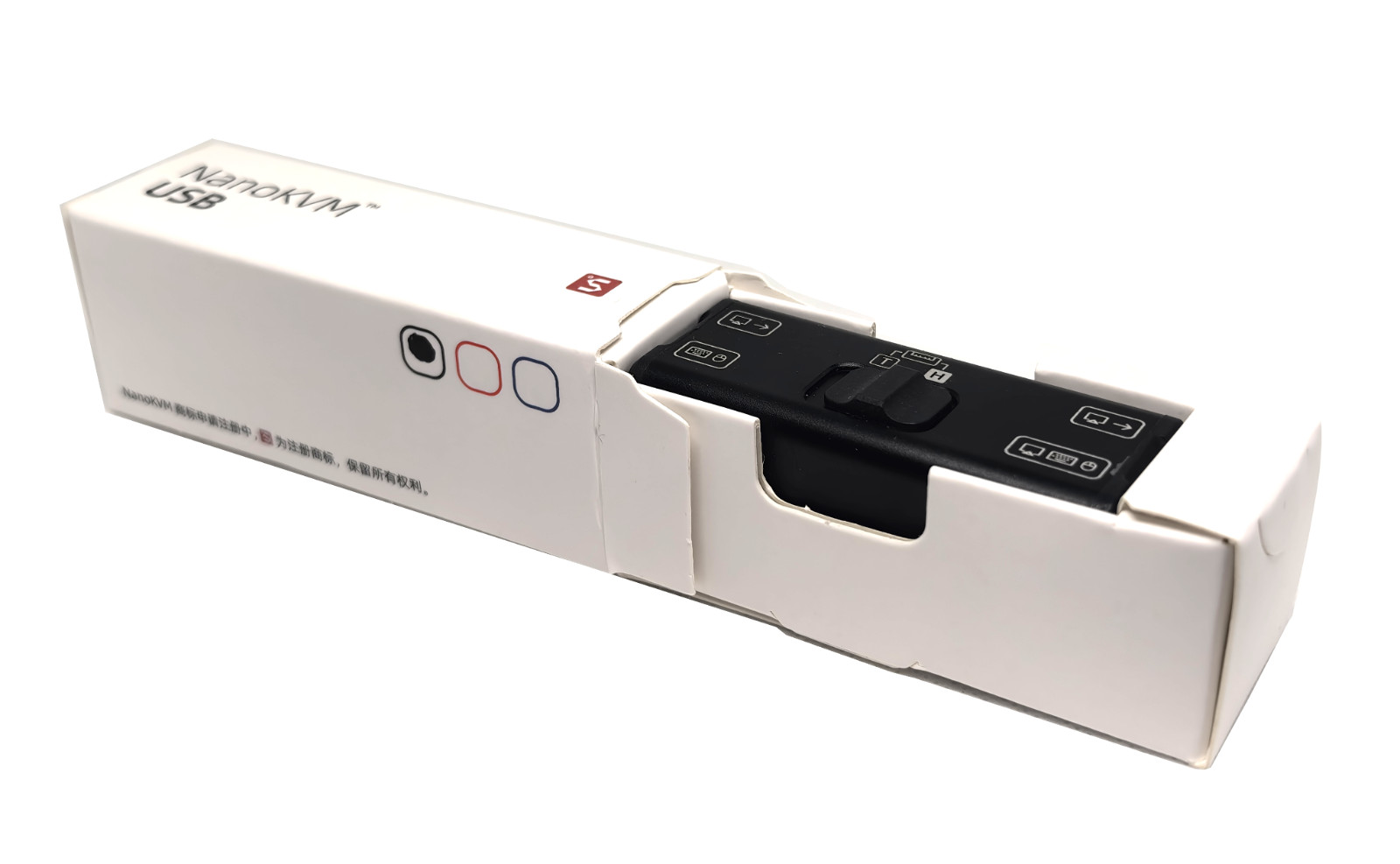

• Lite: 1x NanoKVM USB (Black)
• Set: 1x NanoKVM USB (Black), HDMI cable, USB Cable

Shipment & Refund

• Our basic shipping fee is based on the rates of Deutsche Post for the year 2025.
• Products are to be sent from Germany.
• Order is to be sent via Deutsche POST (e.g. Large Letter in Germany, Warenpost international for order outside of Germany).
• Since there could be multiple products(same or different) in one order and the products can be shipped in one parcel, we will refund you the overpayment of shipping cost.
