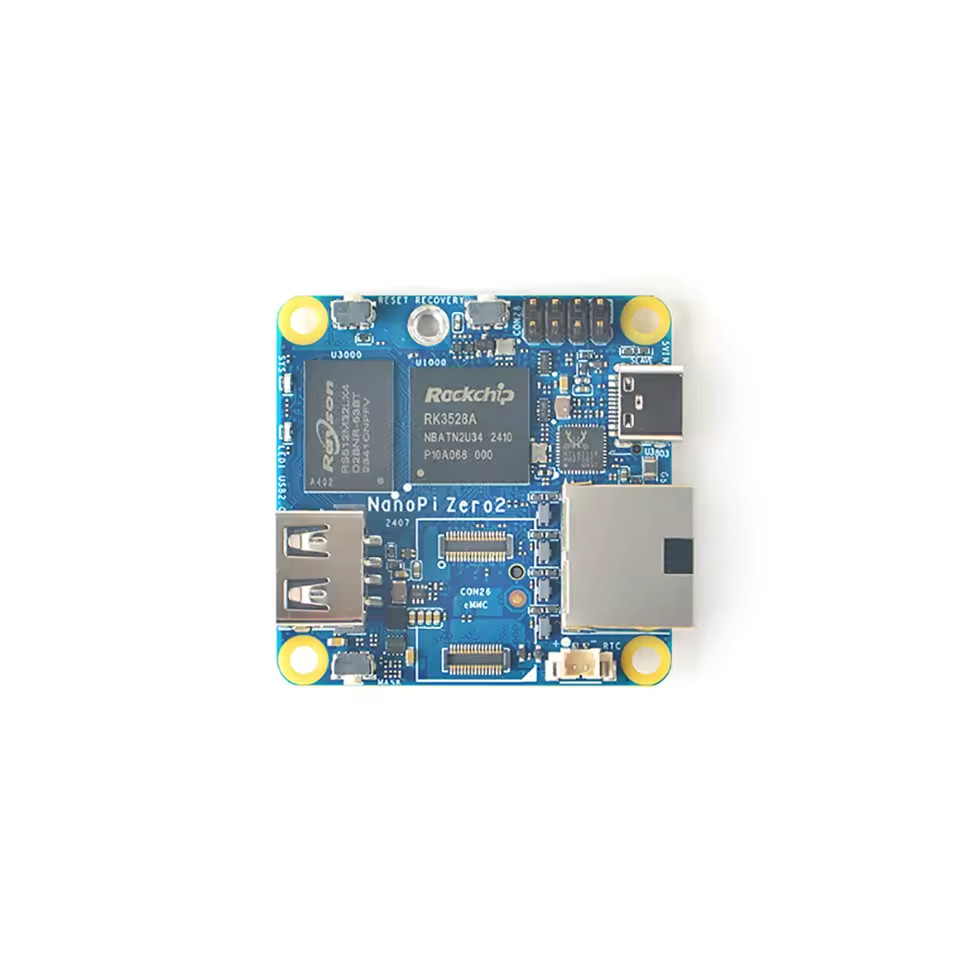

NanoPi Zero2 Mini Development Board 1GB RAMGbps Ethernet Rockchip RK3528A SOC With eMMC Socket 30-pin FPC GPIO Support M.2 WiFi Linux

A super tiny fast GigE computer - NanoPi Zero2

• Rockchip RK3528A
• With eMMC Socket
• Gbps Ethernet
• Support M.2 WiFi

Introduction

The NanoPi-Zero2 is another fun board developed by FriendlyELEC for makers, hobbyists and fans.

Hardware Spec

• SoC: Rockchip RK3528A

  • CPU: Quad-core ARM Cortex-A53

  • GPU: ARM Mali-450 GPU

  • VPU: 4K H265/H264 60fps decoding

• RAM: 1GB/2GB LPDDR4/LPDDR4X

• Flash: Supports eMMC Module

• Ethernet: one Native Gigabit Ethernet

• M.2 Key-E 2230 connector with PCIe 2.1

• USB Ports:

  • One USB 2.0 Host Type-A port

  • One USB 2.0 Device Type-C port for eMMC upgrade

• One microSD Slot

• One 30-pin FPC GPIO connector

• Debug: Debug UART, 3.3V level, 1500000bps

• LEDs: 2 x GPIO Controlled LEDs (SYS & LED1)

• others:

  • 2 Pin 1.27/1.25mm battery connector for Low-power RTC

  • RESET Button, RECOVERY Button, and MASK Button for eMMC upgrade

• Power supply: DC 5V/2A, via USB-C connector or 2.54mm Header

• PCB Size: 45*45*1.2mm

• Temperature measuring range: 0℃ to 80℃
