Nanopi R2S plus Wireless Mini Wifi Router Openwrt, Portable Smart Home Office Ga For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

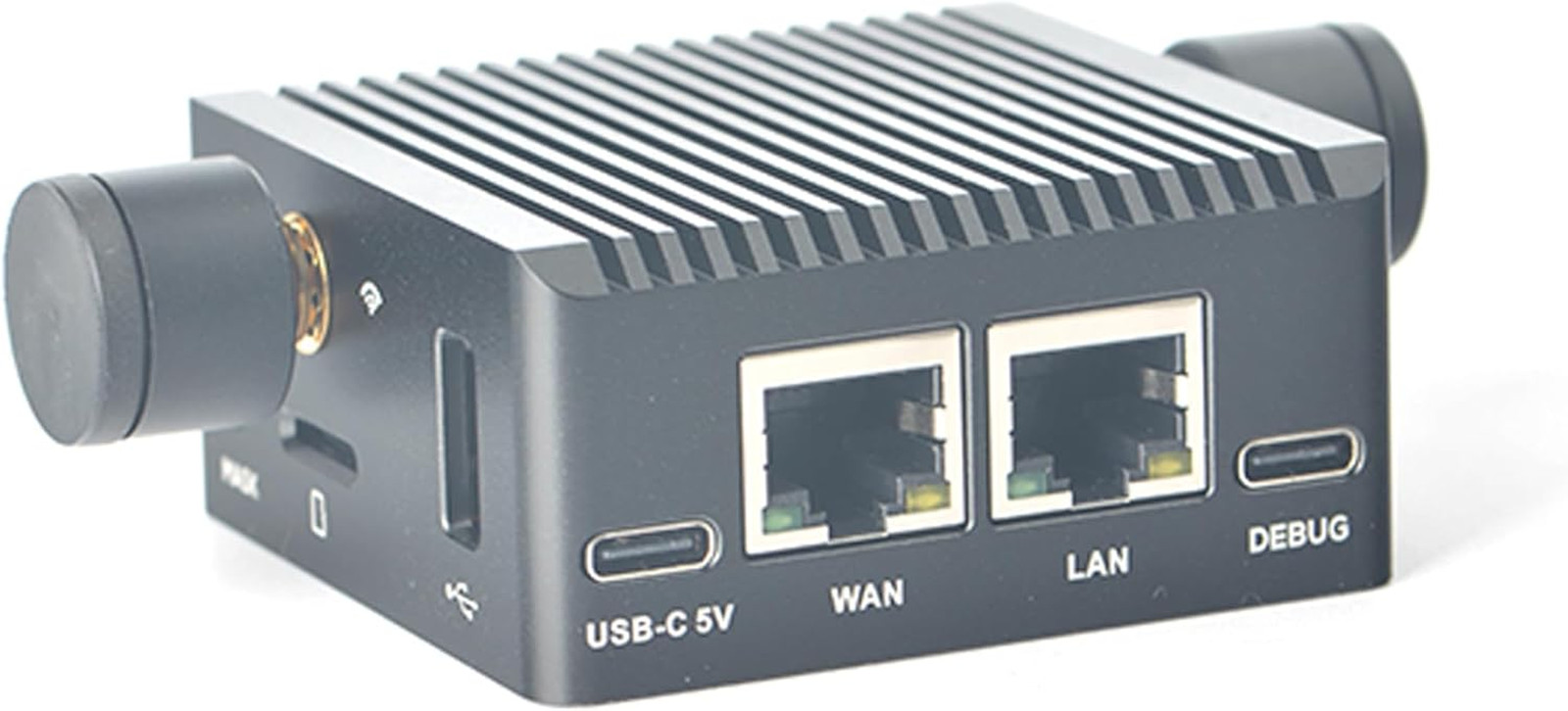

Nanopi R2S plus Wireless Mini Wifi Router Openwrt, Portable Smart Home Office Ga

Price: US $168.39

[Wireless Mini WIFI Router] The NanoPi R2S PLUS is a mini router with edge-computing and dual Gbps Ethernet ports. It adopts Rockchip RK3288 Soc, with 1GB DDR4 RAM and 32GB eMMC 5.1 Flash; CPU: Quad-Core Cortex-A53 CPU, up to 1.5GHz,. And it uses RK805 PMU chip and supports dynamic frequency scaling.
[Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home office gateways, and more. It can also be used as a command line mode for geeks.
[Dual GBPS Ethernet Ports] The NanoPi R2S Plus Wireless Mini Wifi Router has dual Gbps Ethernet ports, support 1x Internal Gbps Ethernet (RTL8211F chip) and 1 x USB3.0 converted Gbps Ethernet (RTL8153B chip), TX rate is 941Mbps, RX rate is 941Mbps. The USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc.
[Larger Expansion interface] NanoPi R2S Plus Computer Wifi Router supports M.2 SDIO WiFi Module (RTL8822CS), it can work in AP mode or wireless repeater mode for wireless range expansion. Also onboard USB 2.0 Host x 2: USB Type A, USB-C Port x2, Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL), MicroSD Slot x1 and etc.
[OS/Software Support] NanoPi R2S Plus Portable Mini Wifi Router suppors TF card booting. It works with FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core etc. These systems are based on Linux-6.1(LTS).It is a good choice for applications that need to be deployed in compact space and need strong networking performance.
[USER MANUAL] Please feel free to email us to get the Datasheet or any questions of this router after you purchased it. How to email us? Click ''WayPonDEV'' store and ask a question.

The NanoPi R2S PLUS is a wireless mini wifi router with edge-computing and dual Gbps Ethernet ports.It uses Rockchip's quad-core A53 RK3328 SoC with powerful Model: Rockchip RK3328

Number of Cores: Quad-Core Cortex-A53

Frequency: 4 x Cortex-A53 Up to 1.4GHz

Memory 1GB DDR4 RAM

Storage: 32GB eMMC 5.1 Flash,

MicroSD x1 for external storage up to 1 x Internal Gbps Ethernet x 1, RTL8211F chip

1 x USB3.0 converted Gbps Ethernet, RTL8153B chip

Optional M.2 SDIO Wi-Fi

USB: USB 2.0 Host x 1: USB Type A

1x USB-C :5V power input and USB update in maskrom mode

1 x USB-C : onboard USB to Debug UART converter, 1500000bps bauds

Pin-header: Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL)

LED: 1 x SYS LED(Red),1 x WAN LED(Green), 1 x LAN LED(Green)
