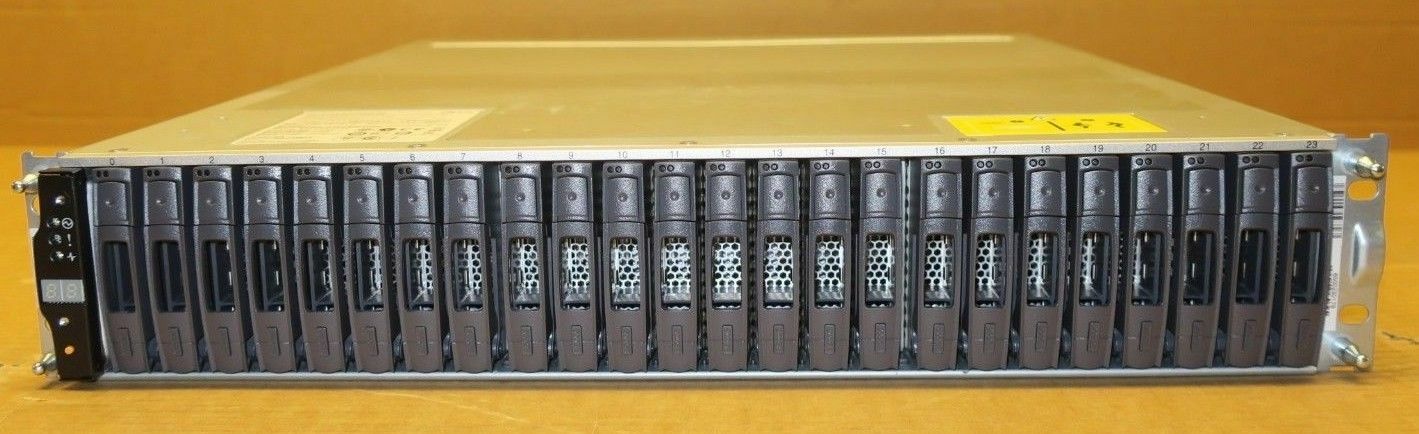

NetApp DS2246 NAJ-1001 Array 24 x 900GB 10K SAS HDD 2x IOM6 Controllers +2x750WModel No: NAJ-1001P/N: DS2246
In Good ConditionIn Full Working OrderTested

Included

• 1 xNetApp DS2246 Disk Array
• 24 x 900GB 10K 2.5" SAS SED Hard Drives HDD SP-422A-R5 X422A-R5
• 2 x 750W Power Supplies - 114-00065
• 2 xIOM6 Controller 111-00190

Manufacturer's SpecificationDS2246Rack units2UDrives per enclosure24Drives per rack unit12Drive form factor2.5" small form factorDrive carrierSingle driveHigh-capacity disk drivesN/A
Self-encrypting drives900GB and 1.8TB at 10K RPM, 800GB and 1.6TB SSD, 800GB SSD + 1.8TB at 10K RPM AES-256, FIPS 140-2 compliantSolid state drives (full and mixed shelf)400GB, 800GB, 1.6TB, 3.8TB, 400GB + 1.2TB, 800GB +1.8TBController SupportFAS2500 series, FAS8000 series, FAS2200 series, FAS/V3200 series[5], FAS/V6200 seriesOptical SAS support✓Power supply/cooling fansDual, hot-pluggable, integrated power supply/fan assembliesAC input power voltage(autoranging, VRMS)100–120V or 200–240VAC input power frequency50–60 HzDC input powerNot availableWeight – fully loaded49 lbs (22.2kg)DimensionsHeight: 3.4 in.(8.5 cm)Width: 19 in.(48.0 cm)Depth: 19.1 in.(48.4 cm)Clearance dimensionsFront–cooling: 6 in. (15.3 cm)Front–maintenance: 12 in.(30.5 cm)Rear–cooling and maintenance: 25 in.(55.9 cm)Operating acoustic noise6.2 bels LwAd(2 PCMs)TemperatureOperating: 50°F to 104°F (10°C to 40°C)Non-operating: -40°F to 158°F (-40°C to 70°C)Relative humidityOperating: 20% to 80% non-condensing;Non-operating: 10 to 95% non-condensingAltitudeOperating: 0 to 10,000 ft (0 to 3,045 m)Non-operating: -1,000 to 40,000 ft (-305 to 12,192 m)
