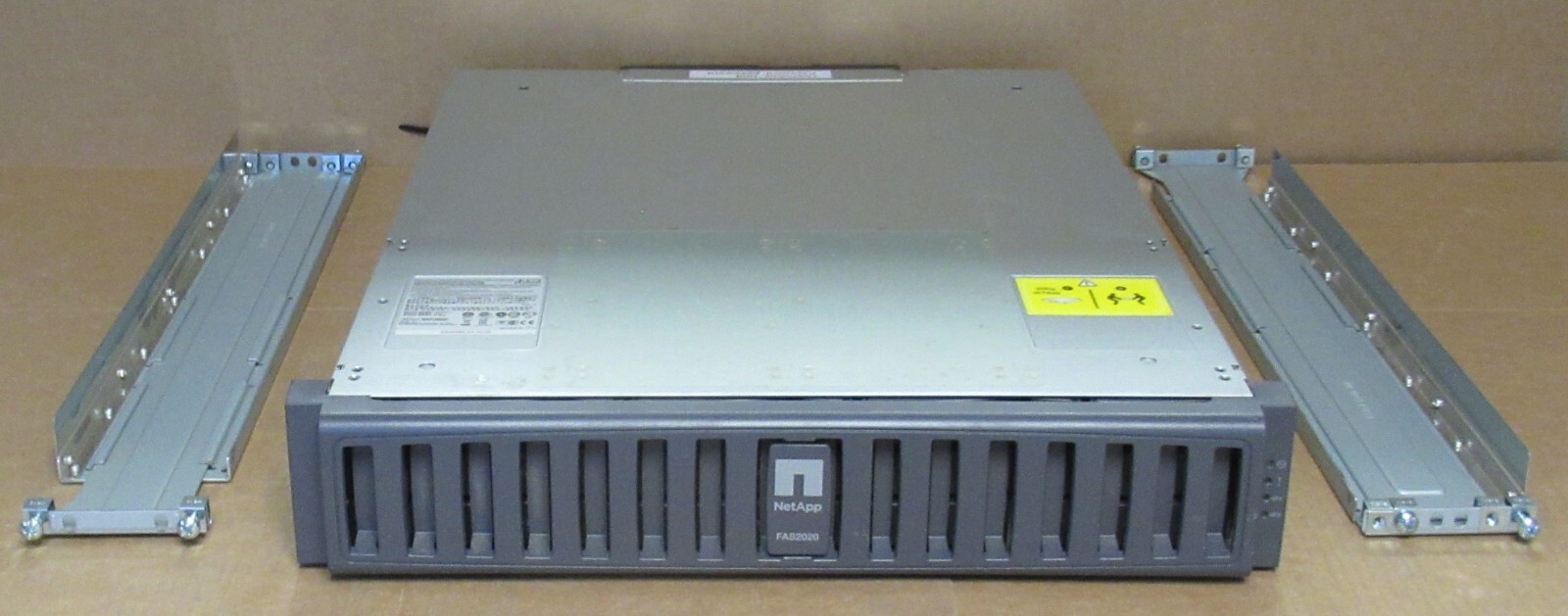

NetApp FAS2020 Filer iSCSI Storage Array Shelf 5.4TB HDD 2x 111-00237 Controller For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

NetApp FAS2020 Filer iSCSI Storage Array Shelf 5.4TB HDD 2x 111-00237 Controller

Price: GB $561.54

NetApp FAS2020 Filer iSCSI Storage Array Shelf 5.4TB HDD 2x 111-00237 Controller

In Good Condition And In Full Working Order
Tested

Front Bezel And Rackmount Rails Included

RunningNetApp Release 7.3.6

Hardware only - No OS, No Licensing

Included

1 xNetApp FAS2020 Filer iSCSI Storage Array Shelf
2 x NetApp FAS2020 X3249A-R5Controller Module - 111-00237
12 x NetApp 450GB 15K 3.5" SAS HDD Hard Drive - 46Y0294
2 xNetApp 675W Power Supply PSU - CP-1103R2

This FAS2000 series offers best-in-class deployment versatility and connectivity to satisfy your data protection, recovery and storage virtualization needs. Whether for primary or secondary storage, the FAS2000 series' versatility accommodates both large distributed enterprises and Midsize Enterprises by offering integrated block- and file-level data access, intelligent management software, and data protection capabilities in a cost-effective package. More importantly, the FAS2000 series as part of the FAS Family helps maintain a single architecture across all tiers of storage.

The FAS2020 is a 2U rack-mountable storage server in which the system enclosure contains the controller. In addition, the FAS2020 provides 10/100/1000Base- T Ethernet and 4/2/1 Gigabit Fibre Channel SAN connectivity and runs I-SCSI protocol. The FAS2020 is easily expandable up to 68TB and can be clustered internally with an additional controller module.

Boot Log:

*> sysconfig -v
NetAppRelease 7.3.6: Thu Jul 7 02:02:45 PDT2011
System ID: 0142240907 (); partner ID:0142242107 ()
System Serial Number: 500000204012 ()
System Rev: G0
SystemStorage Configuration: Single-Path HA
System ACPConnectivity: NA
slot 0:System Board 2198 MHz (System Board XIV H0)
Model Name: FAS2020
Part Number: 110-00049
Revision: H0
Serial Number: 8023179
BIOS version: 3.0
Processors: 1
Memory Size: 1024 MB
NVMEM Size: 128 MB of MainMemory Used
CMOS RAM Status: OK
Controller: A
slot 0:Dual 10/100/1000 Ethernet Controller G20
e0aMAC Address: e0bMAC Address: Device Type: Rev 6
slot 0:Interconnect HBA: Mellanox IB MT25204
GUID: 0x2c902802317900 LID:0xac8b Remote LID: 0xb13b
Firmware rev: 1.0.800
Hardware rev: 160
Command rev: 1
slot 0: FCHost Adapter 0a (QLogic 2432 rev. 2, L-port, <OFFLINE (hard)>)
Firmware rev: 4.5.2
Host Loop Id: 0
FCNode Name: 5:00a:098000:2991ca
SFFVendor:
SFFPart Number:
SFFSerial Number:
SFFCapabilities:
Link Data Rate: 1 Gbit
slot 0: FCHost Adapter 0b (QLogic 2432 rev. 2, L-port, <OFFLINE (hard)>)
Firmware rev: 4.5.2
Host Loop Id: 0
FCNode Name: 5:00a:098100:2991ca
SFFVendor:
SFFPart Number:
SFFSerial Number:
SFFCapabilities:
Link Data Rate: 1 Gbit
slot 0: SASHost Adapter 0c (LSI Logic 1068E rev. B2, SAS, <UP>)
Firmware rev: 1.31.02.00
Base WWN:f:087a6c:8b00000:00
PhyState: [0] Enabled, 3.0 Gb/s
[1] Enabled,3.0 Gb/s
[2] Enabled,3.0 Gb/s
[3] Enabled,3.0 Gb/s
ID Vendor Model FW Size
00.0 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.1 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.2 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.3 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.4 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.5 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.6 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.7 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.8 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.9 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.10: NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.11: NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
Shelf 0: ESAS Firmware rev. SAS A: 05 SAS B: 05
slot 0:ATA/IDE Adapter 0e (0x000001f0)
0e.0 STEC NACF256MM1U-B11 01/17/07 245MB 512B/sect(STI1MQB611070091111)
BaseboardManagement Controller:
Firmware Version: 1.2
IPMI version: 2.0
DHCP: off
BMCMAC address: 00:a0:98:28:0f:46
IPaddress: 10.10.50.2
IPmask: 255.255.255.0
Gateway IP address: 10.10.50.253
BMCARP interval: 10 seconds
BMChas (1) user: naroot
ASUP enabled: on
ASUP mailhost: 0.0.0.0
ASUP from: postmaster
ASUP recipients:[email removed by ]
Uptime: 0 Days,00:17:55
*> sysconfig -v
NetAppRelease 7.3.6: Thu Jul 7 02:02:45 PDT2011
System ID: 0142242107 (); partner ID:0142240907 ()
System Serial Number: 500000204000 ()
System Rev: G0
SystemStorage Configuration: Single-Path HA
System ACPConnectivity: NA
slot 0:System Board 2198 MHz (System Board XIV H0)
Model Name: FAS2020
Part Number: 110-00049
Revision: H0
Serial Number: 8024379
BIOS version: 3.0
Processors: 1
Memory Size: 1024 MB
NVMEM Size: 128 MB of MainMemory Used
CMOS RAM Status: OK
Controller: B
slot 0:Dual 10/100/1000 Ethernet Controller G20
e0aMAC Address: e0bMAC Address: Device Type: Rev 6
slot 0:Interconnect HBA: Mellanox IB MT25204
GUID: 0x2c902802437900 LID:0xb13b Remote LID: 0xac8b
Firmware rev: 1.0.800
Hardware rev: 160
Command rev: 1
slot 0: FCHost Adapter 0a (QLogic 2432 rev. 2, L-port, <OFFLINE (hard)>)
Firmware rev: 4.5.2
Host Loop Id: 0
FCNode Name: 5:00a:098000:2aec03
SFFVendor:
SFFPart Number:
SFFSerial Number:
SFFCapabilities:
Link Data Rate: 1 Gbit
slot 0: FCHost Adapter 0b (QLogic 2432 rev. 2, L-port, <OFFLINE (hard)>)
Firmware rev: 4.5.2
Host Loop Id: 0
FCNode Name: 5:00a:098100:2aec03
SFFVendor:
SFFPart Number:
SFFSerial Number:
SFFCapabilities:
Link Data Rate: 1 Gbit
slot 0: SASHost Adapter 0c (LSI Logic 1068E rev. B2, SAS, <UP>)
Firmware rev: 1.31.02.00
Base WWN:f:087a71:3b00000:00
PhyState: [0] Enabled, 3.0 Gb/s
[1] Enabled,3.0 Gb/s
[2] Enabled,3.0 Gb/s
[3] Enabled,3.0 Gb/s
ID Vendor Model FW Size
00.0 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.1 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.2 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.3 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.4 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.5 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.6 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.7 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.8 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.9 : NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.10: NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
00.11: NETAPP X289_S15K7420A15NA00 418.0GB (860480768 520B/sect)
Shelf 0: ESAS Firmware rev. SAS A: 05 SAS B: 05
slot 0:ATA/IDE Adapter 0e (0x000001f0)
0e.0 STEC NACF256MM1U-B11 01/17/07 245MB 512B/sect(STI1MMM511070095908)
BaseboardManagement Controller:
Firmware Version: 1.2
IPMI version: 2.0
DHCP: off
BMCMAC address: 00:a0:98:2b:93:8e
IPaddress: 10.10.50.1
IPmask: 255.255.255.0
Gateway IP address: 10.10.50.253
BMCARP interval: 10 seconds
BMChas (1) user: naroot
ASUP enabled: on
ASUP mailhost: 0.0.0.0
ASUP from: postmaster
ASUP recipients:[email removed by ]
Uptime: 0 Days,00:18:45
*> storage show disk
DISKSHELF BAY SERIALVENDOR MODEL REV
--------------------- --------- ---------------- ------------------ ----
0c.00.00 0 6SK0NDY70000N144BDYL NETAPP X289_S15K7 NA00
0c.00.10 1 6SK0NE270000N1451JV9 NETAPP X289_S15K7 NA00
0c.00.20 2 6SK0MKE90000N1455V3J NETAPP X289_S15K7 NA00
0c.00.30 3 6SK0MHD20000N144CHU7 NETAPP X289_S15K7 NA00
0c.00.40 4 6SK0ND1H0000N144375Z NETAPP X289_S15K7 NA00
0c.00.50 5 6SK0MJDT0000N144CJ46 NETAPP X289_S15K7 NA00
0c.00.60 6 6SK0NCZT0000N144377C NETAPP X289_S15K7 NA00
0c.00.70 7 6SK0NDNQ0000N1448NTK NETAPP X289_S15K7 NA00
0c.00.80 8 6SK0MNV50000N1448JK8 NETAPP X289_S15K7 NA00
0c.00.90 9 6SK0MFJZ0000N1448L3B NETAPP X289_S15K7 NA00
0c.00.100 10 6SK0MLNJ0000N1450BYV NETAPP X289_S15K7 NA00
0c.00.110 11 6SK0ND7X0000N144377E NETAPP X289_S15K7 NA00
*> disk show -n
Local System ID: 142240907DISK OWNER POOL SERIAL NUMBER
------------ ------------- ------------------
0c.00.4 NotOwned NONE 6SK0ND1H0000N144375Z
0c.00.6 NotOwned NONE 6SK0NCZT0000N144377C
0c.00.8 NotOwned NONE 6SK0MNV50000N1448JK8
0c.00.9 NotOwned NONE 6SK0MFJZ0000N1448L3B
0c.00.10 NotOwned NONE 6SK0MLNJ0000N1450BYV
0c.00.7 NotOwned NONE 6SK0NDNQ0000N1448NTK
0c.00.2 NotOwned NONE 6SK0MKE90000N1455V3J
0c.00.11 NotOwned NONE 6SK0ND7X0000N144377E
0c.00.0 NotOwned NONE 6SK0NDY70000N144BDYL
0c.00.1 NotOwned NONE 6SK0NE270000N1451JV9
0c.00.3 NotOwned NONE 6SK0MHD20000N144CHU7
0c.00.5 NotOwned NONE 6SK0MJDT0000N144CJ46
2> environment status
Voltage ok
Temperature ok
Power Supplies OutVoltage ok
Battery: Sensor Batt Run Time critical low: currentcustom is 17 Hour, critical low is 75 Hour
Power Supply 1 ok
Power Supply 2 ok
Environmentfor channel 0c
Number ofshelves monitored: 1 enabled: yes
Environmental failure on shelves on this channel? no Channel: 0c
Shelf: 0
SES devicepath: local access: 0c.00.99
Moduletype: ESAS; monitoring is active
Shelfstatus: normal condition
SESConfiguration, shelf 0:
vendoridentification=NETAPP
productidentification=DS12-ESAS
productrevision level=0505
Vendor-specific information:
ProductSerial Number: NTAPLGH-11200DA714
Statusreads attempted: 25; failed: 0
Controlwrites attempted: 2; failed: 0
Shelf bayswith disk devices installed:
11, 10,9, 8, 7, 6, 5, 4, 3, 2, 1, 0
witherror: none
PowerSupply installed element list: 1, 2; with error: none
PowerSupply information by element:
[1]Serial number: NTAPDNH-1118NW70PH Partnumber: <N/A>
Type:<N/A>
Firmware version: Y140 Swaps: 0
[2]Serial number: NTAPDNH-1118NW70PF Partnumber: <N/A>
Type:<N/A>
Firmware version: Y140 Swaps: 0
VoltageSensor installed element list: 1, 2, 3, 4, 5, 6; with error: none
Shelfvoltages by element:
[1]12.190 Volts Normal voltage range
[2] 5.110Volts Normal voltage range
[3] 3.550Volts Normal voltage range
[4]12.160 Volts Normal voltage range
[5] 5.130Volts Normal voltage range
[6] 3.570Volts Normal voltage range
CurrentSensor installed element list: 1, 2, 3, 4; with error: none
Shelfcurrents by element:
[1] 7200mA Normal current range
[2] 2930mA Normal current range
[3] 7200mA Normal current range
[4] 2890mA Normal current range
CoolingUnit installed element list: 1, 2; with error: none
CoolingUnits by element:
[1] 5560RPM
[2] 5560RPM
TemperatureSensor installed element list: 1, 2, 3, 4; with error: none
Shelftemperatures by element:
[1] 33 C(91 F) Normal temperature range
[2] 32 C(89 F) Normal temperature range
[3] 33 C(91 F) Normal temperature range
[4] 36 C(96 F) Normal temperature range
Temperaturethresholds by element:
[1] Highcritical: 62 C (143 F); high warning 54 C (129 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
[2] Highcritical: 62 C (143 F); high warning 54 C (129 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
[3] Highcritical: 62 C (143 F); high warning 55 C (131 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
[4] Highcritical: 62 C (143 F); high warning 55 C (131 F)
Lowcritical: 0C (32 F); low warning 10 C(50 F)
ESElectronics installed element list: 1, 2; with error: none
ESElectronics reporting element: 1
SASExpander Module installed element list: 1, 2; with error: none
SASExpander master module: 2 Shelfmapping (shelf-assigned addresses) for channel 0c:
Shelf 0: 1110 9 87 6 54 3 21 02> license
a_sis not licensed
cifs not licensed
cluster not licensed
cluster_remote not licensed
compression not licensed
disk_sanitization not licensed
fcp not licensed
flash_cache not licensed
flex_clone not licensed
flex_scale not licensed
flexcache_nfs not licensed
gateway_hitachi not licensed
http not licensed
iscsi not licensed
multistore not licensed
nearstore_option not licensed
nfs not licensed
operations_manager not licensed
protection_manager not licensed
provisioning_manager not licensed
smdomino not licensed
smsql not licensed
snapdrive_unix not licensed
snapdrive_windows not licensed
snaplock not licensed
snaplock_enterprise not licensed
snapmanager_hyperv not licensed
snapmanager_oracle not licensed
snapmanager_sap not licensed
snapmanager_sharepoint not licensed
snapmanagerexchange not licensed
snapmirror not licensed
snapmirror_sync not licensed
snapmover not licensed
snaprestore not licensed
snapvalidator not licensed
sv_applications_pri not licensed
sv_exchange_pri not licensed
sv_linux_pri not licensed
sv_marketing_pri not licensed
sv_ontap_pri not licensed
sv_ontap_sec not licensed
sv_oracle_pri not licensed
sv_sharepoint_pri not licensed
sv_sql_pri not licensed
sv_unix_pri not licensed
sv_vi_pri not licensed
sv_vmware_pri not licensed
sv_windows_ofm_pri not licensed
sv_windows_pri not licensed
syncmirror_local not licensed
v-series not licensed
vld not licensed
