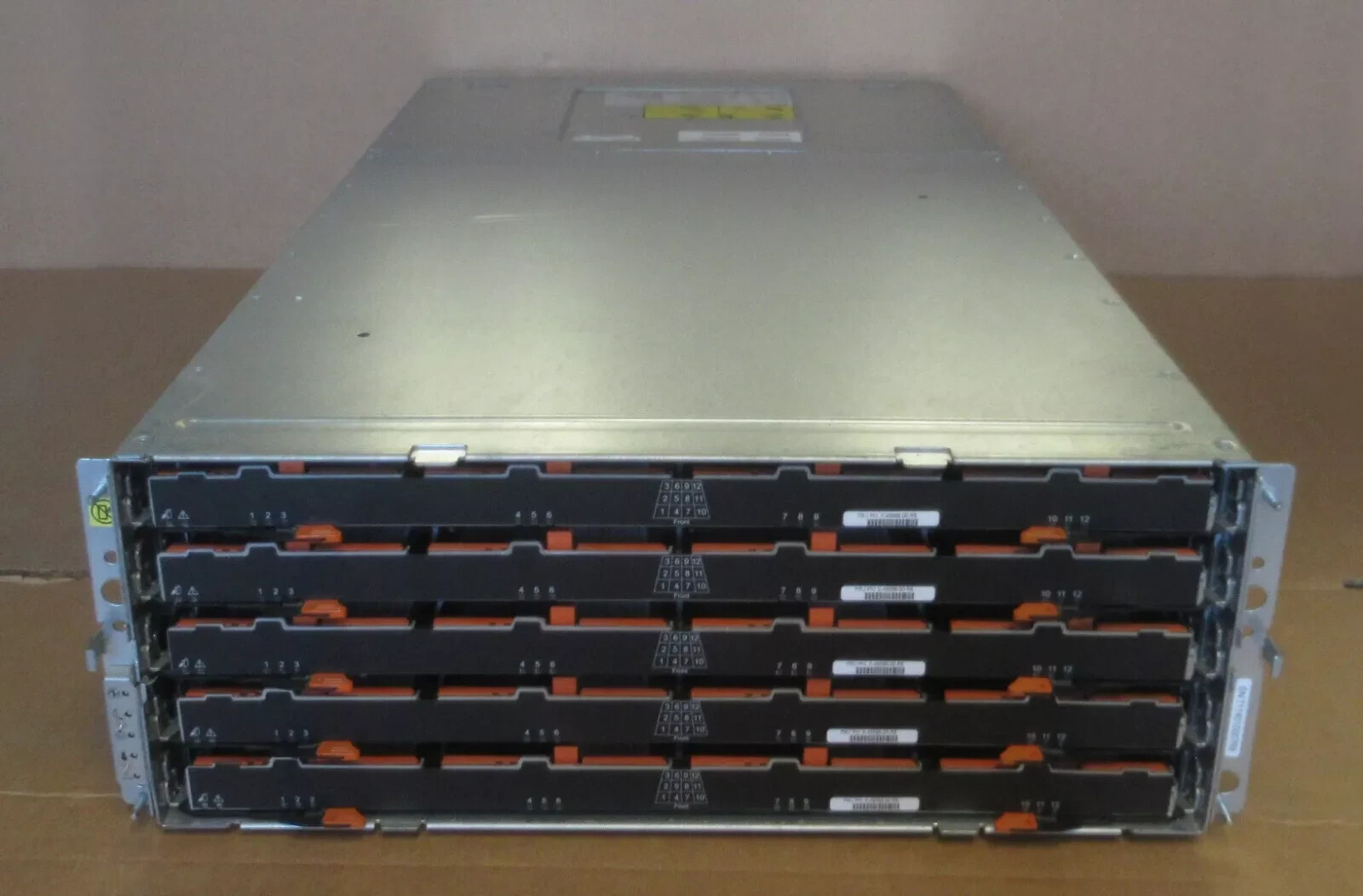

Netapp DE6600 Storage Enclosure 60x 3.5" HDD Bay 2x ESM E-X30030A-R6 Controller Model: 0892 In Good Condition, Full Working OrderTested Included: - 1 x Netapp DE6600 Storage Enclosure 4U Enclosure With:
- 5 x 12-Bay 3.5" Hard Drive Drawers - X-48566-00 (No Caddies Included)
- 2 x ESM Controller Module - E-X30030A-R6
- 2 x 1755W Power Supply PSU - X-48564-00
- 2 x Fan Modules - X-48565-00
- No Disks factor 4U/60 drives:(both 2.5" and 3.5")
- Maximum raw capacity:600TB, 3.8PB with expansion shelves (using 10TB drives)
- Maximum drives:360 with 60-drive shelves, 384 with mixed shelves, 120 SSDs (25 SSDs per 60-drive shelf)
- Drives supported:
- 4/6TB NL-SAS 7.2K FDE/non-FDE
- 8/10TB NL-SAS 7.2K non-FDE
- 6/10TB NL-SAS 7.2K FIPS
- 900GB 1.2/1.8TB SAS 10K FDE/non-FDE
- 1.8TB SAS 10K FIPS
- 800GB, 1.6/3.2TB SSD non-FDE
- 800GB SSD FDE
- 1.6TB SSD FIPS
- DC power:Not available
- System memory:24GB/96GB2
- Host I/O ports:
- 8-port 12Gb SAS
- 8-port 10Gb iSCSI
- Optical 8-port 16Gb FC
- 4-port 56Gb (FDR) InfiniBand
- Operating system and system management:
- SANtricity OS 8.30
- SANtricity Storage Manager 11.30
- High-availability features:
- Dual active controller with automated I/O path failover
- Auto–load balancing and path connectivity monitoring
- Dynamic Disk Pools technology and traditional RAID levels 0, 1, 5, 6, and 10
- Redundant, hot-swappable storage controllers, drives, power supplies, and fans
- Automatic rebuild after a drive failure
- Mirrored data cache with battery-backed destage to flash
- Proactive drive health monitoring that identifies problems before they create issues
- Host operating systems:Microsoft Windows Server, Red Hat Enterprise Linux, Novell SUSE Linux Enterprise Server, Apple macOS, Oracle Solaris, HPE HP-UX,CentOS Linux, Oracle Enterprise Linux, IBM AIX, VMware ESX
- System capabilities:
- Data assurance (T10-PI)
- Dynamic volume expansion
- Dynamic capacity expansion and contraction
- Dynamic RAID-level migration
- Dynamic segment-size migration
- System event monitor
- NetApp AutoSupport automatic support system
- Online SANtricity OS upgrades and drive firmware upgrades
- VMware vSphere Storage APIs—Array Integration
- Microsoft Windows Offloaded Data Transfer
- Application plug-ins:
- NetApp SANtricity Plug-In for VMware vCenter
- NetApp SANtricity Performance App for Splunk Enterprise
- NetApp SANtricity Plug-In for Nagios
- Open management:
- NetApp SANtricity OpenStack Cinder
- NetApp SANtricity Web Services Proxy (REST and SYMbol Web)
- NetApp PowerShell Toolkit
- System maximums:
- Hosts/partitions: 512
- Volumes: 2,048
- Snapshot copies: 2,048
- Mirrors: 128
