Designed for SMB with Cost-Effective10GBASE-T Connectivity andAdvanced L2+/Layer 3 Lite Features
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit Smart switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost.

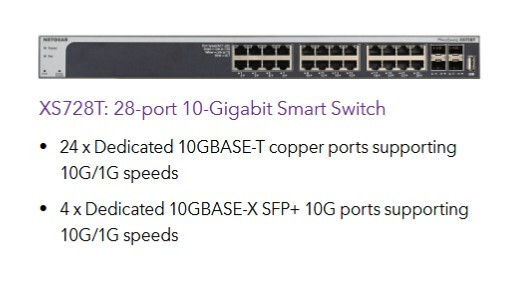

The NETGEAR XS708T, XS712T, XS716T, XS728T, and XS748T are powerful Smart switches that come with 8, 12, 16, 24, or 44 10-Gigabit Copper ports and either 2 shared (Combo) Copper/SFP+ ports (XS708T/XS712Tv2/XS716T) or 4 additional dedicated SFP+ ports (XS728T/XS748T) for 10G fiber links. The NETGEAR 10-Gigabit Smart switches are purposely designed as a cost effective way to provide 10G connections to 10G-capable servers.They can be used at the “center of a small business network” or as an aggregation/access switch in a larger organizationincluding workgroup access, connectingto a 10-Gigabit NETGEAR fully managedswitch on one end and extending the 10Gconnections to the edge. The XS708T,XS712T and XS716T are also ideal forsmaller workgroups that need highbandwidth for sharing, collaborating,editing, and publishing high-densitycontent like video or animation.Highlights
The 10G Smart switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include:
• Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
• Advanced QoS (Quality of Service) with L2/L3/L4 awareness and 8 priority queues
• IPv4 and IPv6 static routing• Private VLAN
• Dynamic VLAN assignment
• IGMP and MLD snooping
• Advanced Security
• IPv6 for management, QoS and ACL
10-Gigabit Transition with BASE-T
• 10GBASE-T, like other BASE-T technologies, uses the standard RJ45 Ethernet jack• It is backward compatible, auto-negotiating between higher and lower speeds – thereby not forcing an all-at-once network equipment upgrade
• Cat5/Cat5e are supported for Gigabit speeds up to 100 meters
• Cat6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters
• Cat6a or newer Cat7 cabling will allow for up to 100 meter 10GBASE-T connections
Designed as Core Switch for SMB Network
• 10G connection to 10G-capable servers and network storage
• Powerful L2+/Layer 3 Lite features make them the most cost-effective core switches for SMB and virtualization environment
• Future-proof your network with10G bandwidth, advanced traffic management and comprehensive IPv6 support
• Static routing helps to route internal traffic for more efficient use of network resources
• IGMP and MLD snooping provide advanced multicast filtering
Act as Aggregation Switch for Medium Sized Networks
• 10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
• 10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
• Up to eight 10-Gigabit Ethernet links can be aggregated into a virtual 80-Gbps connection
• 10-Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently
Smart IT, not Big IT
• Easy-to-use Web browser-based management GUI makes setup and management simple
• Standards-based technology ensures interoperability with any standards-based devices in the existing network
• Dual firmware images improve reliability and uptime to your network
**Notice**Unit is sold as-is without warranty. Does not include original packaging. Unit validation testing is available only upon submitting an offer to purchase and will be provided before shipping with tracking and insurance.
