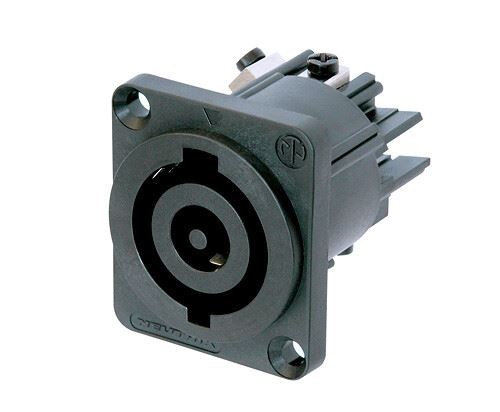

Made to OrderLifetime Support30 Day Money Back GuaranteeNeutrik NAC3MP-HC powerCON 32a Chassis Connector. Power-Input Connection

-UK Deliveries-
Royal Mail 48 is a 4-5 day service. Please allow 1-2 days for dispatch, and 2-3 days for delivery. First Class and Next Day delivery methods ship the same day if ordered before 12pm Noon, Monday to Friday.

-International Deliveries-
Please contact us before purchasing longer length cables (10m+) as the shipping prices may vary. This includes Channel Islands, Northern Ireland, Isle of Wight and Scottish HighlandsItem DescriptionTech SpecsItem Description

Conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.



Features & Benefits

• 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
• Premating contact for protective earth
• Fast and easy locking system to prevent unintentional disengagement
• Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
• Extremely robust and reliable
• VDE, UL, cUL and JET approved
• IEC 62368-1 compliant up to 4000 W



Technical Information

• Title - NAC3MP-HC
• Connection Type - powerCON
• Gender - male

Electrical

• Contact resistance - ≤ 3 mΩ
• Dielectric strength - 4 kVdc / 2.8 kVac
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 32 A (30A for cUL)
• Rated voltage - 250 V ac
• Maximal Wattage according to IEC 62368-1 - 4000 W rms

Mechanical

• Lifetime - > 1000 mating cycles
• Wiresize - 2.5 - 6 mm²
• Wiresize - 14 - 10 AWG
• Wiring - screw terminals
• Locking device - Quick Lock

Material

• Contact plating - 4 µm Ag
• Contacts - Bronze (CuSn0.2)
• Locking element - Steel Ck67
• Shell - Polyamide (PA 6.6 25 % GR)

Environmental

• Flammability - UL 94 V-0
• Protection class - IP 20 (mated)
• Safety Requirements - EN/IEC 61984
• Solderability - Complies with IEC 68-2-20
• Temperature range - -25 °C to +70 °C
