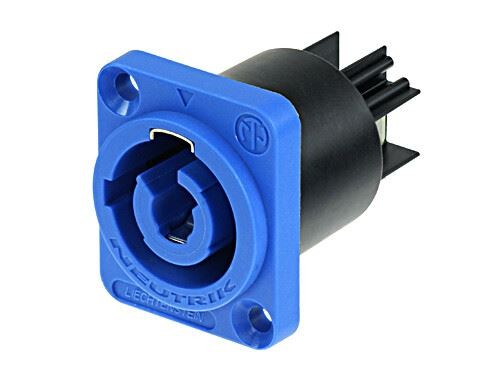

Made to OrderLifetime Support30 Day Money Back GuaranteeNeutrik NAC3MPA-1 Input Powercon Chassis Panel Mount. 240v, 20 amp Rated

-UK Deliveries-
Royal Mail 48 is a 4-5 day service. Please allow 1-2 days for dispatch, and 2-3 days for delivery. First Class and Next Day delivery methods ship the same day if ordered before 12pm Noon, Monday to Friday.

-International Deliveries-
Please contact us before purchasing longer length cables (10m+) as the shipping prices may vary. This includes Channel Islands, Northern Ireland, Isle of Wight and Scottish HighlandsItem DescriptionTech SpecsItem Description

NAC3MPA-1

Chassis connector, power-in, 3/16'' flat tab terminals, blue



Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!



Features & Benefits

• Locking 20 A / 250 V ac appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• User friendly latch design for easy handling
• UL, cUL recognized components
  VDE certified
• Branded with unique hologram - guarantees genuine and authentic Neutrik product



Title - NAC3MPA-1

Gender - male



Electrical

Contact resistance - ≤ 3 mΩ

Dielectric strength - 4 kVdc / 2.8 kVac

Insulation resistance - > 0.1 GΩ (after damp heat test IEC 68-2-30)

Number of electronical contacts - 2 + PE

Rated current per contact - 20 A rms

Rated voltage - 250 V ac



Mechanical

Lifetime - > 1000 mating cycles

Locking device - Quick Lock

Mounting direction - Front mounting

Chassis shape - D



Material

Contact plating - 2 µm Ag

Locking element - Steel Ck67

Shell - Polyamide (PA 6.6 30 % GR)

Contacts - Bronze (CuNi1Si0.2)



Environmental

Flammability - UL 94 V-0

Temperature range - -30 °C to +80 °C



Product specific

Coding - A-type for power inlet (colour coding blue)
