New 90W /120W Peak 12V DC Adapter to ATX PSU 80% efficiency for Pico/Mini ITX PC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

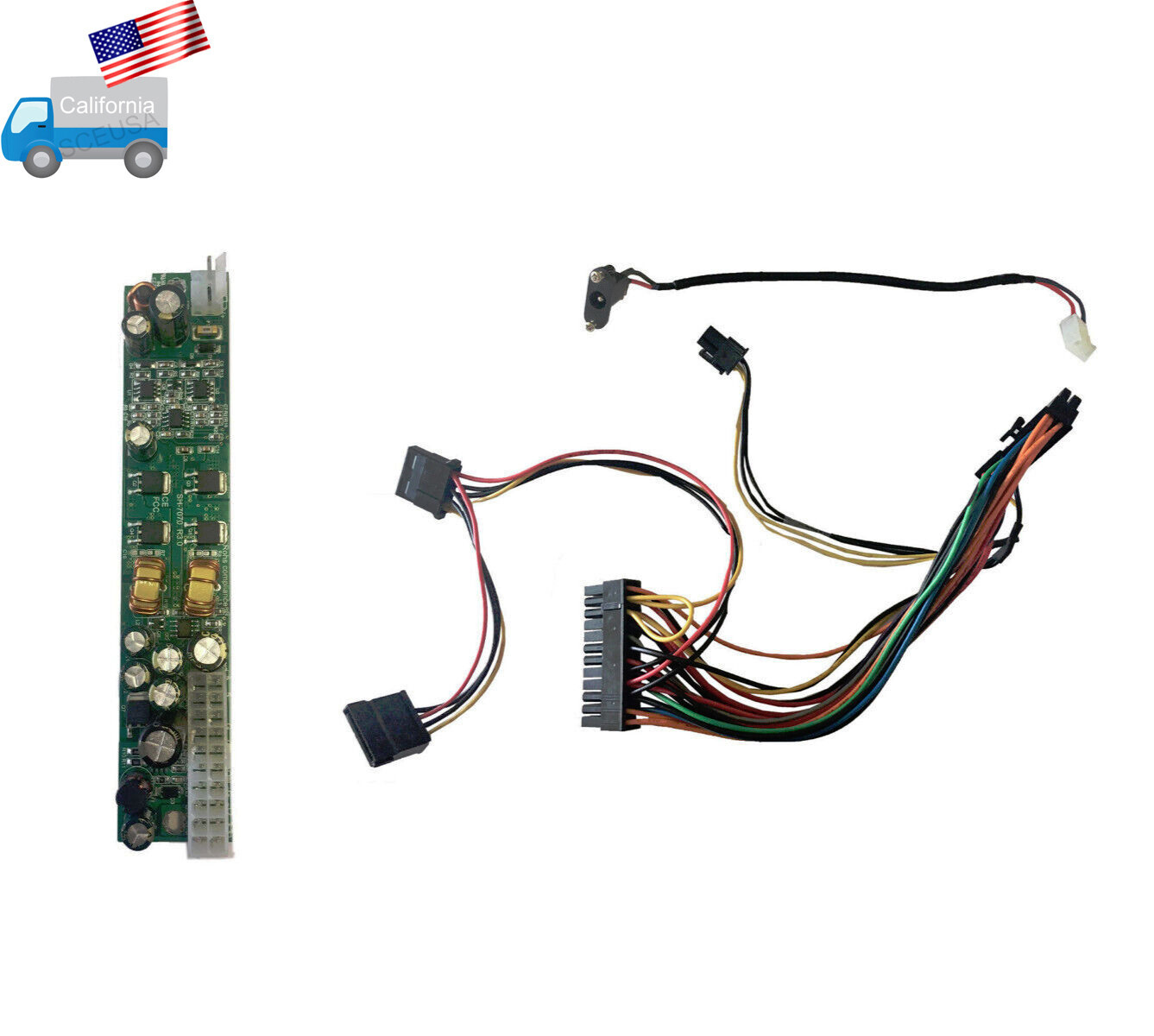

New 90W /120W Peak 12V DC Adapter to ATX PSU 80% efficiency for Pico/Mini ITX PC

Price: US $18.50

We are located in Southern California. We ship daily except Saturdays and Sundays.Your package will be shipped with a tracking number.
Internal DC-to-DC fanless ATX Power Supply Specifications

• DC Input: 11.4~13.0V, Max 10A/12V
• Maximal Inrush current: 45A @12V at 25℃ cold start
• Output: 90W continuous(120W peak)
• Ripple and Noise: <120 mV
• Load Regulation: +/- 5%
• Efficiency: 80% minimum at full load
• Multi protection: OLP, OCP & SCP
• Operation Temperature: -10 to 50℃RoHS / FCC / CE Compliant

Power Connector Summary: 1 x 20/ 24 pin Dual-Use Main Power Connector
1 x P4 12V Power Connector
1 x Molex Peripheral Power Connector
1 x SATA Power ConnectorDC Output Characteristics Output Voltage

V1
+5V

V2
+3.3V

V3
+12V

V4
-12V

V5
+5Vsb

Rated Load

5.0A

6.0A

3.2A

0.1A

1.0A

Peak Load
