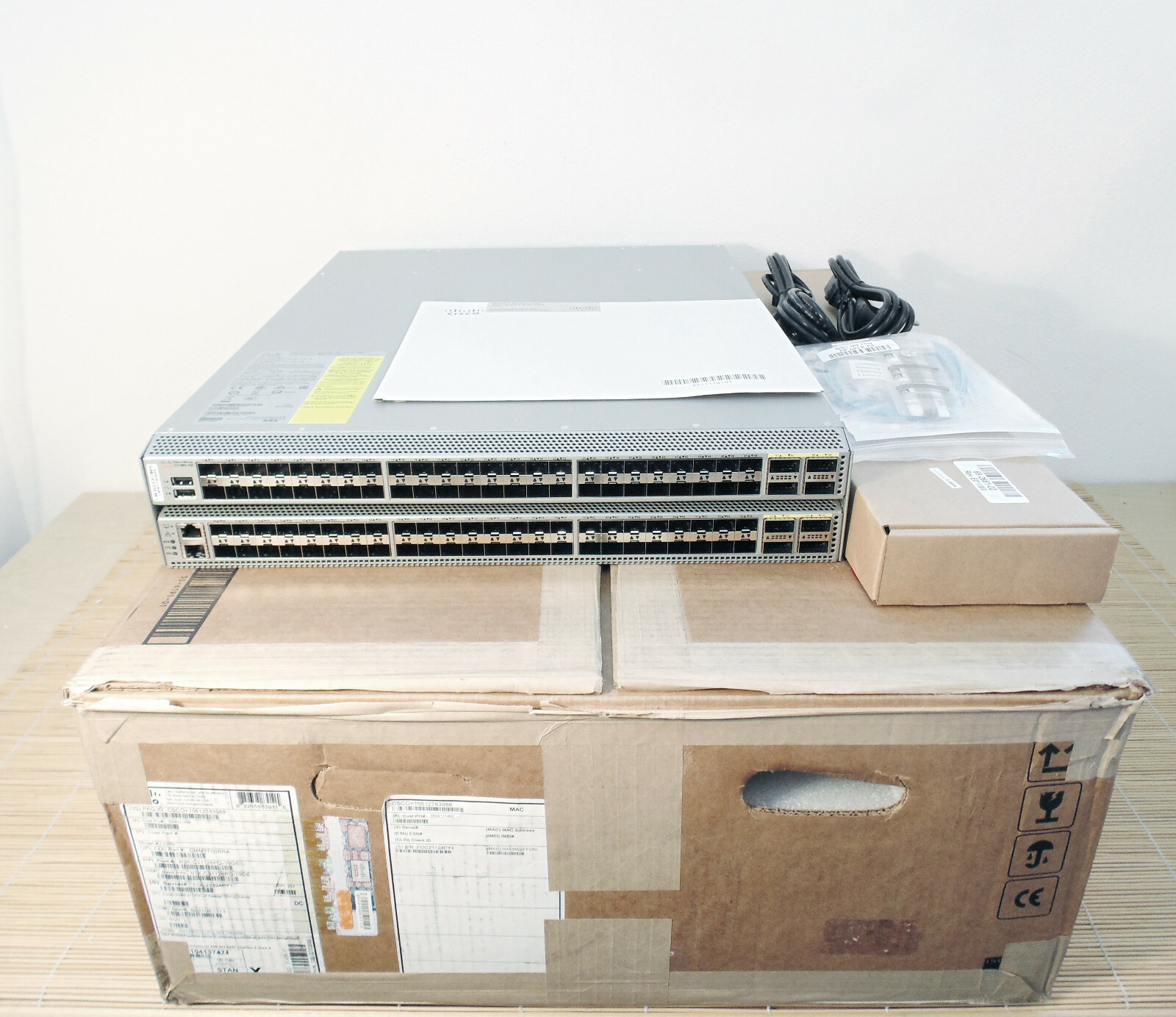

Neu Cisco N3K-C31128PQ-10GENexus 31128PQ 96 SFP+ ports 8 QSFP+ portswith Dual Ac Power Supply (2 x NXA-PAC-650W-PE)Port Side Exhaust Lan Enteprise Services ( N3K-LAN1K9 ) New Open Box

/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.

WIR GEBEN 2 JAHRE GARANTIE!
Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG. , daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden. Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können. Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher Umsatzsteuer FREI! Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - Umsatzsteuer-FREI! Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine Netto-Rechnung erstellen können. Sollten Sie als Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.

Product OverviewThe Cisco Nexus® 31128PQ Switch is a dense, high-performance Layer 2 and 3, 10- and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switches are the second-generation Cisco Nexus 3000 series switches and offer improved port density, scalability, and features compared to the first-generation switches. The Cisco Nexus 31128PQ comes in a compact two-rack-unit (2RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers comprehensive features and functions that are widely deployed. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 31128PQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 access or leaf switch.The Cisco Nexus 31128PQ is a 10-Gbps Enhanced Small Form-Factor Pluggable (SFP+) and 40-Gbps Quad Small Form-Factor Pluggable (QSFP+) based switch with 96 SFP+ ports and 8 QSFP+ ports.
Main BenefitsThe Cisco Nexus 31128PQ provides the following main benefits:- Wire-rate Layer 2 and 3 switching on all ports- Layer 2 and 3 switching of up to 2.5 terabits per second (Tbps) and up to 1.4 Billion packets per second (bpps) is provided in a compact 2RU form-factor switch.- High availability- Virtual PortChannel (vPC) technology provides Layer 2 multipathing through the elimination of Spanning Tree Protocol and enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.- The 64-way equal-cost multipath (ECMP) routing enables the use of Layer 3 fat-tree designs and allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.- Hot swappable power-supply units (PSUs) and fans.- High Performance- The Cisco Nexus 31128PQ delivers low nominal latency, which enables customers to implement high-performance infrastructure for high-frequency trading (HFT) and high-performance computing (HPC) workloads.- Purpose-built Cisco NX-OS operating system with comprehensive, proven innovations- PowerOn Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.- Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.- Advanced buffer monitoring reports real-time buffer utilization per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.- EtherAnalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open source network protocol analyzer.- Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.- Complete Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast sparse mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).ConfigurationThe Cisco Nexus 31128PQ has the following configuration:- 96 fixed 10 Gigabit Ethernet SFP+ ports- 8 fixed 40 Gigabit Ethernet QSFP+ ports- Locator, Status and Environment LEDs- Dual redundant power supplies- Redundant (1+1) fans (2 rotors per fan)- One 10/100/1000-Mbps management port- One RS-232 serial console port- Two USB portsBoth forward (port-side exhaust) and reversed (port-side intake) airflow schemes are supported.

Software Features

Description

Specification

Layer 2

●Layer 2 switch ports and VLAN trunks●IEEE 802.1Q VLAN encapsulation●Support for up to 4096 VLANs●Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)●MSTP (IEEE 802.1s): 64 instances●Spanning Tree PortFast●Spanning Tree Root Guard●Spanning Tree Bridge Assurance●Cisco EtherChannel technology (up to 16 ports per EtherChannel)●LACP: IEEE 802.3ad●vPC●Advanced PortChannel hashing based on Layer 2, 3, and 4 information●Jumbo frames on all ports (up to 9216 bytes)●Storm control (unicast, multicast, and broadcast)●Private VLANs●NvGRE Entropy●Resilient Hashing

Layer 3

●Layer 3 interfaces: Routed ports on interfaces, switch virtual interfaces (SVIs), PortChannels, and subinterfaces (total: 1024)●64-way ECMP●4000 ingress and 1000 egress ACL entries●Routing protocols: Static, RIPv2, EIGRP, OSPFv2, and BGP●offerirectional Flow Detection (BFD) for BGP●HSRP and VRRP●ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs●VRF: VRF-lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF-aware multicast●uRPF with ACL; strict and loose modes●Jumbo frame support (up to 9216 bytes)●Advanced BGP features including BGP add-path for eBGP and iBGP, remove-private-as enhancements and eBGP next hop unchanged●IP-in-IP Tunnel support●VXLAN

Multicast

Multicast: PIMv2, PIM-SM, and PIM-SSM

Bootstrap router (BSR), Automatic Rendezvous Point (Auto-RP) and Static RP

Multicast Source Discovery Protocol (MSDP) and Anycast RP

Internet Group Management Protocol (IGMP) Versions 2 and 3

Quality of service (QoS)

Layer 2 IEEE 802.1p (class of service [CoS])

8 unicast and 8 multicast hardware queues per port

Per-port QoS configuration

CoS trust

Port-based CoS assignment

Modular QoS CLI (MQC) compliance

ACL-based QoS classification (Layers 2, 3, and 4)

MQC CoS marking

Differentiated services code point (DSCP) marking

Weighted Random Early Detection (WRED)

CoS-based egress queuing

Egress strict-priority queuing

Egress port-based scheduling: Weighted Round-Robin (WRR)

Explicit Congestion Notification (ECN)

Priority Flow Control (with 3 no-drop queues and 1 default queue with strict priority scheduling between queues

Policy Based Routing (PBR)

Security

●Ingress ACLs (standard and extended) on Ethernet●Standard and extended Layer 3 to 4 ACLs: IPv4, Internet Control Message Protocol (ICMP), TCP, User Datagram Protocol (UDP), etc.●VLAN-based ACLs (VACLs)●Port-based ACLs (PACLs)●Named ACLs●ACLs on virtual terminals (vtys)●DHCP snooping with Option 82●Port number in DHCP Option82●DHCP relay●Dynamic Address Resolution Protocol (ARP) inspection●Configurable CoPP●SPAN with ACL Filtering

Management

●Switch management using 10/100/1000-Mbps management or console ports●CLI-based console to provide detailed out-of-band management●In-band switch management●Locator and beacon LEDs●Port-based locator and beacon LEDs●Configurable CoPP●Configuration rollback●SSHv2●Telnet●AAA●AAA with generation on system resources (for example, FIB tables)●Embedded packet analyzer●SNMP v1, v2, and v3●Enhanced SNMP MIB support●XML (NETCONF) support●Remote monitoring (RMON)●Advanced Encryption Standard (AES) for management traffic●Unified username and passwords across CLI and SNMP●Microsoft Challenge Handshake Authentication Protocol (MS-CHAP)●Digital certificates for management between switch and RADIUS server●Cisco Discovery Protocol Versions 1 and 2●RBAC●Cisco SPAN on physical, PortChannel, VLAN, and Fibre Channel interfaces●ERSPAN●Ingress and egress packet counters per interface●PTP (IEEE 1588) boundary clock●Network Time Protocol (NTP)●Cisco OHMS●Comprehensive bootup diagnostic tests●Cisco Call Home●Cisco DCNM●Advanced buffer monitoring●Linux Bash●NX-API

switch# show lic usage
Feature Ins Lic Status Expiry Date Comments
No - Unused -
NETWORK_SERVICES_PKG No - Unused -
LAN_ENTERPRISE_SERVICES_PKG Yes - Unused Never show vers
Cisco Nexus Operating System (NX-OS) Software
Copyright (C) 2002-2016, Cisco and/or its affiliates.
All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under their own
licenses, such as open source. This software is provided "as is," and unless
otherwise stated, there is no warranty, express or implied, including but not
limited to warranties of merchantability and fitness for a particular purpose.
Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or
GNU General Public License (GPL) version 3.0 or the GNU
Lesser General Public License (LGPL) Version 2.1 or
Lesser General Public License (LGPL) Version 2.0.
A copy of each such license is available atSoftware
BIOS: version 07.59
NXOS: version 7.0(3)I2(2b)
BIOS compile time: 08/26/2016
NXOS image file is: bootflash:///nxos.7.0.3.I2.2b.
NXOS compile time: 2/28/2016 21:00:00 [02/29/2016 05:21:45]
Hardware
cisco Nexus3000 C31128PQ-10GE Chassis
Intel(R) Core(TM) i3- CPU 2.50GHz with 8156740 kB of memory.
Processor Board ID FOC21124EY1 Device name: switch
bootflash: 51496280 kB
Kernel uptime is 0 day(s), 0 hour(s), 2 minute(s), 51 second(s)Last reset
Reason: Unknown
System version: 7.0(3)I2(2b)
Service:plugin
Core Plugin, Ethernet PluginActive Package(s):
