General Information

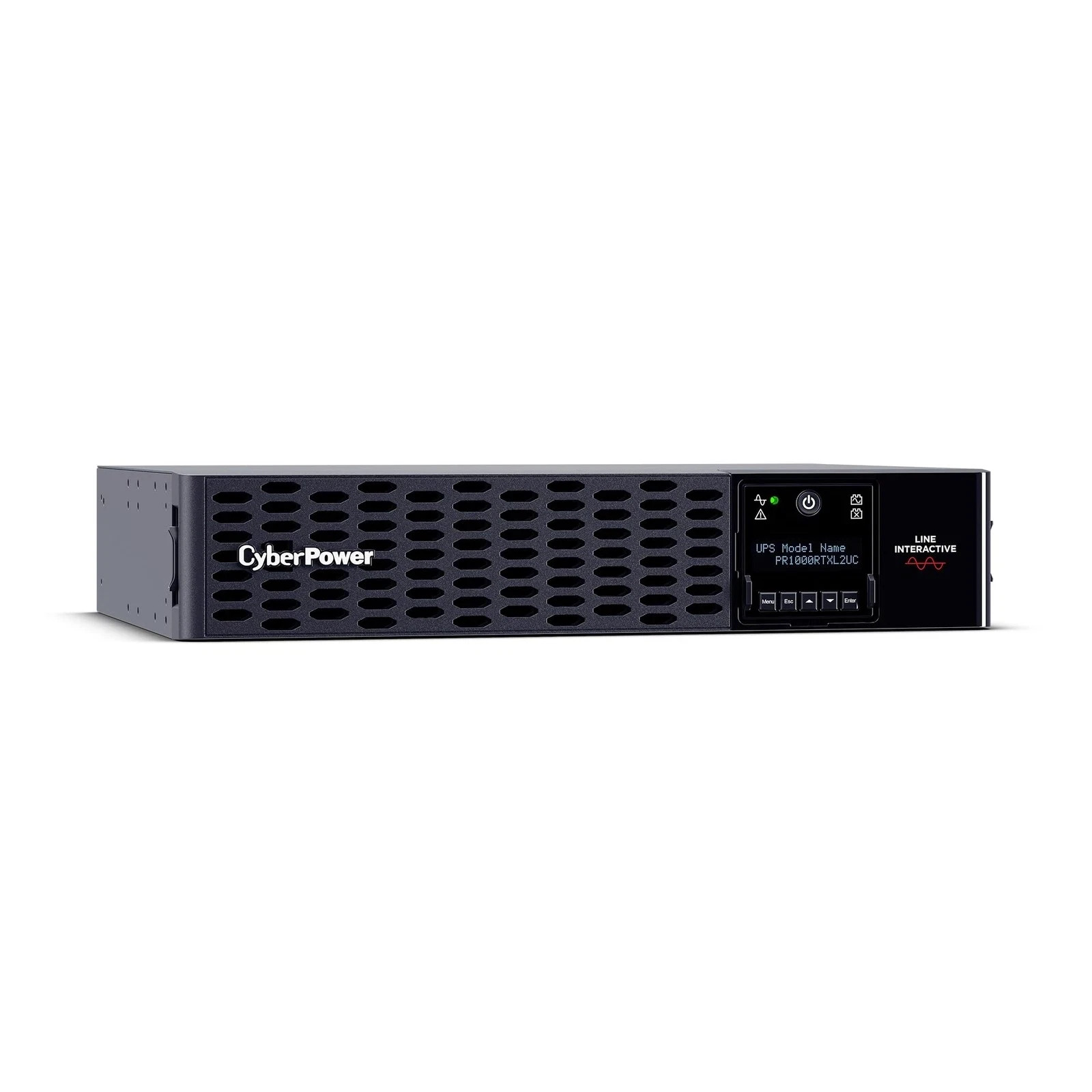

The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR100RTXL2UC.

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:8 x NEMA 5-15RNumber of Battery & Surge Outlets:8Number of Critical Load Outlets:4Overload Protection:YesCord Length:10 ftTransfer Time:11 msEMI/RFI Noise Filter:YesEnergy Saving:GreenPower UPS™ Bypass Suppression:Yes

Power DescriptionLoad Capacity (VA):1000 VALoad Capacity (Watt):1000 WInput Voltage:120 V ACInput Voltage Range:75 V AC - 149 V ACInput Voltage Range:100 V AC - 125 V ACOutput Voltage:100 V ACOutput Voltage:110 V ACOutput Voltage:120 V ACOutput Voltage:125 V ACInput Frequency:47 HzInput Frequency:63 HzOutput Frequency:50 HzOutput Frequency:60 HzWaveform Type:Sine WaveSurge Energy Rating:2430 JCircuit Breaker:YesOutput Power Factor:1

Display & GraphicsDisplay:LCD

ManagementNetwork Management:SNMP/HTTP Remote MonitoringNetwork Management:Relay-MS CardNetwork Management:Dry ContactAlarm:Battery ModeAlarm:Low class="product_spacer" style="color: rgb(51, 51, 51); font-size: 14px;">

Controls/IndicatorsStatus Indicators:

LED Indicators:

• ?Power On
• Line Mode
• Battery Mode
• Fault
• Night Mode
• Wiring Fault

Interfaces/PortsSerial Port:YesUSB:YesEPO Port:YesUSB (HID Compliant) Port:Yes

Battery InformationNumber of Batteries:4Battery Characteristics:SealedBattery Chemistry:Lead AcidBattery Size:12VBattery Capacity:7000 mAhBackup/Run Time (Full Load):8 MinuteBackup/Run Time (Half Load):20 MinuteTypical Battery Recharge Time:3 HourHot Swappable:YesReplaceable Battery:Yes

Environmental ConditionsMinimum Operating Temperature:32°F (0°C)Maximum Operating Temperature:104°F (40°C)Storage Temperature:5°F (-15°C) - 113°F (45°C)Maximum Operating Elevation:9842.52 ftMaximum Storage Elevation:49209.32 ftOperating Humidity:0% - 95%Thermal Dissipation:14.24 W

Physical CharacteristicsColor Family:BlackProduct Height:2UForm Factor:Rack/TowerWeight (Approximate):55.30 lb

MiscellaneousAdditional Information:

Active PFC Compatible : Yes

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 4

Battery Size : 12 V / 7 Ah

Battery Type : Sealed Lead-Acid Battery

Extended Battery Module : BP48VP2U01

Hot Swappable : Yes

Replacement Battery Cartridge : RB1270X4H

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 8 min

Runtime at Half Load : 20 min

Typical Recharge Time : 3 Hours (0% to 90% charged)

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 41.15 (cm)

Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 16.2 (in)

Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 411 (mm)

Weight (kg) : 25.08

Weight (lb) : 55.3

Shipping Dimensions - (WxHxD) (cm) : 52.71 x 27.31 x 55.88 (cm)

Shipping - Dimensions (WxHxD, in) : 20.75 x 10.75 x 22 (in)

Shipping - Dimensions (WxHxD, mm) : 527.05 x 273.05 x 558.8 (mm)

Shipping - Weight (kg) : 27.76

Shipping - Weight (lb) : 61.2

Adjustable Voltage Range : 70 - 155 VAC

Circuit Breaker : 15 A

Cord Length : 10 ft (3.0 m)

Input Frequency Range : 47 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage : 100 - 125 VAC

Input Voltage Range : 75 VAC - 149 VAC

Nominal Input Voltage : 120 VAC

Plug Style : Right Angle - 45° Offset

Automatic Voltage Regulation : Double Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 50/60 Hz ± 1%

On Battery Voltage : 100/110/120/125 VAC ± 5%

On Battery Waveform : Sine Wave

Outlets - Battery & Surge Protected : 8

Outlets - Critical Load : 4

Outlets - Total : 8

Outlet Type COMPUTED : 8 - NEMA 5-15R

Output Power Factor : 1

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 6ms; Max 11ms at normal sensitivity

USB Charge Port : No

VA : 1000 VA

Watts : 1000 W

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 2430 J

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 2430 J

Audible Alarms : Battery Mode

Emergency Power Off (EPO) Port : Yes

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Serial

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : Black

Form Factor : Rack / Tower

Material of Construction : Metal

Rack Height : 2U

Online Thermal Dissipation : 48.6 BTU/hr

Operating Elevation : 0 - 9843 ft (0 - 3000 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Elevation : 0 - 49213 ft (0 - 14999 m)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $400000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U4A

Product Warranty : 3 Year Limited Warranty

Certifications & Standards:UL1778Energy Star:YesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
