New Dell PowerSwitch S4148F-ON RA 48x 10G SFP+2x 40G QSFP+4 100G OS10 PerpetualModel:S4148F-ON
3 Year WarrantyReverse Airflow (Rear to Front)

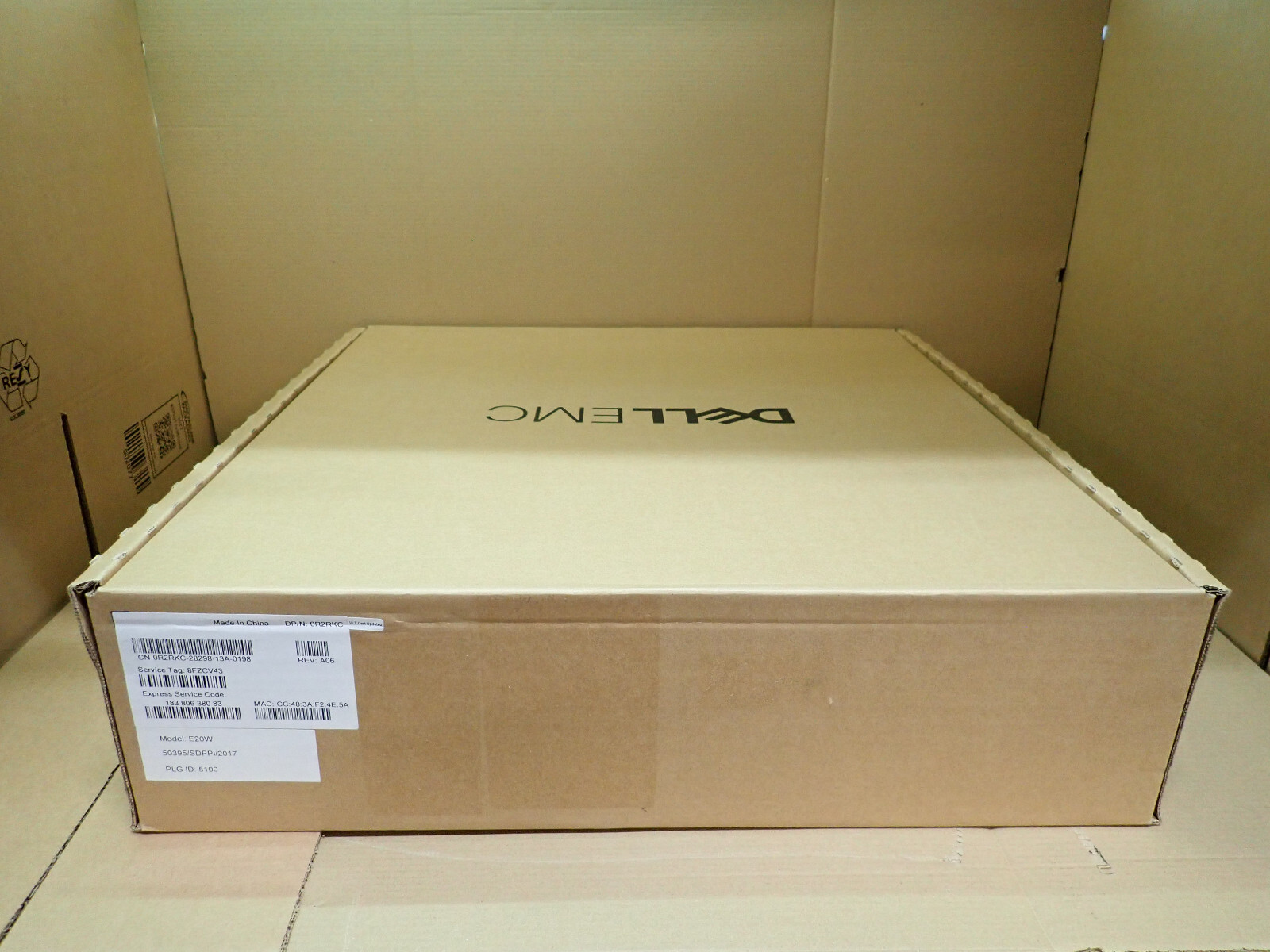

New factory sealed - the one shown in the photo is one we opened for photos, the one you will receive will be new factory sealed
Included:

• 1 x New Dell PowerSwitch S4148F-ON RA 48x 10G SFP+ 2x 40G QSFP+ 4x 100G QSFP28 ONIE Switch
• 4 x Fan Modules reverse airflow PSU to IO
• 2 x Power Suppliesreverse airflow PSU to IO
• 2 x Power Cables
• Rail kit
• Dell OS 10 Perpetual

Key Features:

• 1RU high-density 10/40/100 GbE ToR switches with up to 28 ports of 8/16 fibre channel, two ports of 40 GbE (QSFP+), and up to four ports of 100GbE (QSFP28) or four ports of 8/16/32G fibre channel
• Multi-rate 100GbE ports support 10/25/40/50 GbE. 40GbE ports support 10GbE. 10GbE ports support 1GbE. Up to four different simultaneous speeds are possible in a given profile.
• 1.76Tbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load.
• VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
• Converged Network support with DCB
• IO panel to PSU airflow or PSU to IO panel airflow
• Redundant, hot-swappable power supplies and fans
• IEEE 1588v2 supported on 48 port SFP+
• 2x QSFP+
• 4x QSFP28

Unified port: N/A

Max 10GbE density: 72 (48 SFP+ and 24 via QSFP28 breakout)

Max 25GbE density: 16 via QSFP28 breakout

Max 40GbE density: 6

Max 50GbE density: 8

Max 100GbE density: 4

Max FC 8G/16G ports (oversubscribed): 0

Max FC 16G line rate: 0

Max FC 32G ports (oversubscribed): 0

Max FC 32G line rate: 0

Switching capacity: 1.76Tbps

Throughput: 1320Mpps

LRM optics support: No

1588v2 PTP timing: Yes

Max power consumption: 370W

Typical operating power: 200W

Number of fan trays: 4

Fans per fan tray: 1

Weight: 20.15 lbs (9.14 kg)

Max thermal output: 1261 BTU/h

Boot Log:

OS10#show version
Dell EMC Networking OS10 Enterprise
Copyright (c) 1999-2020 by Dell Inc. All Rights Reserved.
OS Version: 10.5.0.4
Build Version: 10.5.0.4.638
Build Time: 2020-01-30T21:08:56+0000
System Type: S4148F-ON
Architecture: x86_64
Up Time: 00:04:37
OS10#show inventory
Product: S4148F-ON
Description: S4148F-ON 48x10GbE, 2x40GbE QSFP+, 4x100GbE QSFP28 Interface Module
Software version: 10.5.0.4
Product Base:
Product Serial Number :
Product Part Number:Unit TypePart NumberRevPiece Part IDSvc TagExprs Svc 015 704 license statusSystem Name:Dell EMC
Product Name:S4148F-ON
Hardware Version:A06
Platform Tag:8HZCV43
Product Base:
Product Serial Number:
Product Part Number:
License Type:PERPETUAL
License Duration:Unlimited
License Status:Active
License Ambient temp sensor23
12Near NPU Ambient temp sensor26
13Left Ambient temp sensor24
14Right Ambient temp sensor23
15QSFP Ambient temp sensor25
16Ambient temp sensor22
17NPU temp sensor35
