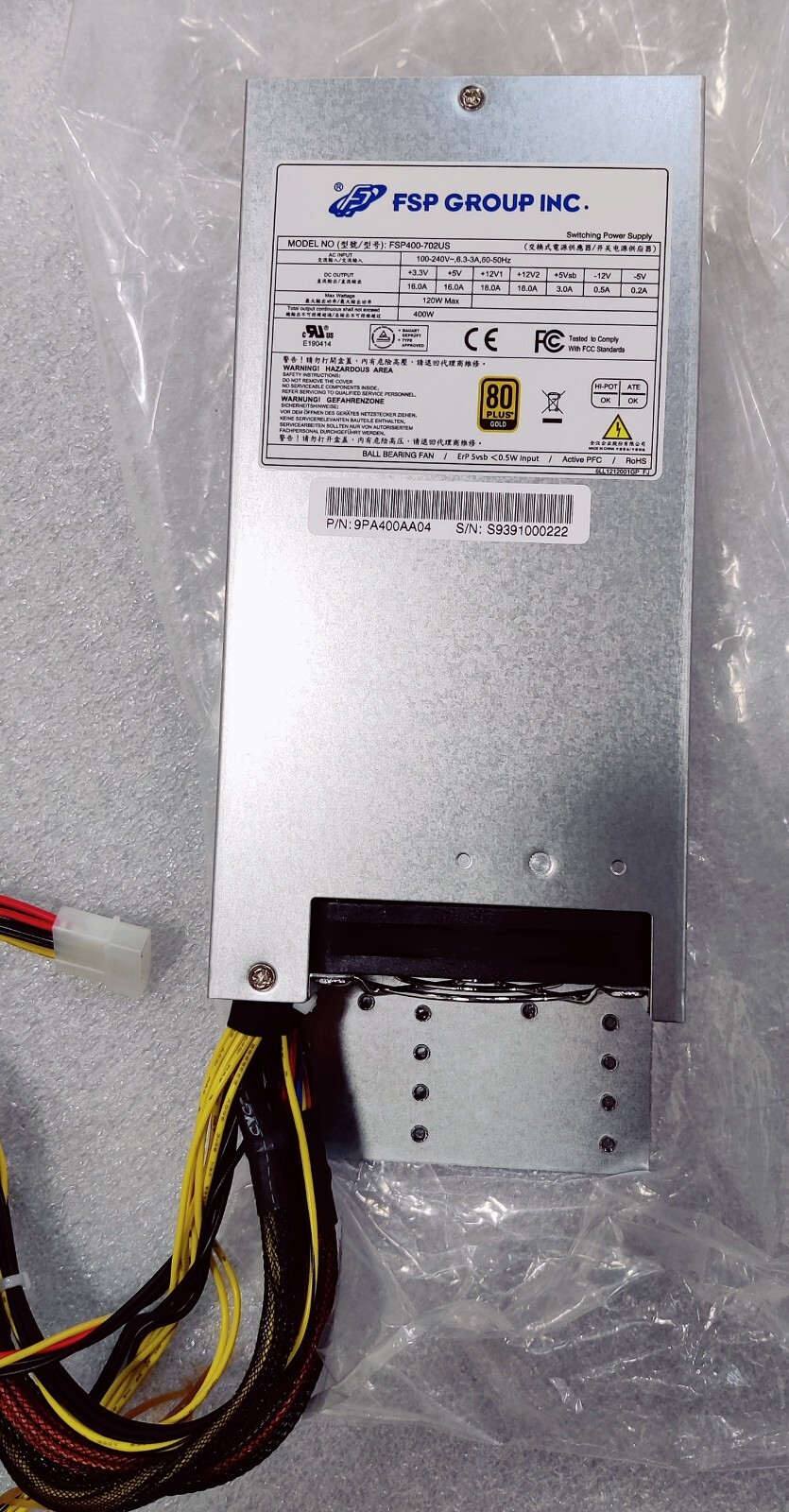

New FSP400-702US 400W ATX Power Supply Single 2U Size 80 PLUSGold
You are looking at the new FSP400-702US ATX power supply for 2U server. The below datasheet is for your reference only. Please verify it by yourself to meet your server need. You may need different mounting bracket for it. Should you have any questions, please send us an email. Thanks for looking.
Description:
FSP Group 400W ATX Power Supply Single 2U Size 80 PLUS GoldCertified for Rack Mount Case (FSP400-702US)
FSP400-702US is an industrial level of switchingpower supply. The power supply comes to offer the total power capacity up to400 Watts, and uses unique active PFC (Power Factor Correction) circuit designwith its high-load electrical components, makes it to be perfectly used in anindustrial environment. In addition, with its full range of input and outputelectrical features, the power supply is ideally the best choice for server,workstation, communication or any other automation applications to use. Theproduct also complies with the latest safety and EMC standards, which is perfectlyto meet various regulations worldwide.
Dimensions: (200mm (L) × 100 mm (W)× 70mm (H))
Application : For standard, advancedserver and storage power system.
Watt : 400W
MODEL NAME: FSP400-702US
80 Plus Gold
Low Ripple & Noise
Output over voltageprotection
Short circuit protectionon all outputs
Resettable power shut down
Dual +12V output(+12V/1,+12V/2)
-5V is included
100% burn-in under highambient temperature(50℃)
MTBF:100K hours at 25℃
100% Hi-pot tested
