Top Highlights:

• GPS + GLONASS for efficient data synchronization
• Dual TX/RX channel with reduced interference
• 10/100/1000 Gigabit Ethernet port and SFP fiber
• Up to 1.5 Gbps with 1 ms low latency
• IP67 rating for weather resistance...more info

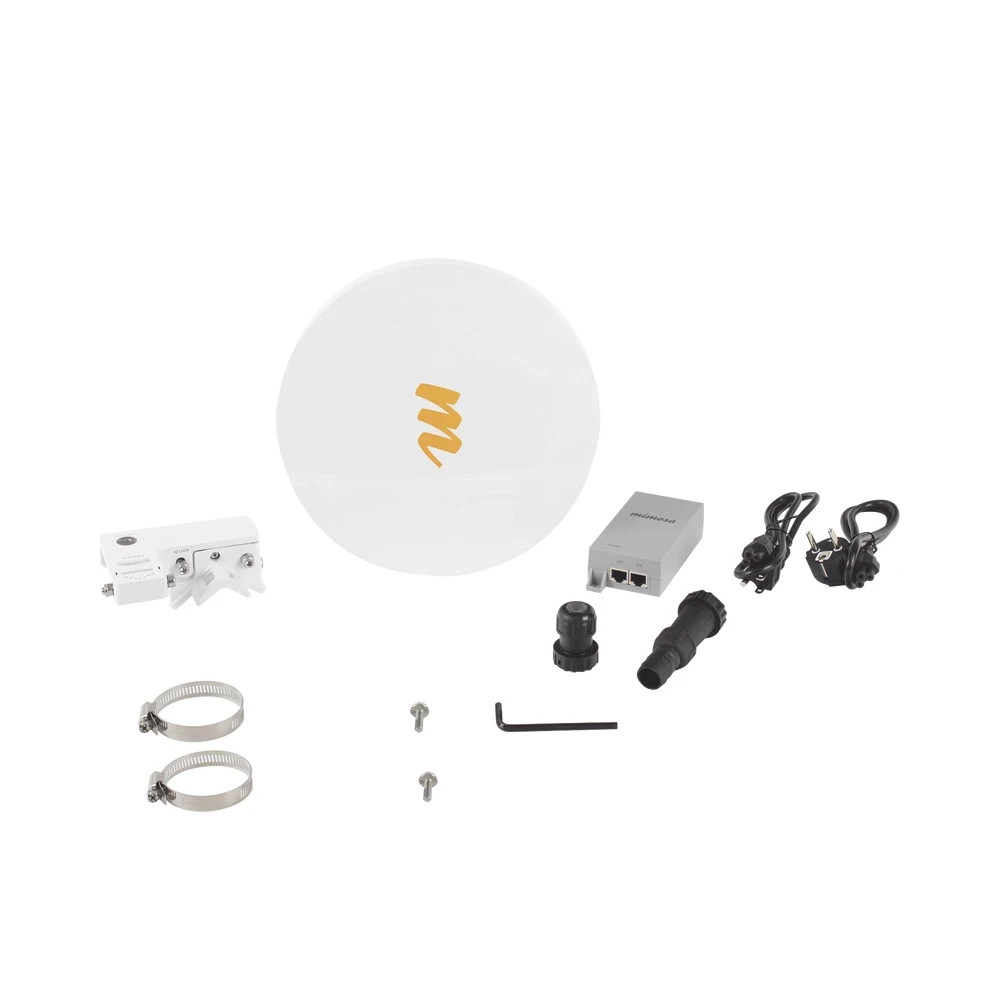

Model:B24
Brand:MIMOSA NETWORKS

The B24 is designed for urban areas where a 5 GHz link cannot be established due to saturated spectrum.

Key features of the B24.

• Integrated GPS + GLONASS systemfor efficient Tx & Rx data packet synchronization.
• Dual‑channelwith simultaneous, independent Tx & Rx for redundancy and interference reduction.
• Gigabit Ethernet port10/100/1000.
• Fiber portSFP for fiber optic operations.
• Advanced security:128‑bit AES‑PSK.
• Up to one million packets per second.
• Maximum performanceup to 1.5 Gbps aggregate DL/UL throughput.

• Waveguide circular connector.

Radio

• MIMO & modulation: 4×4:4 MIMO OFDM up to 256 QAM.
• Dual channel width 20/40/80 MHz.
• Max TX power: 27 dBm.
• Low latency < 1 ms.
• Weatherproof: IP67.
• Temperature range: −40 to 55 °C (−40 to 131 °F).
• Frequency: 24.00–24.25 GHz.

Physical and electrical characteristics

• Maximum power consumption: 19.5 W
• Passive PoE supply: 48–56 V DC
• Passive PoE56V injector included.

Dimensions:

• Depth: 134 mm
• Width: 260 mm
• Height: 260 mm
• Weight:2.5 kg (5.5 lbs)

Note: The unit includes an internal surge protector; grounding to physical earth is recommended.

B24CLIENT/BACKHAULReliable Gigabit performance at 24 GHz

The Mimosa B24 breaks existing barriers of cost, size, performance and energy efficiency in the less‑crowded 24 GHz band.

APPLICATIONS

Fixed wireless broadband backhaulRooftop MDU/business linksVideo surveillance/distributionSmart-city connectivity

VALUEPrice‑performance leader

Mimosa B24 delivers up to one gigabit of low‑latency IP traffic in a single direction, making it the industry’s price‑performance leader for license‑free 24 GHz backhaul. Built from the ground up with high‑volume, high‑quality components, the B24 achieves incredible performance at a price suited for suburban and urban broadband providers and businesses.

CAPACITYGigabit on‑demand

To meet modern internet traffic demands—where nearly 90 % of peak nightly traffic may be download‑heavy—the B24 dynamically shifts using Auto‑TDMA. Low‑latency gigabit performance can be directed down‑ or upstream as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetric traffic, leaving large amounts of spectrum underutilized.

RELIABILITYUnmatched reliability

Don’t be limited by shorter distances of higher‑frequency microwave tech. Use the B24 to avoid 5 GHz congestion and provide superior reliability—even in rain—for distances up to 3 km (2 mi).

EASY TO INSTALLLightweight

Weighing just 2.7 kg (6 lbs), the Mimosa B24 is incredibly easy to carry and install.
