NEWSHARK TECHNOLOGY® 750-Watt High Efficiency & Quiet Blue LED Fan Gaming PC Power Supply
H i g h E f f i c i e n c y
This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market. L o w H e a t L o w N o i s e
Bonus: 4pcs new factory sealed SATA III 6Gb/s data cables
- 750-Watts Output Power
- Low heat & Low noise operation
- Silent low-RPM 120mm cooling fan
- Active PFC for reduced harmonic distortion
- Full range AC input with automatic AC input voltage selection - 100- 240V AC
- Typical 85.77%, average 84.16% efficiency
- High efficiency power conversion allowing lower electrical bill
- Dual +12V Output Rails
- Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fanless quiet
- Quad blue color LEDs turns on when the PSU is on
- ATI Radeon® CrossfireTM, CrossFireXTM,FireProTM Ready
- nVidia®SLITM Ready
- Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64, Athlon, Ryzen 3/5/7/9, Vega Multi-Core based systems
- Safe to Operate - Designed and tested to meet major international safety agency standards
- 5x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
- RoHSCompliant - made with hazardous-free components
- Complete 4*StarTM electrical protection features built-in
- Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC spike is introduced for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out.
ConnectorsDetails
Smart Design: Cables are long with power connectors strategically spaced out on several cable lines to support various system configurations in standard as well as larger tower cases
(1) 20+4 pin ATX Main Connector(1) 4+4 pin CPU 12V Connector
(2) PCI-Express 6+2 pin Connectors
(1) Floppy Connectors
(2) 4-pin Molex Peripheral Connector
(5) SATA Connectors
Mechanical Design

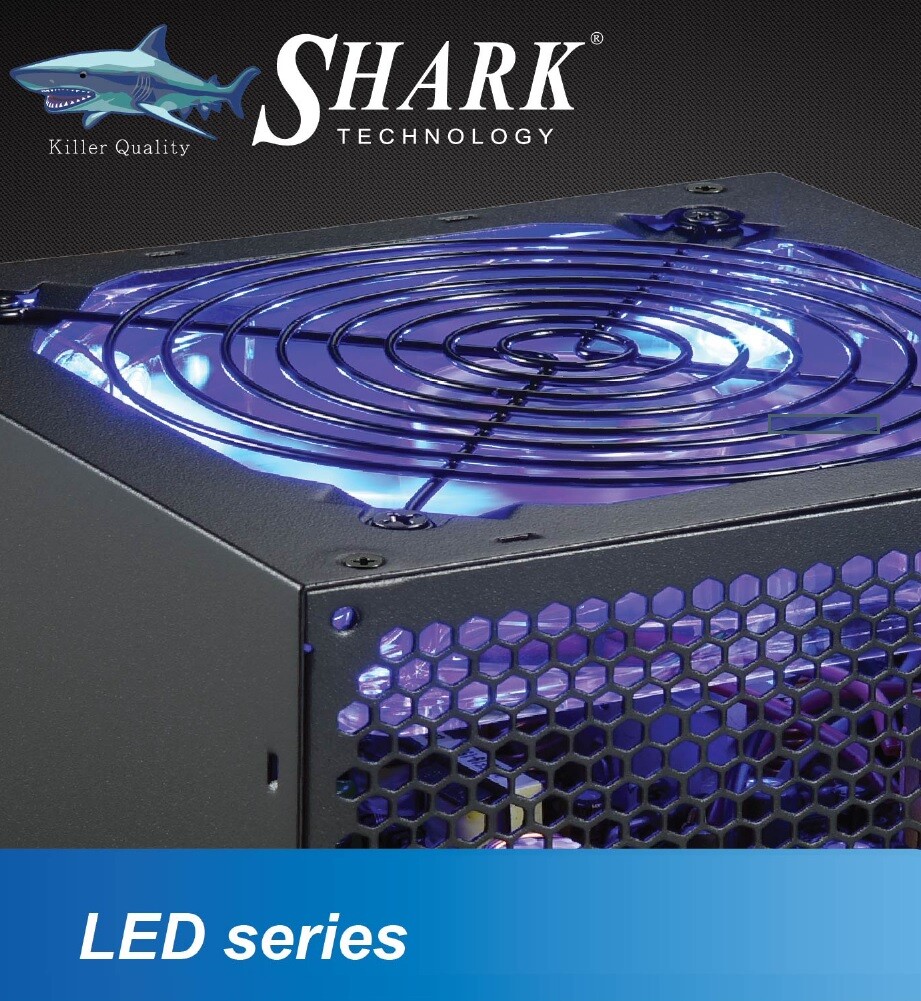

Massive 120mm fan draws heat from CPU area and cools the power supply at the same time. Special slippery circular tube design black anodized fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury.
This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further
Application
- Gaming PC
- 24/7 Server or PC Workstation
- DVR System
Technical Specifications
AC INPUT : 100-240V Full Range with Automatic AC input Switching. AC VoltageSelection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically. Input Frequency Range: 50-60Hz. Maximum Input Current: 10A
AC INPUT 115V/230V - 60/50Hz DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5VSB 750W Peak
Combined
Watts 25A 25A 25A 25A 0.3A 2.5A 750W
- Maximum Power Output: 750W
- Manual power shut-down rocker switch
- Dimension: 150mm x 86mm x 145mm (the 145mm length is the side that extends inside the case when installed)
Complete Built-in Electrical Protection System:
- Over Voltage Protection
- Over Current Protection
- Short Circuit Protection
- Over Power Protection
Safe to Operate. Safe to the Environment.
Lead-FREE
Cadium-FREE
Mercury-FREE
Hexavalent chromium-FREE
PBB-FREE
PBDE flame retardants-FREE
RoHSCompliant - made with hazardous-free components
