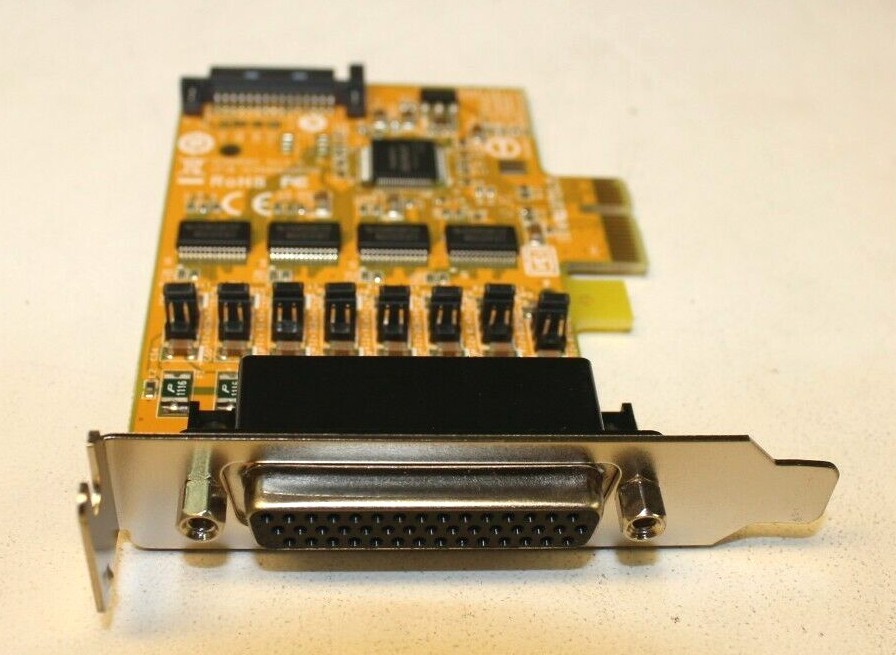

4-port RS-232 PCI Express Serial Board with Power Output (SATA PowerSocket)

Expat SUNIX SER6456S, PCI Express serial communication board,allows users to add or expand four RS-232 COM ports on a PC-based system to useserial devices further. This board supports +5 or +12VDC of power from eachserial port via COM 1st and 9th pin output. It's convenient for users toconnect serial devices without an additional external power supply.

SUNIX SER6456S meets the PCI Express Base Specification Revision2.0. It is compatible with PCI Express x1, x2, x4, x8, and x16 lane busesallowing it to be installed in any PC-based system. This serial board has a 128-bytesonboard FIFO buffer and is compatible with 16C950 UART specification. It isdesigned with SUNIX native PCI Express UART controller, SUN2410, and is wellbuilt with many of SUNIX's advanced features and technologies, making it thebest solution for commercial and industrial automation applications.

• Expands four RS-232 serial ports with communication speeds up to 115.2Kbps.
• High reliable SUN2410 16C950 compatible native PCI Express UART controller on-board.
• Designed to meet PCI Express Base Specification Revision 2.0.
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
• Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
• Build-in Serial-ATA power socket to source efficient DC power from the system.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ± 15KV ESD protection for all serial signals meets the IEC1000-4-2 standard.
• Plug-n-Play, I/O address, and IRQ assigned by BIOS.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, UNIX, QNX, and DOS operation systems.

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11

Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022(X64)

Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009

Linux Linux2.x / 3.x / 4.x / 5.x

DOS

*UNIX FreeBSD/ QNX / SCO OpenServer / SCO UnixWare / Solaris

IBM OS/2 WARP 3/WARP 4
