Condition: New, Retail PackageBrand: NoctuaModel: NH-L9x65

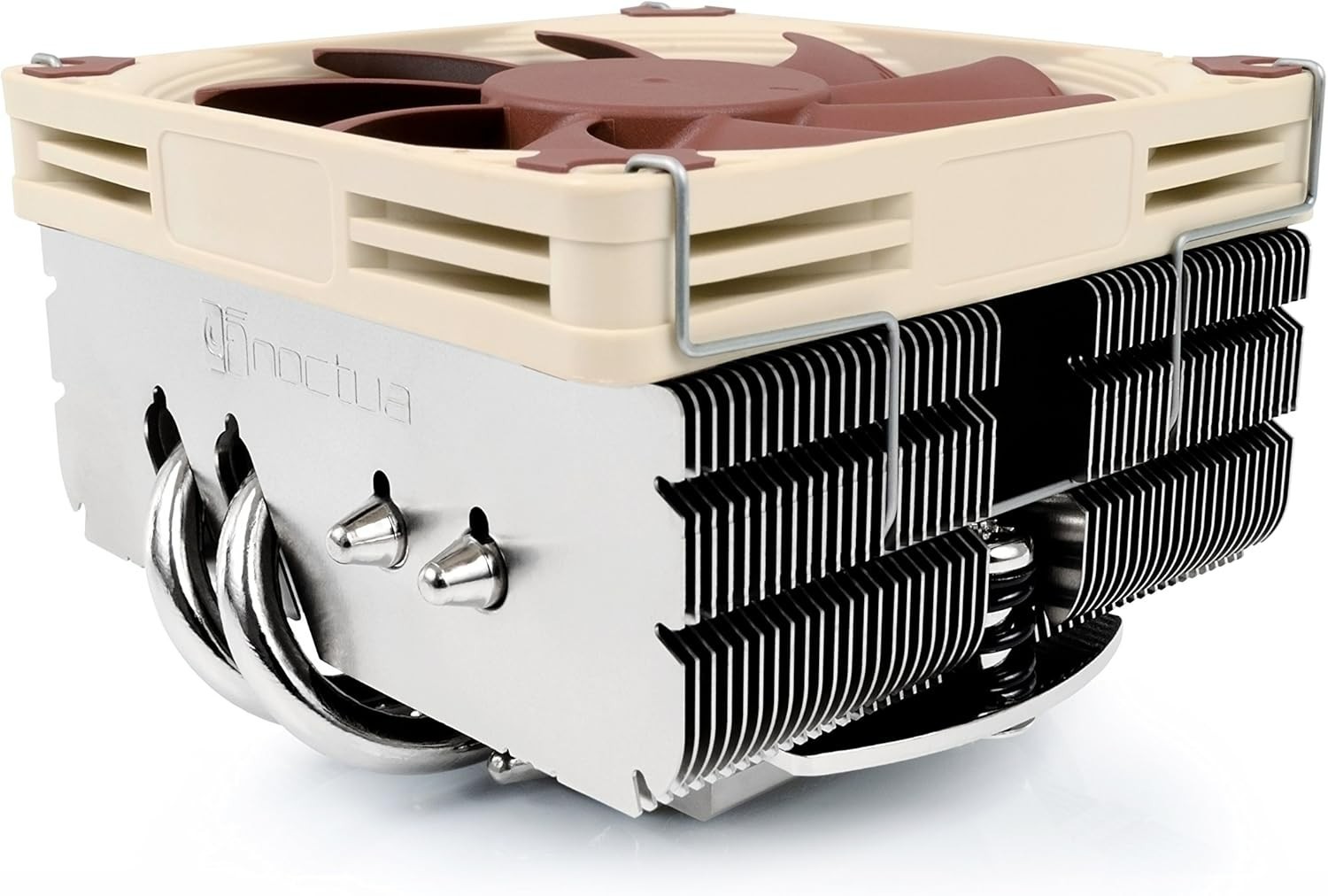

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which ensures 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2 multi-socket mounting system for Intel and AMD, and Noctua’s renowned NT-H1 thermal compound, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems. Please check our Noctua Compatibility Database.
65mm low profile
Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.
100% RAM compatibility
The NH-L9x65 has a 95x95mm footprint that complies exactly to the Intel LGA17xx/1200 socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, making it fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX
Many Intel LGA17xx/1200 based mini-ITX mainboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone may block the PCIe slot, the 95x95xmm sized NH-L9x65 provides full compatibility with PCIe cards.
NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Measurements
- Height (without fan): 51 mm
- Width (without fan): 95 mm
- Depth (without fan): 95 mm
- Height (with fan): 65 mm
- Width (with fan): 95 mm
- Depth (with fan): 95 mm
- Weight (without fan): 340 g
- Weight (with fan/s): 413 g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler SpecificationsPlease Note
The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.
Scope of delivery
- NF-A9x14 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 mounting kit
- Noctua Metal Case-Badge
NF-A9x14 PWM premium fan
The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.
