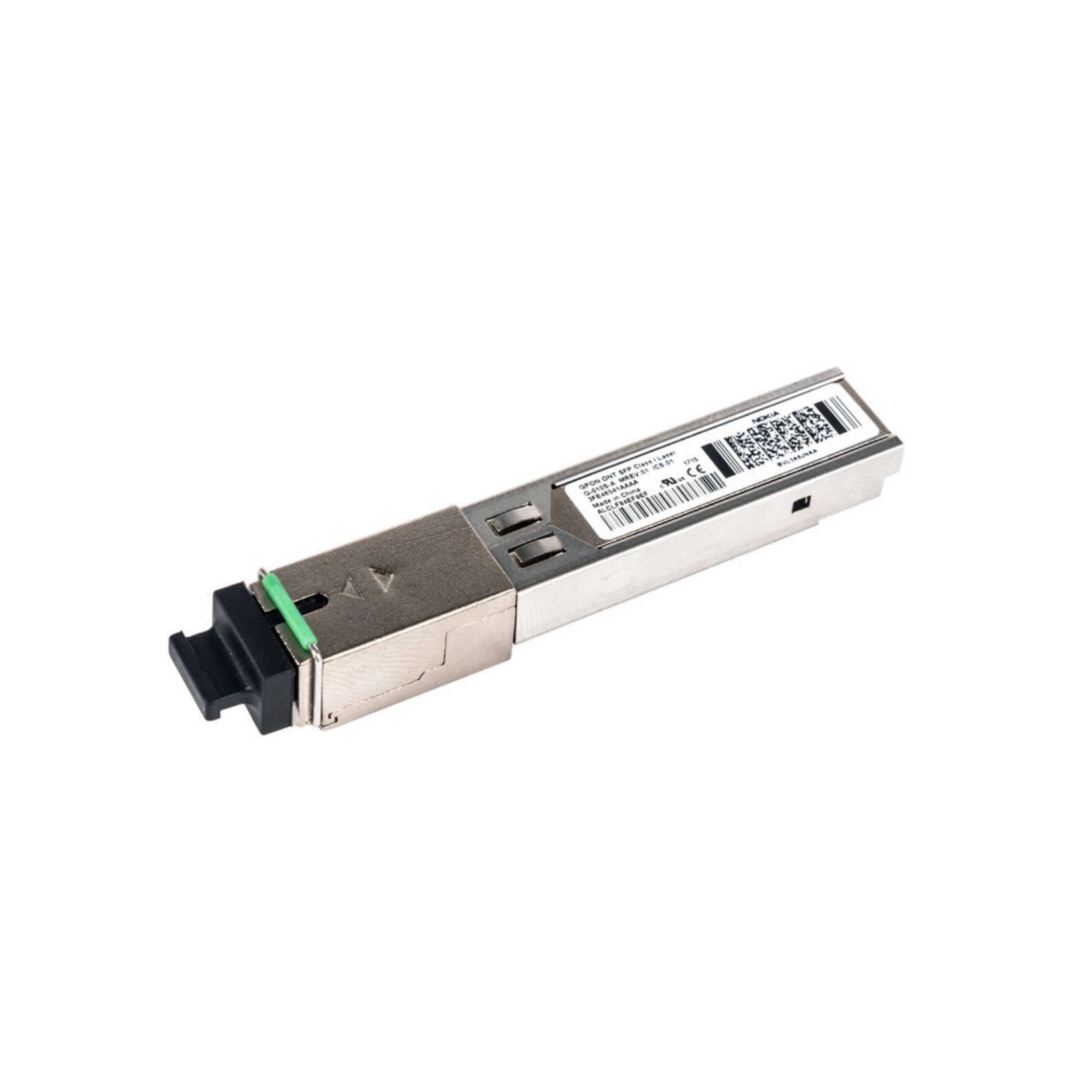

Up for sale is this Brand New, Nokia 3FE46541AA GPON ONT SFF I-Temp SFP Fiber Module G-010S-A 1Gb BaseT SC/APC. Feel free to reach out with any questions. Thanks for stopping by!Overview
The Nokia Optical Network Terminal (ONT) G-010S-A is the answer for home networking delivered by Gigabit Passive Optical Network (GPON) Small Form-Factor Pluggable (SFP). The device is G.984.x (1/2/3/4/5) compliant with SFP packaging and integrates a offerirectional optical transceiver function with a GPON media access control (MAC) layer function. It provides a Gigabit Ethernet (GigE) service to any device capable of hosting this SFP, such as Ethernet switches, wireless backhaul equipment, Ethernet access devices (EADs), routers, remote digital subscriber line access modules (DSLAMs), and other customer premises equipment (CPE). The Nokia ONT G-010S-A is designed to take advantage of Nokia award-winning management platforms.Key Features

• Optics support received signal strength indication(RSSI)
• GPON ONT in a SFP multiple source agreement(MSA) footprint
• Compliant to Full Service Access Network (FSAN)G.984.x specifications
• Passive Optical Network (PON) link statusnotification
• Dying gasp notification
• ONU management and control interface (OMCI)specification
• Internet Group Management Protocol (IGMP)functions
• G.988 OMCI compliant
• Support of 2.5G and 1G Ethernet UNI modes Form-Factor Pluggable (SFP)
• GPON anywhere, backhauls any Ethernet devicewith GPON
• Little space needed to convert an Ethernet boxinto a GPON capable box
• Easy to install
• Low power consumption
• Increased end-user experience as the existingbox can be easily upgraded to GPON
• More efficient use of the fiber facilities
• Ideally suited for business services and tosubtend remote nodes
• Easily upgrade existing CPE to GPON fiberconnectivity

Technical Specifications
GPON Uplink

• 1490 nm wavelength downstream, 1310 nmwavelength upstream
• 2.488 Gb/s line rate downstream, 1.244 Gb/s linerate upstream
• GPON Encapsulation Method (GEM) mode supportfor IP/Ethernet service traffic support
• ITU-T G.984.3-compliant dynamic bandwidthreporting (DBR)
• ITU-T G.984.3-compliant Advanced EncryptionStandard (AES) in downstream
• ITU-T G.984.3-compliant forward error correction(FEC)
• ITU-T G.988 Appendix 1 and Appendix 2 ONTManagement and Control Interface dBm average output power
• 1 nm spectral width (-20 dB)
• 250 ps optical rise/fall time (20% to 80%)
• 0.2UI jitter generation
• Transmitter output eye compliant with dB Crosstalk 1310 nm Tx to 1490 nm Rx
• 30 dB Isolation Ext 1550–1490 nm Rx
• -27.5 to -8 dBm Received Optical Power
• -28 dBm Signal Detect Assertion Level
• -40 dBm Signal Detect De-assertion Level
• 0.5–6 dB Hysteresis
• -3 to +3 dB RSSI Accuracy
• G.984.5 Wavelength Blocking Filter Isolation:

– 7 dB at 1530nm
– 22 dB at 1539nm
– 30 dB at 1560–1625nm
