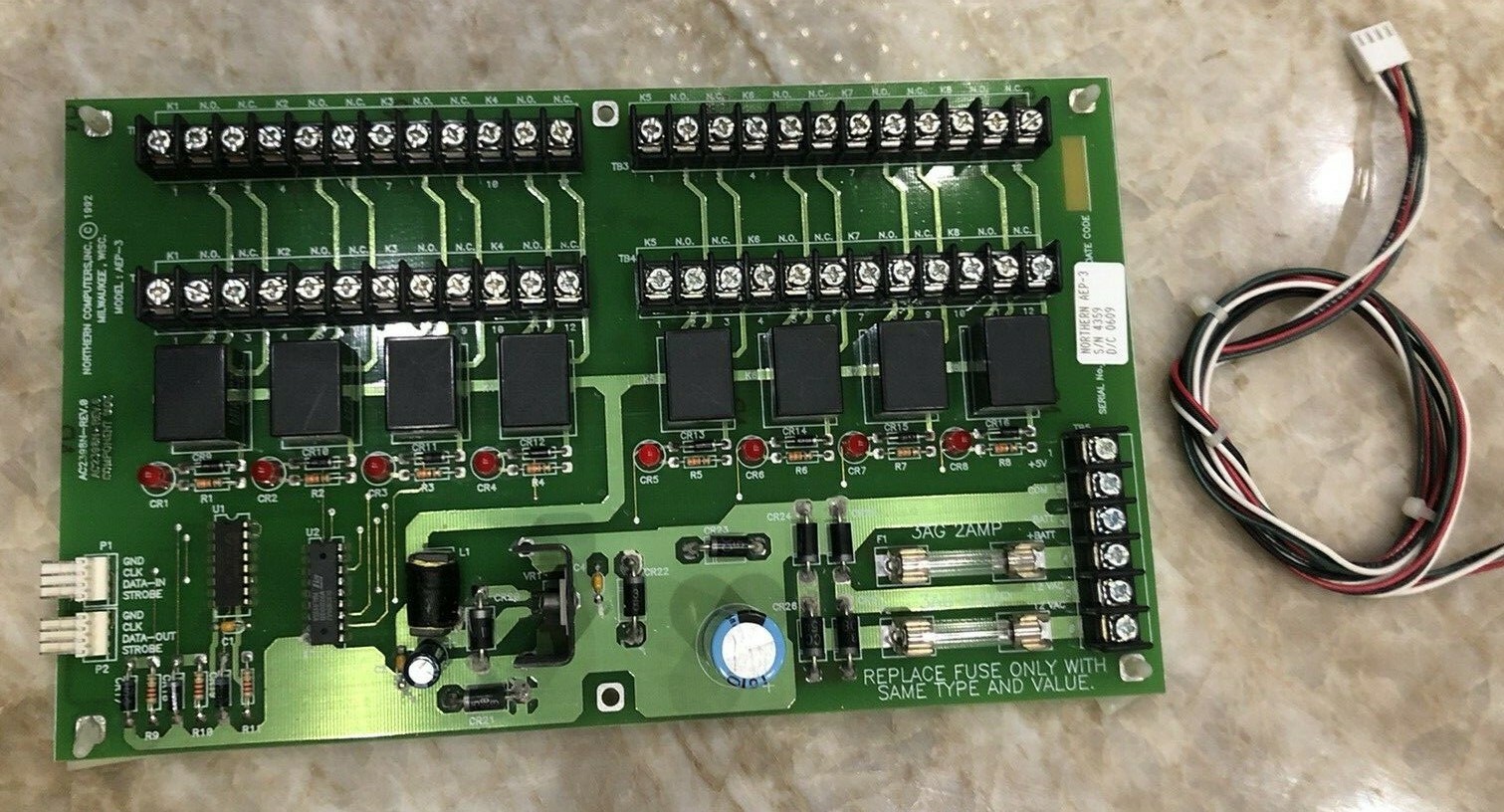

Northern Computers AEP-3 Supervised Alarm Relay Board, HoneywellShips via UPS Ground Northern Computers AEP-3 / AEP3 (Pulled from working site) Relay Expansion Board, 8 Outputs
Auxiliary output board. Provides 8 additional relay outputs to any N-1000 panel with version 5.10 ornewer firmware (excluding version 6). Up to two AEP-3 boards per N-1000 panel. Can be mountedon the inside cover of the N-1000 control panel or separately in the ENC-1 enclosure. Contactsare DPDT. Includes interconnecting cable (AEP-3-CBL). Requires separate 12 VAC 20 VA transformeror 12 VDC power supply, linear @ 500 mA). Current draw is 150 to 325 mA. Dimensions: 6" H x 10"W x 1.75" D, (15.24 cm H x 25.4 cm W x 4.445 cm D). Operatingtemperature range: 35°-110° F (2°-43°C) Comes with AEP-3-CBL, AEP-3 Interconnecting Cable. Used to connect two AEP-3 relay boards or for use between AEP-3 and N-1000 panel.
