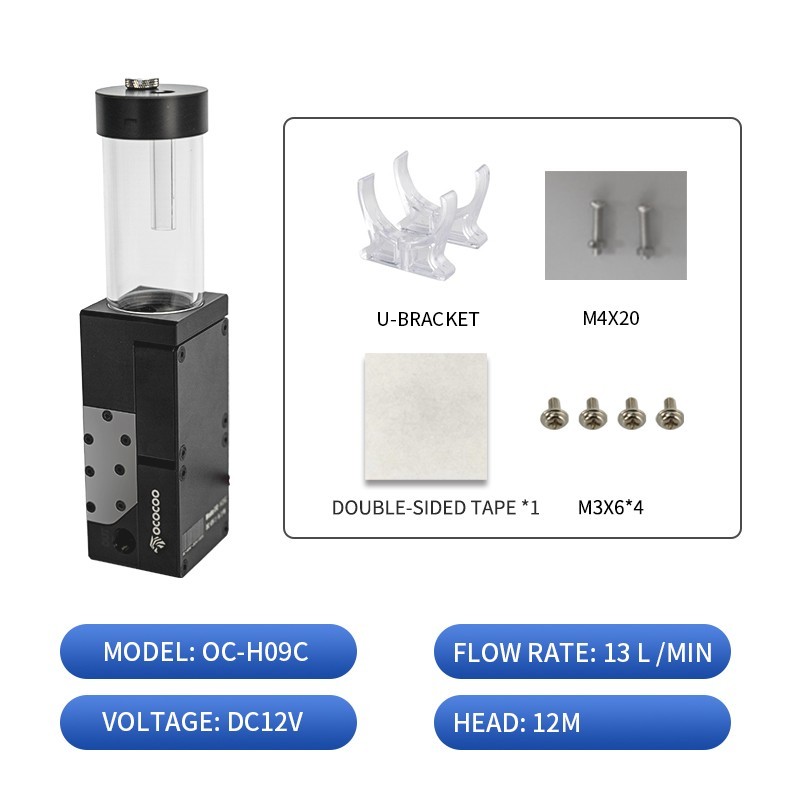

Product parameters:Model: OC-H09C Rated voltage: DC12 (V) /DC24VVoltage range: 8-13V Rated current: 2.3A±10% Rated power: 28W Maximum flow : 13±15%L/min Maximum lift: 12±1M Material: POM+PPS+ acrylic Noise: ≤40DBA/ level at 1 meter Sealing: ≤0.2Mpa Size: 253mm*55mm*62mmInsulation class: E (120℃) Weight: About 970g FG response: open leakage output, speed PRM=30*F Speed control: PWMFeatures:Three-phase brushless DC motor, support PWM speed regulation.Transparent reservoir for easy observation of liquid flow. Core Features of OCOCOO OC-H09C Water Cooling Pump
Dual Core Redundant Design：Innovative parallel dual pump structure delivers max 12m high lift, doubles water flow vs single pump, easily handles complex loops with multiple radiators/GPUs. Redundant design ensures basic circulation even if one pump fails, fully protecting your hardware from overheating.
All-in-One Pump Reservoir Combo：Integrated transparent acrylic reservoir simplifies loop layout, saves chassis space, and makes water filling & air bleeding much easier. Universal G1/4 thread fits all mainstream water cooling fittings.
Ultra Stable & Long Lifespan：3-phase brushless DC motor, 12V/24V optional, 50000+ hours service life, supports 7/24 continuous operation, perfect for gaming PCs and industrial cooling.
PWM Smart Control & Low Noise：4-Pin PWM connector supports motherboard intelligent speed regulation, dynamically adjusts speed based on hardware temperature, balancing cooling performance and noise reduction. Optimized impeller & shock absorption design ensures quiet operation even under high load.
Wide Compatibility：Fits all mainstream PC water cooling systems, industrial laser equipment, automation devices, new energy equipment cooling and more.Product parameters:
Model: OC-H09C
Rated voltage: DC12 (V) /DC24V
Voltage range: 8-13V
Rated current: 2.3A±10%
Rated power: 28W
Maximum flow : 13±15%L/min
Maximum lift: 12±1M
Material: POM+PPS+ acrylic
Noise: ≤40DBA/ level at 1 meter
Sealing: ≤0.2Mpa
Size: 253mm*55mm*62mm
Insulation class: E (120℃)
Weight: About 970g
FG response: open leakage output, speed PRM=30*F
Speed control: PWM
Features:
Three-phase brushless DC motor, support PWM speed regulation.
Transparent reservoir for easy observation of liquid flow.
