QUANTA RACK WITH SERVER AND SWITCHESBUNDLE LISTING - ALL 4 UNITS INCLUDED

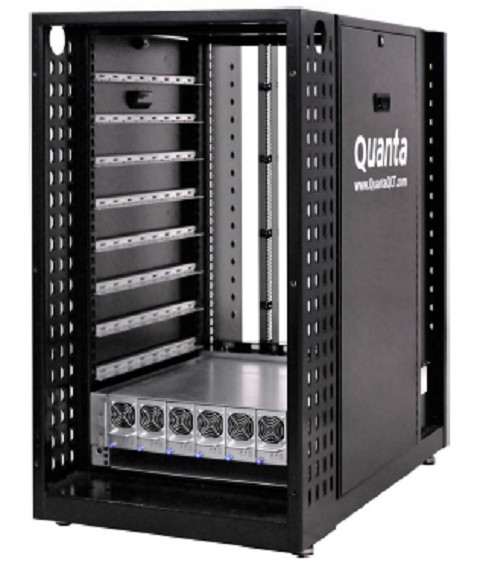

INCLUDES:(1x) OCP 1/2 rack with 6x redundant PSUs and network card, 7x (2U) shelves, and 1x 19" 1U shelf (QUANTA)(1x) F03A 4-node server with dual CPUs per node, 4x 2.55" HDD bays, VGA-out, 1G and 10G NIC (QUANTA) - Nodes are equipped with CPUs, DRAM, and 1 hdd/node(1x) ECS-4610-50T 48x 1GbE and 4x 10GbE ports, L2+ switch (EDGE-CORE)(1x) ECS-5510-48S 48x 10GbE ports, L2+ switch (EDGE-CORE)
F03A QUANTA:- Designed for the highest compute density with four nodes in a 2 OU space- Each node can install up to two STADOMs for the operating system and up to four extra hot-swappable SSD/HDDs for cache or data storage- RAID-ready configuration preserves data integrity and avoids data corruption- Enhances system MTBF by 58% compared to other conventional 2U4N systems in the market - This will avoid system downtime caused by component failure and minimize maintenance efforts- offers an optional dual-port 10Gbps SFP+ mezzanine card with an ASPEED 2300 chip, providing VGA-redirection for data centers requiring on-site troubleshooting- Mezzanine slot: PCle Gen3 x8 OCP network mezzanine slot- PCle slot: - Option 1: (1) PCle Gen3 x8 LP MD-2 - Option 2: (2) PCle Gen3 x8 LP MD-2
ECS-4610 EDGE-CORE:- Includes two stackable Gigabit Ethernet routing switches- Ideal for service provider edge aggregation, enterprise wiring closets, data center aggregation, and network core deployment- Provides high performance, resilient stacking, wire-speed L2 switching and L3 routing, and comprehensive QoS- Advanced security to deliver the scalability and resiliency to increase your company's productivity while reducing operation costs- Support IPv6 Dual Protocol Stack and IPv6 management functions in SNMP / HTTP / TELNET / TFTP / ICMP, SSH, RADIUS / TACACS+ authentication and IPv6 QoS remapping- Resilient Stacking up to 8 units with 320 Gbps throughout- 2 x 10GB extender module slots for XFP transceivers- Advanced routing protocols such as RIP and OSPF provide dynamic routing
ECS-5510 EDGE-CORE:- 48-port 10G Ethernet L2 switch designed from the ground up to be deployed in medium to large data centers- With unmatched port density and speed, the ECS 5510 is ideally suited for converged Ethernet applications such as 10 Gigabit Ethernet traffic aggregation and Fibre Channel over Ethernet (FCoE) storage solutions for LAN, SAN, and IPC networks- 48 x 10GB SFP+- Capable of 960GB of network throughput- Dual hot-swappable power supplies- Data center level with simple and flexible management capability- Continuous availability and high performance energy efficiency- Includes 1x AC power supply
FEEL FREE TO CONTACT US WITH ANY OFFERS OR QUESTIONS
*****PLEASE NOTE:*****
TAXES ARE THE RESPONSIBILITY OF THE BUYER
ALL SHIPPING/PICKUP IS THE RESPONSIBILITY OF THE BUYER
IN "AS-IS/WHERE-IS" CONDITION
AVAILABLE FOR INSPECTION PRIOR TO PURCHASE
AVAILABLE FROM MACROTRON SYSTEMS
