Product description Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 136 4.8 out of 5 stars 8 5.0 out of 5 stars 1 4.9 out of 5 stars 100 4.8 out of 5 stars 14 4.7 out of 5 stars 130 Price $8.99$8.99 $17.99$17.99 $9.99$9.99 $11.99$11.99 $11.99$11.99 $11.99$11.99 Length Options 7in~500ft 3ft~500ft 1.6ft~500ft 7in~500ft 1.6ft~200ft 7in~500ft Fiber Mode Multimode Multimode Multimode Multimode Multimode Singlemode Data Rate 40G/100G 40G/100G 40G/100G 10G/40G 1G/10G 1G/10G Connector LC/UPC to LC/UPC LC/UPC to SC/UPC SC/UPC to SC/UPC LC/UPC to LC/UPC LC/UPC to LC/UPC LC/UPC to LC/UPC LSZH Jacket ✓ ✓ ✓ ✓ ✓ ✓ Outer Diameter 2.0mm 2.0mm 2.0mm 2.0mm 2.0mm 2.0mm Min. Bend Radius(Fiber Core) 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 16mm Min. Bend Radius(Fiber Cable) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) RamboCables OM4 LC to LC Fiber Patch Cable Multimode Duplex
OM4 Multimode Fiber Patch Cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
More length options to suit your cabling needs: 0.2m(7inch)~153m(500ft)
10G Ethernet Max Distance: 400Meters at 850nm
40G Ethernet Max Distance: 350Meters at 850nm
100G Ethernet Max Distance: 125Meters at 850nm
Product Specifications:
- Fiber Core: High Rated 50/125um Fiber and Cladding
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Wavelengths: 850nm and 1300nm
- Attenuation at 850nm: 3.0 dB/km
- Attenuation at 1300nm : 1.0 dB/km
- Operating Temperature: -20~70°C
UPC Ceramic Ferrule
The fiber optic connector uses industry standard high precision ceramic ferrule. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures stable signal transmission. Improve the speed and flexibility of optical signal propagation.
Connector Dust Cap
The connector Dust Cap can protect fiber optic connectors from external environmental pollution and external force damage, preventing severe network slowdown or network failure.
Easy To Install
The OM4 fiber optic patch cable is plug and play, and the protective cover of the connector from Germany at both ends of the patch cable is marked with the numbers 1 and 2, which is easy to identify when you install it.
Ethernet Max Distance of Fiber Types

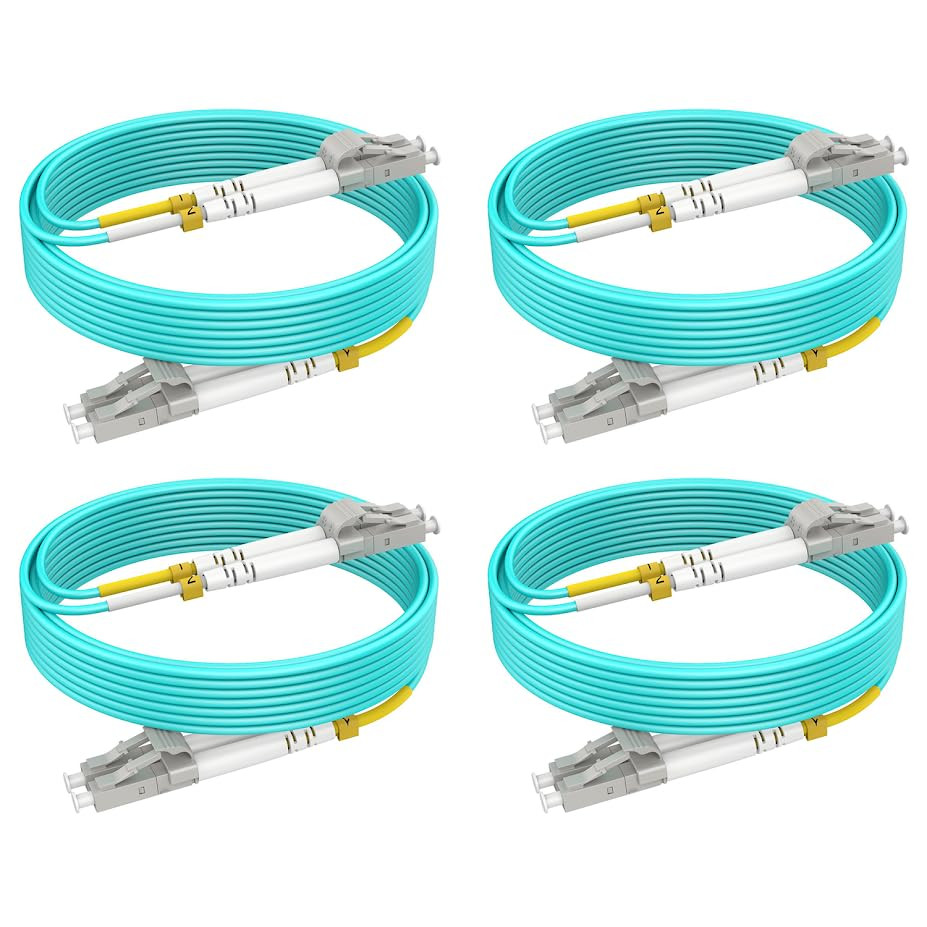

- 【3ft/1m 4pack OM4 Fiber Optic Patch Cable】 RamboCables OM4 LC to LC fiber patch cable multimode duplex has a 50/125μm high rated fiber cladding, 850/1300nm Wavelength, 2.0mm fiber cable diameter and environmentally friendly LSZH fiber jacket. OM4 multimode LC to LC fiber patch cables ensure a more stable and efficient network for you.
- 【Wide Usage】OM4 MMF is the preferred fiber specification for 40G Ethernet connections. OM4 LC to LC Multimode Duplex Fiber patch cords is specially designed for connecting 10G SR, 40G offerI SR, QSFP+, SFP+ transceivers etc, ideal for 10G/40G/100G Ethernet connections. RamboCables OM4 LC-LC optic fiber patch cables saving more space for your high density cabling in data centers, enterprise networks, telecom room and any places patch cables are needed.
- 【Transmission Distance】OM4 LC to LC fiber patch cables have a 4700 MHz·km @850nm bandwidth, allow for 10Gb Ethernet transmission distance of 400Meters at 850nm wavelength; 40Gb Ethernet transmission distance of 350Meters at 850nm wavelength; 100Gb Ethernet transmission distance of 125Meters at 850nm wavelength.
- 【Why to Choose】OM4 LC to LC multimode fiber optic patch cables are Constructed with LSZH environmentally friendly Jacket. Fiber cables Insertion Loss: ≤0.3dB, Return Loss: ≥30dB, operating temperature: -20~70°C. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures a stable signal transmission(Accordance with EIA/TIA 604-2, 100% inspected), bend radius at 7.5mm, enables smaller enclosures and provides a smooth and stable transmission for your network.
- 【Standards & Reliability】With over 15 years of experience manufacturing fiber patch cords, RamboCables are dedicated to supplying high-quality products and services. Our fiber patch cables comply with industry standards to enable efficient network transmission.
