Product description Industry Standard Material

• High-standard grinding equipment are used
• Ensure that the surface of the fiber core is free from scratches and defects
• Meet high speed cabling networks

Premium Ceramic Ferrule

• High return loss
• Low insertion loss
• Low attenuation

Strong Resistance to Pull

• LSZH Jacket Low Smoke Zero Halogen
• Lightweight, flexible and flame retardant, easy peeling&welding
• Allows tighter or bending cable routing

Strict Quality Control

• Factory-based maker
• Optimum IL and RL ensure stable signal transmission
• Provide precise alignment to ensure the signal integrity

OM4 Duplex Multimode SC-LC Fiber Optic Cable Specifications Fiber Type OM4 SC to LC Polish Type UPC to UPC Fiber Count Duplex Ferrule Material Ceramic Cable Diameter 2.0mm Bandwidth 4700 MHz·km @850nm Wavelength 850nm and 1300nm Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km Min. Bend Radius(Fiber Core) 7.5mm Min. Bend Radius(Fiber Cable) 20D/10D (Dynamic/Static) Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 15 4.6 out of 5 stars 8 4.8 out of 5 stars 179 4.8 out of 5 stars 59 4.8 out of 5 stars 6 4.8 out of 5 stars 375 Price — no data $9.99$9.99 $9.89$9.89 $6.99$6.99 $7.69$7.69 $6.99$6.99 Data Rate 10G/40G/100GB 10G/40G/100GB 10G/40G/100GB 1G/10GB 1G/10GB 1G/10GB Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB Return Loss ≥30dB ≥30dB ≥30dB ≥50dB ≥50dB ≥50dB LSZH Jacket ✓ ✓ ✓ ✓ ✓ ✓ Min. Bend Radius(Fiber Core) 7.5mm 7.5mm 7.5mm 16mm 16mm 16mm Min. Bend Radius(Fiber Cable) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) Fiber Grade Bend Insensitive Bend Insensitive Bend Insensitive G652D G652D G652D Indoor ✓ ✓ ✓ ✓ ✓ ✓

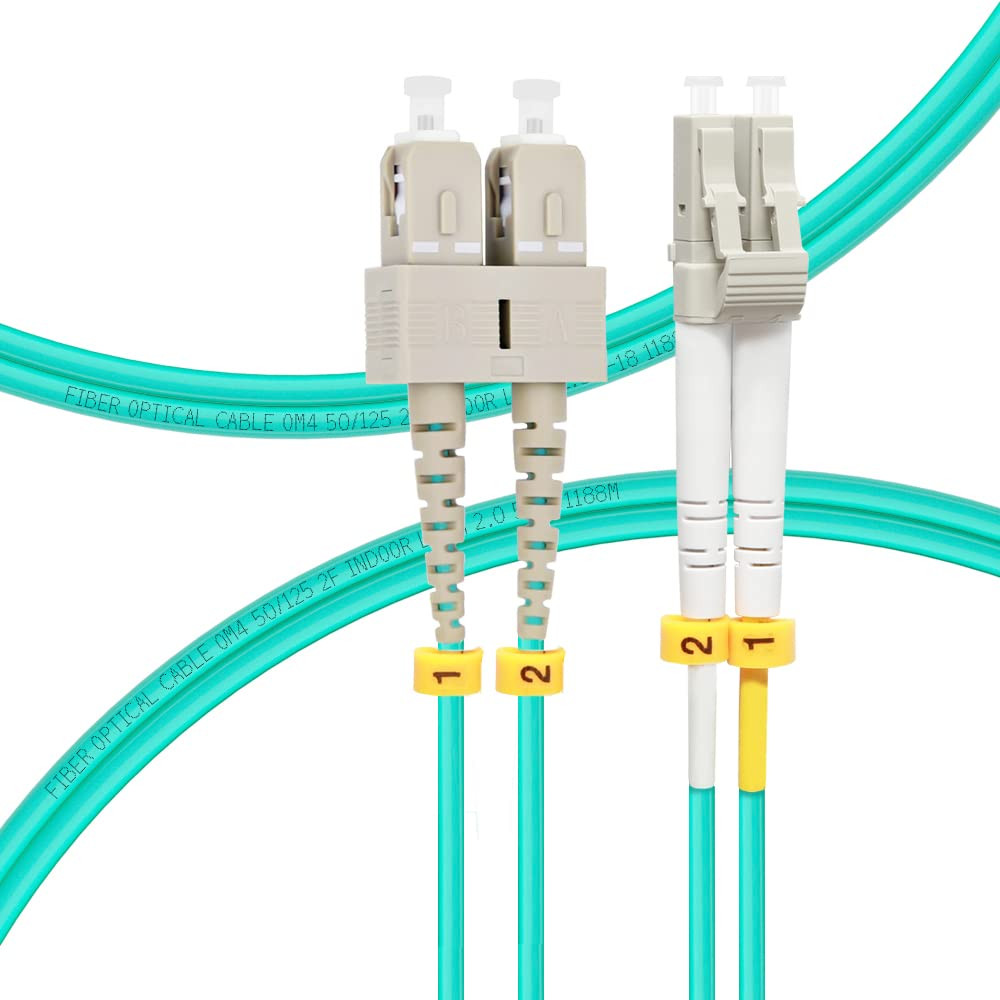

• 📡2M(7ft) OM4 SC-LC Fiber Optic Patch Cable Multimode 40/100Gb is designed for high density applications in fiber channel, local area networks, data center, premise installation, wide area networks, commercial and so on. Ideal for connecting 40G offerI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections. And it's the preferred fiber specification for 40G/100G connections.
• 📡Maximum Transmission Distance - 1Gb Ethernet Distance of 550Meters at 850nm; 10Gb Ethernet Distance of 400Meters at 850nm; 40Gb Ethernet Distance of 350Meters at 850nm; 100Gb Ethernet Distance of 125Meters at 850nm. Bandwidth is 4700 MHz·km @850nm.
• 📡7.5mm Minimum Bend Radius - High Rated 50/125um Fiber and Cladding, which is Insensitive to bending, easy peeling, easy welding, ensures small optical loss and stable transmission (insertion loss≤0.3dB, return loss ≥30dB.), Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high-density installations with cables crammed into an extremely small footprint.
• 📡Construction Design - LSZH environmentally friendly Jacket; Adjustable connector clips allow individual fiber access; Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing, testing, and troubleshooting equipment connections; UPC polish and Japan made zirconia ceramic ferrules with high return loss, low insertion loss, and low attenuation features, provide precise alignment to ensure the signal integrity.
• FLYPROFiber has been focusing on fiber optics for 15 years. Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional customer service team. If you have any questions, please contact us promptly.
