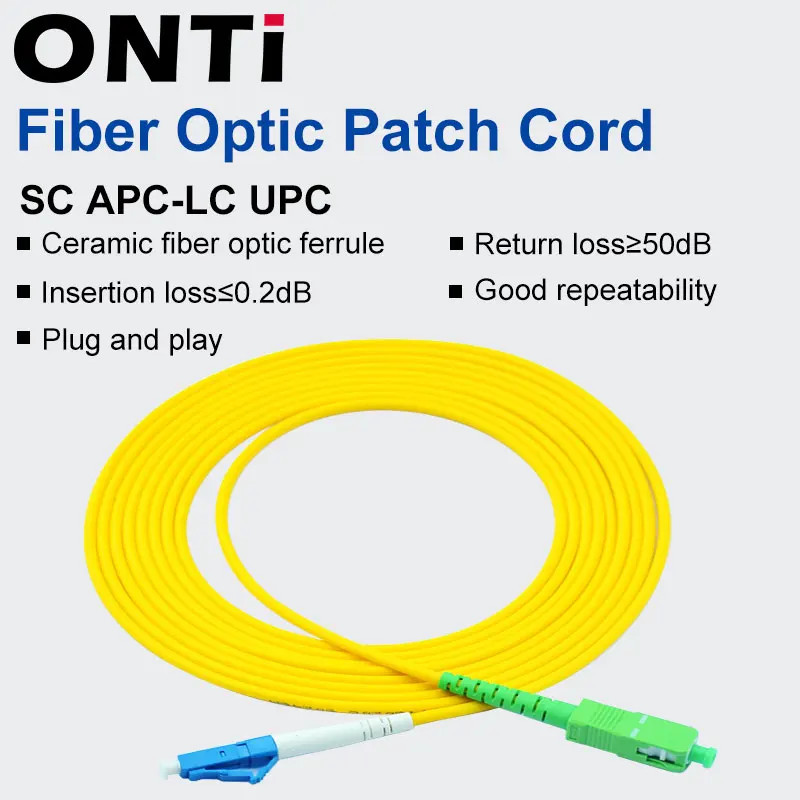

🔌 ONTi Professional Fiber Optic Patch Cord
SC/APC to LC/UPC Single Mode Connection
✨ Key Features🎯 Professional Grade Quality
Telecom and carrier-class rated fiber optic cable with SC/APC to LC/UPC connectors for reliable single mode connections
📡 Superior Performance
Low insertion loss (0.08-0.2dB) and high return loss (≥50dB) ensure optimal signal transmission with minimal interference
🛡️ Durable Construction
2.0mm PVC jacket protects G652D single mode fiber from environmental damage while maintaining flexibility
🏢 FTTH Ready
Perfect for fiber-to-the-home installations, data centers, telecom networks, and enterprise networking applications
📊 Technical SpecificationsBrandONTiFiber TypeSingle Mode G652DConnector TypeSC/APC to LC/UPC (Simplex)Cable Diameter2.0mmJacket MaterialPVC (Polyvinyl Chloride)Insertion Loss (IL)0.08-0.2dBReturn Loss (RL)≥50dBQuality StandardTelecom Grade, Carrier-ClassColorYellow with Green/Blue Connectors📦 Package Contents
What's Included:
• ONTi SC/APC-LC/UPC Fiber Optic Patch Cord (quantity and length as selected)
Available Options: Multiple lengths from 1m to 100m, available in bulk packs or single units
❓ Frequently Asked QuestionsQ: What is the difference between SC/APC and LC/UPC connectors?
A: SC/APC (green) uses an 8° angled polish for lower return loss and is typically used on the network side. LC/UPC (blue) uses a flat polish and is commonly used on equipment side. This hybrid configuration is standard for many FTTH and telecom applications.
Q: Is this compatible with my fiber optic equipment?
A: This cable is designed for single mode fiber networks using standard SC and LC connectors. It's compatible with most FTTH systems, OLT/ONU equipment, media converters, and fiber switches that use these connector types.
Q: What does G652D fiber specification mean?
A: G652D is the ITU-T standard for single mode fiber optimized for 1310nm and 1550nm wavelengths. It's the most common fiber type used in telecommunications and provides excellent performance for data transmission over long distances.
Q: Can I use this for outdoor installations?
A: This cable has a PVC jacket suitable for indoor and protected outdoor use. For direct burial or harsh outdoor environments, an armored or outdoor-rated cable would be recommended.
