• MST Support
• 8K Ultra-HD Video Support
• Multiple Switching Modes

Key Features:

• MST Support– Allows extended displays from both computers.

• High-Speed USB Connectivity– Three USB-A 3.0 and one USB-C 3.0 device ports support data transfer speeds up to 5Gbps.

• 8K Ultra-HD Video Support– Delivers resolutions up to 8K@60Hz (YUV 4:4:4), 4K@120Hz, 2K@120Hz, and 1080p@240hz for crystal-clear, high-detail imagery.

• HDR & 3D Video Compatible– Supports HDR10, HDR10+, Dolby Vision, HLG with 3D video support at 1080p.

• HDCP Compliant– Fully supports HDCP 2.3 for encrypted content and premium video playback.

• Advanced Audio Support– 3.5mm audio output for headphones and speakers. Support for uncompressed LPCM and compressed DTS-HD Master Audio™, and Dolby TrueHD through HDMI.

• Multiple Switching Modes– Switch between connected hosts using the top-panel button or the included wired remote control.

• Deep Color & High Bandwidth– Supports 12-bit deep color, TMDS clock up to 1200MHz, and bandwidth up to 48Gbps (12Gbps per channel).

• CEC Support– Enables seamless control integration with compatible HDMI devices.

• User-Friendly Plug-and-Play Operation– No driver installation required.

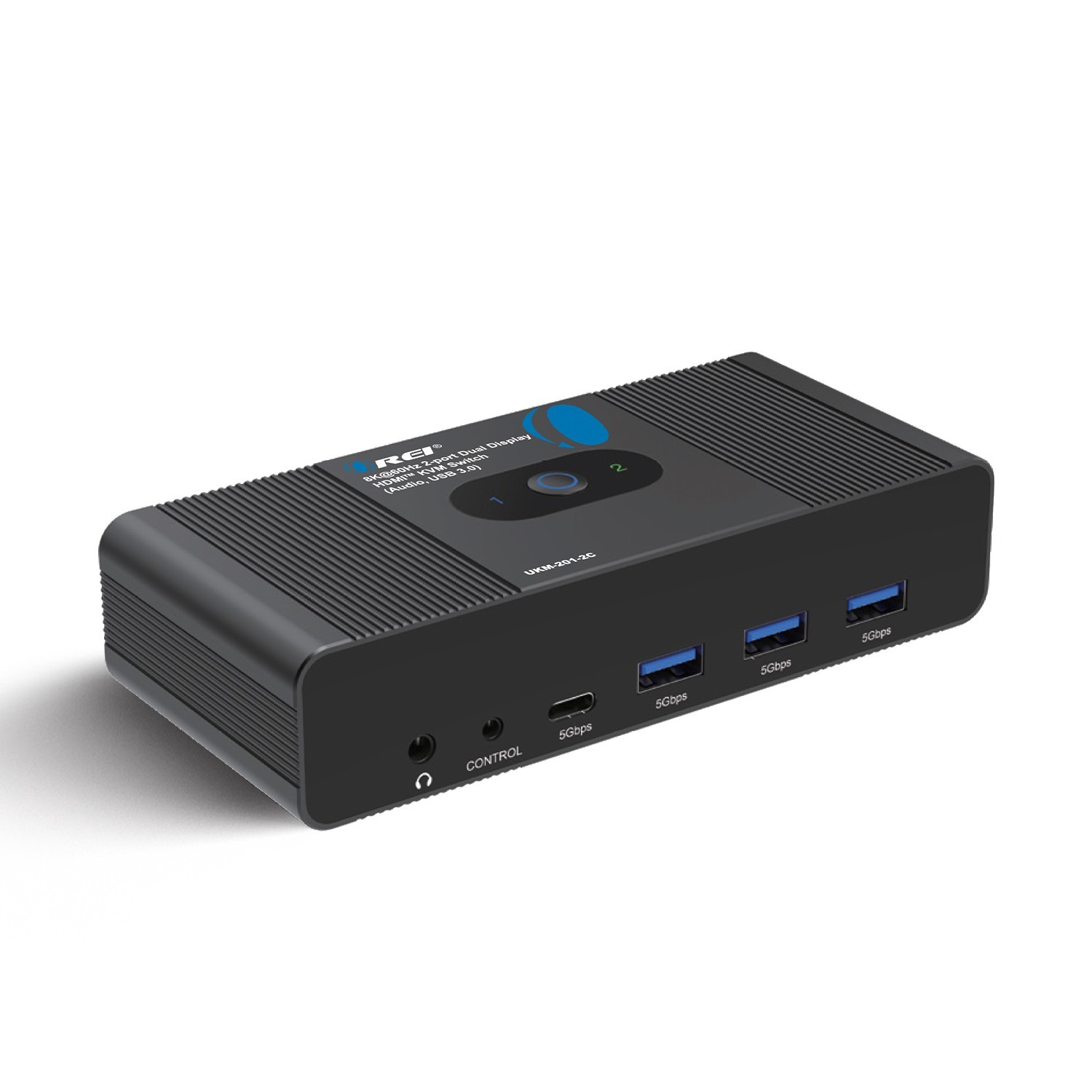

The UKM-201-2C is a high-performance 8K HDMI KVM Switch that lets you control two computers using one set of peripherals and dual external displays. It supports dual HDMI 8K@60Hz (YUV 4:4:4) with HDR10, HDR10+, Dolby Vision, HLG, 3D at 1080p, and HDCP 2.3. The dual HDMI outputs support Extend Mode (MST) for running different content on two screens. It features 12-bit Deep Color, 48Gbps bandwidth, CEC, and advanced audio including Uncompressed LPCM, and Compressed Dolby TrueHD, and DTS-HD Master Audio over HDMI. Supported resolutions also include 4K@120/144/165Hz, 2K@60/120/144/165Hz, and 1080p@120/144/165/240Hz. With three USB-A 3.0 ports and one USB-C 3.0 device port, it allows fast (5Gbps) sharing of keyboards, mice, SSDs, touchscreens, and other peripherals between both systems. A 3.5mm stereo audio output is included for flexible monitoring with speakers or headsets.

Switching between computers is simple via the top button or wired remote, ensuring smooth workflow transitions. Compact and built for advanced multi-display setups, it’s ideal for commercial workstations, creative studios, and high-efficiency home offices.

Note: Extended display mode requires two HDMI outputs and MST support. macOS laptops support only SST, so extended displays will not work on Macs.
