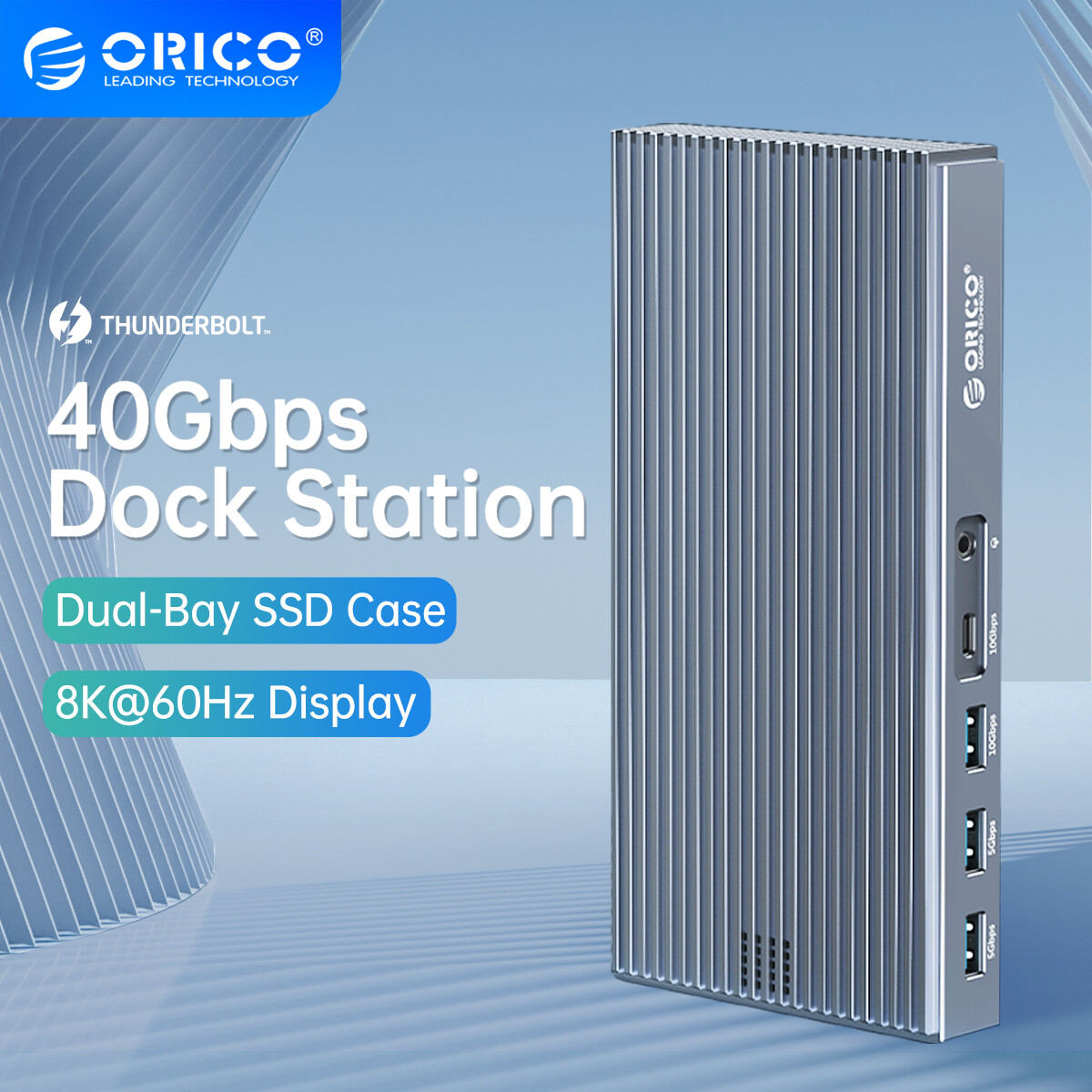

ORICO Docking Station for Thunderbolt 3 9-in-1 Dual-Bay M.2 NVMe/NGFF USB-C Docking Station

Characteristics :

A. The Thunderbolt 3 docking station only requires one Thunderbolt 3 cable to charge MacBook Pro at full speed while simultaneously connecting two 4K monitors (one via DP, one via Thunderbolt 3 interface) or an external 5K, 8K Bring high-speed data transfers up to 40Gbps and take full advantage of the flexibility of the USB-C Thunderbolt 3 interface to output power/display/data simultaneously!

B. Supports two Thunderbolt 3 ports A and B. Port A connects to a Mac that supports Thunderbolt 3; Port B supports high-speed 40Gbps data transfer, which allows daisy-chaining up to 6 other Thunderbolt 3 devices to connect to a laptop and expand the number of arrays, as well as other iPhones, iPads, or USB Type-C HUB devices and provide 15W power adapter, also can connect external graphics card and matrix hard drive.

C. Supports single 8K@60Hz (7680x4320), 5K@60Hz (5120x2880) UHD or dual 4K@60Hz display output.

D. Thunderbolt 3 Port A supports PD 60W charging (5V/9V/15V/20V@3A).

E. Thunderbolt 3 Port B supports PD 15W (5V@3A) charging; supports 40Gbps high speed data transfer.

F. USB3.1 Gen 2 A port supports 1000MB/s and 5V at 1.5A.

G. USB3.1 Gen 1 A port supports 500MB/s and 5V at 1.5A.

H.USB3.1 Gen 2 Type-C supports 1000MB/s and 5V at 3A.

Quad-core cooling design, fast cooling

• All aluminum alloy + striped cooling fins, built-in fan 9, accelerate heat dissipation and reduce dry heat during use.
• Reminder: the outside temperature exceeds the body temperature, which is a normal phenomenon; The internal temperature is reduced because the heat is transferred by conduction.

Interface:

A. Thunderbolt 3 E/A40Gbps x 2

B. DP interface 1.4 x 1

C. USB3.1 Gen 2 10Gbps A port x 1

D. USB3.1 Gen 1 5Gbps A port x 2

E. USB3.1 Gen 2 10Gbps Type-C x 1

F. 10/100/1000M Gigabit Ethernet Port x1

G. Audio in and out x1

H. 24V/5A DC IN x1

The following hard drives are supported

• Support built-in M.2 B KEY (NGFF) protocol up to 2T SSD hard disk 6Gbps/S
• Support built-in M.2 M KEY (NVME) protocol, maximum 2T SSD disk 10Gbps/S
  The dimensions are 22X80

Independent 3.5mm Audio Jack

• The 3.5mm standard audio jack is compatible with most audio devices on the market, and audio is input and output simultaneously

Gigabit Ethernet Port

• Provide a more stable network environment, support backward compatibility, no frame drop, no packet loss, smooth game

3 Port Charging

• PD60W can power computers, DC120W power supply port can power high-power devices, and PD15W can power mobile phones

Packing list:

• 1.Productx1
• 2.Power Supply: External universal power supply (120W/24V@5A) x1.
• 3.0.5 m Thunderbolt 3 Cable x1.
• 4.Screwdriverx1
• 5.Silicone thermal pad x2
• 6.Packing box x1.

Support system

• A. Mac OS X 10.12 and and above.
• B. Windows 8/10 32 and 64 bit and above.

• Meet a variety of creative needs, provide easy operation expansion, and create a comfortable and tidy workspace.
• This Dock is the best choice for photographers, editors, graphic designers and 3D modelers.

Tipps:

• 1. The theoretical transfer rate of Thunderbolt 3 interface is 40Gbps, and a 40Gbps Thunderbolt 3 certified cable is required. The above speed is obtained through the ORICO laboratory test, and the specific speed of use is subject to the actual situation.
• 2. Thunderbolt 3 interface supports single-port output 8K@60Hz (7680x4320), 5K@60Hz (5120x2880) UHD or dual-port 4K@60Hz display output, DP1.4 8K@60Hz, supports backward compatibility.
• 8K resolution requires that the display device, device performance, and video or game screen support 8K. Please use officially certified Thunderbolt 3 cable and DP1.4 cable to ensure more stable connection effect.
• 3. The Thunderbolt 3 interface can daisy chain up to 6 Thunderbolt 3 devices to connect to a laptop and expand the number of arrays. It can also connect to other iPhone, iPad or USB Type-C HUB devices and provide 15W power delivery, as well as connect to external graphics cards and matrix hard drives.
• 4. This product is equipped with a 120W external charging power supply, which allows users to conveniently power external devices.
• 5. Thunderbolt 3 Port A supports PD 60W charging (5V/9V/15V/20V@3A). Thunderbolt 3 Port B supports PD 15W (5V @ 3A) charging;
• 6. Support built-in M.2 B KEY (NGFF) protocol with max 2T SSD 6Gbps/s and support M.2 M KEY (NVME) protocol with max 2T SSD 10Gbps/s, up to 4TB Capacity;
• 7.The 3.5mm standard audio connector can support input and output devices, and the computer host must be equipped with a sound card.
• 8. The network environment is 1000M to achieve 1000M broadband rate, and supports backward compatibility with 300M/200M/100M/50M/20M/10M and other bandwidths;
• 9. The heat dissipation area of this product is three times that of the docking station of the same area, and a heat dissipation fan is employed inside. When the function is fully loaded, the outside temperature exceeds the body temperature. Since the heat is transferred through the metal heat pipe, it does not affect the device operation;

*The data comes from the ORICO Digital R&D Center!
