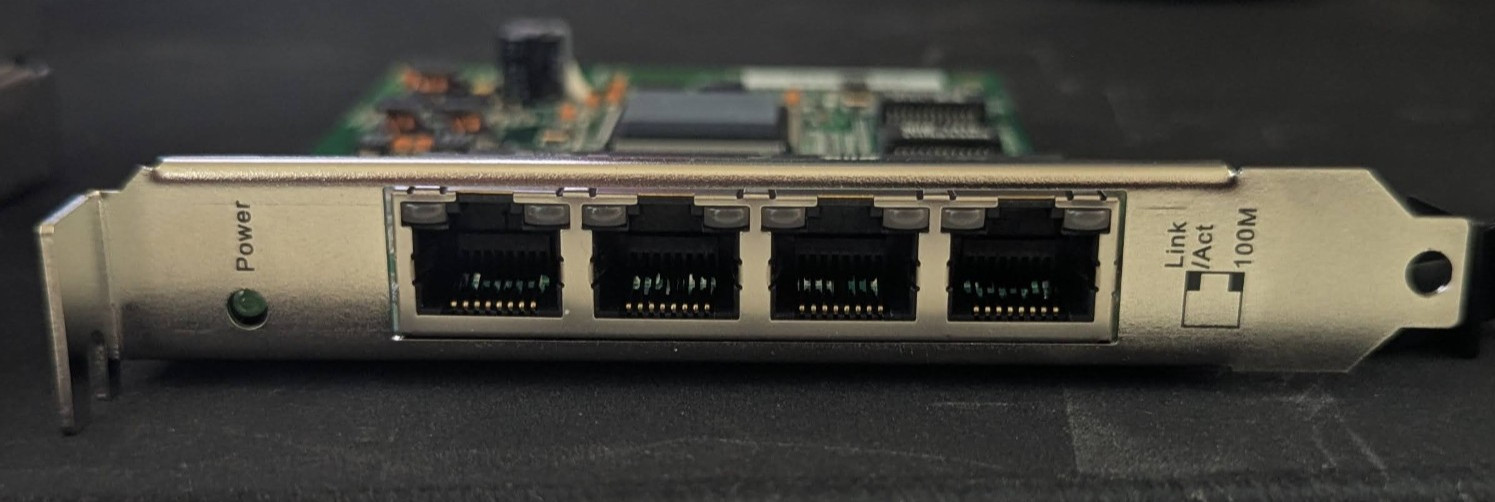

for sale: Oring IGCS-E140 EN50155 PCIe Unmanaged Ethernet Switch Card with 4FE
part number on the card 2151-4-IGPCS4040-1-04
This card was pulled from a working Verint Edge vr300 DVR box. It still has the 4 plastic port blockers to keep dust out of them, so I got the impression this card was never actually leveraged for use. But still selling it as used since it came from a DVR that I know was used.
I ship within 1 business day
Below is the description of this card from the vendor:
EN50155 PCIe Unmanaged Ethernet Switch Card with 4FEDescription
IGCS-E140 is an PCI-Express unmanaged Gigabit Ethernet switch card. The Ethernet switch card is a high-performance LAN controller. IGCS-E140 provided 4x10/100/1000Base-T(X) auto MDI/MDIX Ethernet ports. IGCS-E140 could be installed on any IPC motherboard with PCIe socket to make the IPC/embedded system able to communication with other Ethernet devices. The IGCS-E140's full bandwidth capability boasts a robust 1000Mbps capability through the PCI Express bus architecture. IGCS-E140 no need to purchase a new switch or broadband router because the auto-negotiation feature works with your existing switch, broadband router, or hub to provide the highest network speed available. The automatic full duplex capability further increases bandwidth and eliminates packet collisions by allowing data to flow in both directions at the same time. Therefore, IGCS-E140 is the best solution to IPC/embedded system to feature Ethernet network.
Features
- 4x 10/100/1000Base-T(X) Ethernet ports
- Supports PCIe x1 bus and compatible x4, x8 and x16 PCIe slots
- Compliant with PCIe Rev.1.1 Interface
- Supports 10K Bytes Jumbo Frame
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
