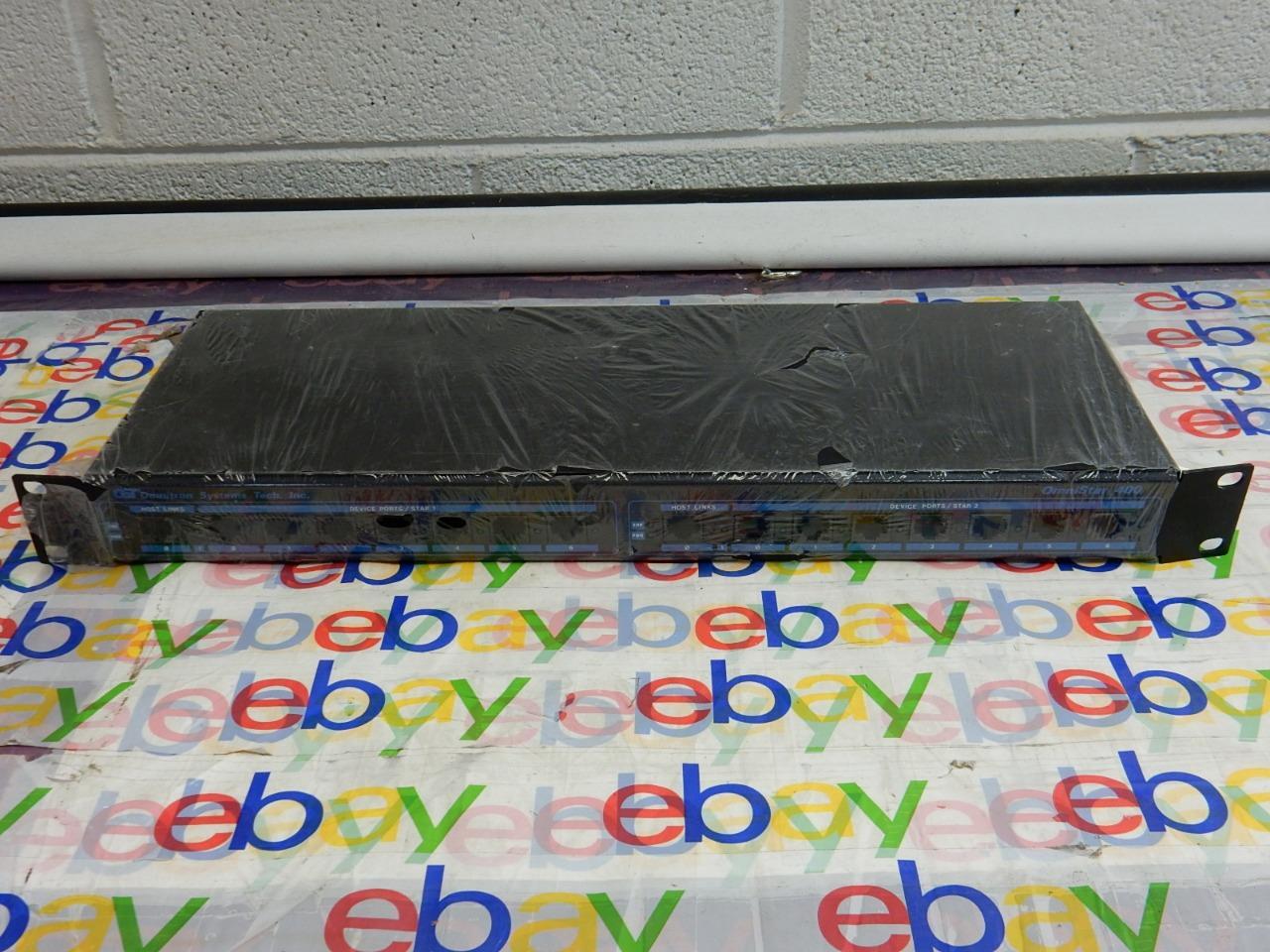

Omnitron Systems OmniStar 400 2503-UTU1/D AS400/3X 5250 Rackmount Star Repeater Omnitron Systems OmniStar 400 2503-UTU1/D AS400/3X 5250 Rackmount Star Repeater

Click images to enlarge

Description Up for sale is a New Omnitron Systems OmniStar 400 2503-UTU1/D AS400/3X 5250 Rackmount Star Repeater. This unit is still sealed in the original shrink wrap.

Included in Listing:

• 1) New Omnitron Systems OmniStar 400 2503-UTU1/D AS400/3X 5250 Rackmount Star Repeater

Product Details:

• Inputs: The OmniStar 400 is built around a Digital Phased Locked Architecture (PLA). This technology facilitates effective discriminating between true data and noise. A port priority mechanism provides isolation between ports, thus reducing any crosstalk effect. The incoming Manchester encoded data is sampled at 16 samples per bit, which facilitates digital filtering of noise and crosstalk. A unique clock recovery facilitates the capture of data with rate variations of -2% to +4%.
• Processing: Once the data is recovered and synchronized, it is processed. The processor analyzes the frame header. If a legal header is detected, the port is "marked" active and the data is allowed to flow through the star.
• Outputs: The retransmitted data is regenerated, reclocked and lost sync bits are recovered. The data is reclocked at 50% duty cycle to eliminate clock jitter. The signal is restored to nominal amplitude and the pre-distortion logic compensates for anticipated phase shift and attenuation.
• Displays: True data activity and parity errors are displayed by green and red LEDs. The green activity LEDs assist in monitoring signal strength and polarity while the red Parity Error LED assists in monitoring connectivity quality, signal strength, impedance mismatches and reflections.

Product Specifications:

• Protocols IBM 5250 for Systems AS/400 and 3X
• Interface: 10,240 byte max frame size
• Host: Two (2) Twinax, Two (2) UTP RJ11/45
• Device: Seven (7) RJ11/45 (RJ11 pins 3-4, RJ45 pins 4-5 are standard)
• Cable Types
  • Twinax: IBM 7362229 or equivalent
  • UTP: Category 3 (EIA/TIA 568) or higher, (shorter distance @ lower grade)
• Data Rate:
  • ​Standard 5250: 1 Mbps -2%, +4%
• ​Supported Distances:
  • ​Twinax: 5,000 ft.
  • UTP: 3,000 ft.
• ​Physical features:
  • ​Rackmounted: W:19.0"xD:6.0"xH:1.75"
  • Tabletop: W:17.5"xD:6.0"xH:1.75"
  • Weight 7 lbs.
  • Power: 115 or 230 VAC, 150 mA
