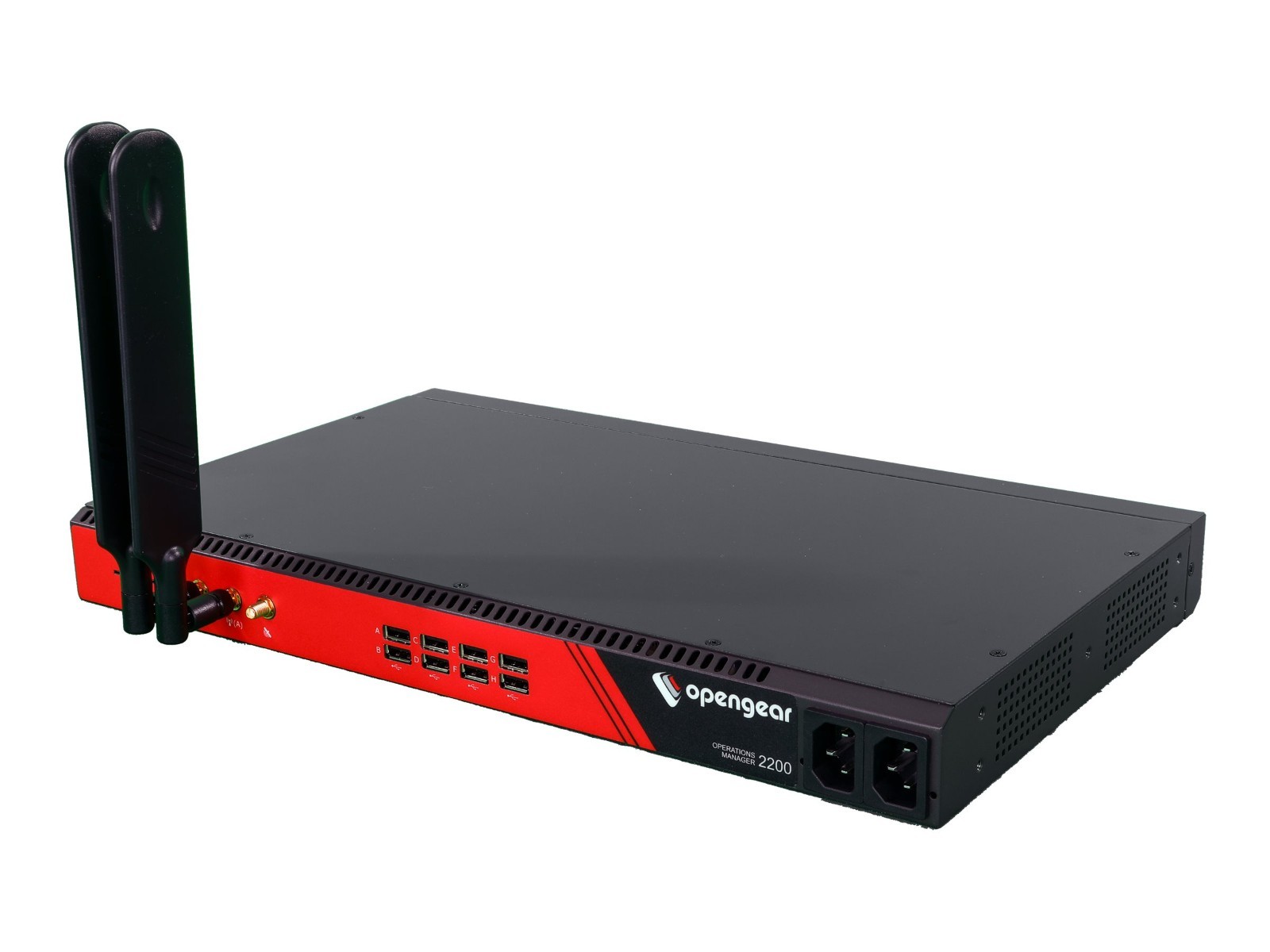

Opengear OM2224-24E-L Operations Manager OM2200 4G LTE 48-Port Switch
Switch in is excellent physical and functional condition. Server mount kit is installed. Includes antennas.
OM2224-24E24 x Selectable RJ45 RS-232 Ports and 24 x Managed 10/100/1000 Base-T Switched Ethernet PortsInterfacesPrimary/Secondary Network Ports2 x 10/100/1000 Ethernet/SFP Fiber auto-media ports (1GbE chassis)
2 x SFP+ (10G only) Fiber and 1 x 10/100/1000 Base-T Ethernet (10 GbE chassis)Local Console Ports1 x micro USB 2.0 Console Port and 1 x RJ45 Serial (Straight Pinout)Managed Serial Ports16, 32, or 48 x RJ45 RS-232 Software Selectable 50 to 230,400 bps Console PortsUSB Ports2 x USB 3.0 Host Ports for storage and 8 x USB 2.0 ports for device console managementManaged Switch Ethernet Ports24 x managed 10/100/1000 Base-T switched Ethernet Ports (-24E models)Power RequirementsDual AC Power InputsDual IEC 60320 Socket Universal 100-240V AC 50/60Hz and IEC C14 side connectorsDual DC Power Inputs+/- 40V to 72V DC, 1.5A-0.75A (X 2), 48V NominalPower ConsumptionSerial Port models 1.6 A max
Mixed Port models 1.6 A maxPhysical DimensionsDimensions17.25 x 10.25 x 1.75 in, 44 x 26 x 4.5 cmWeight3.5 kgs 7.7 lbs.Form Factor1RUMemory and CPUCPUAMD GX-412TC 1.4 Ghz, 4-core 64-bit x86Memory8 GB DDR3 RAMBoot ROM16 MB SPI with password protectionInternal StorageM.2 SATA III 64 GB SSDEnvironmentalOperating Temperature5°C to 50°C, 41°F to 122°FStorage Temperature-30°C to +60°C, -22°F to +140°FHumidity5% to 90%CoolingPassive Cooling - can be forward or reverse mounted to suit best airflowSecurity, Encryption & Authentication
- Trusted Platform Module 2.0
- AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
- Embedded Firewall
- IPSec and OpenVPN
Automation & Scalability
- Opengear NetOps Modules
- Docker support
- Python
- Perl and bash support
- ZTP
- SNMP-Standard MIBs
Global LTE Cellular InterfaceModulesOM22xx-L - Sierra Wireless EM7565SpeedCAT12CoverageGlobal LTE-A SupportCertificationsCellularPTCRB, GCF, Verizon and AT&TCyber SecurityEN 18031-1:2024, EN 18031-2:2024, EN 61000-3-2:2019, EN 61000-3-3:2013, 47 CFR Parts: 15B, ICES-003 Issue 7ImmunityEN 55035:2017+A11:2020MTBF100,000 HoursOther Agency ApprovalsKS C 9832:2019, KS C 9835:2019, AS/NZ CISPR 32:2015, VCCI-CISPR 32:2016, CISPR 22:2009, CNS 15936:2016Radio Equipment Directive (RED)EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.2.1, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-52 V1.1.0RoHSEN 63000:2018SafetyIEC 60950-1:2005+A1+A2, 62368-1:2023 (Edition 4.0)
