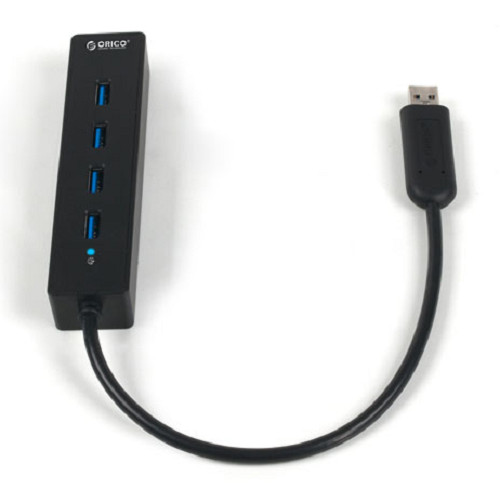

rico's latest portableSuperSpeed USB 3.0Hub series was designed with the latest laptops, ultrabooks, and tablet PCs in mind. Available in glossy black or white color schemes, the W8PH4 SuperSpeed USB 3.0 Hub is as attractive as it is functional. The W8PH4 4 Port Hub maximizes data transfer speeds when using higher-bandwidth peripherals including external USB 3.0 digital video cameras, disk drives, video surveillance cameras, high-resolution webcams, and multi-channel audio. These Orico hubs supportUSB 3.0data transfer speeds up to 5Gb/s and provides backwards support for USB 2.0 and USB 1.1 devices. The 4 port W8PH4 SuperSpeed USB 3.0 Hub works with a wide range of USB devices and allows simultaneous operation of multiple USB 3.0 and legacy USB devices.
Utilizing Via's efficient VL812 USB 3.0 controller chipset with advanced USB PHY technology, the W8PH4SuperSpeed hubfeatures advanced power management. Its built-in integrated charging controller circuit provides Digitally Charging Port (DCP) and Charging Downstream Port (CDP) capabilities conforming to the USB Battery Charging 1.2 Specification, resulting in charging efficiency up to 3 times of ordinary USB charging port. What's more, the W8PH4 4 Port SuperSpeedUSB 3.0 Hubprovides over-current protection at each port.
USB-HUB-W8PH4-BK
Features and Specifications
Features
- LED indicators allows observation of USB device state (Power/Activity)
- Meets the USB3.0 specification, supporting the transmission of high-speed 5Gbps bandwidth
- Support hot-swapping, plug and play, easy to use, and easy to carry
- Supports overload voltage and instantaneous current protection
- Backward compatible with USB2.0/USB1.1
Warranty Information
System Requirements
- Available USB port (USB 3.0 required for USB 3.0 operation)
Ports
- One upstream (USB Type B receptacle)
- Four (4) downstream (USB Type A style="line-height: 12.800000190734863px; list-style: square; margin: 0px 0px 0px 2.25em; padding: 0px 0px 0px 0.5em;">
- Universal Serial Bus 3.0 (xHCI)
- Universal Serial Bus 2.0 (EHCI)
- Universal Serial Bus 1.1 (OHCI)
Performance
- 1.5, 12, 480 Mbps, and 5Gbps (megabits) transfer rates
- To meet USB 3.0 transfer speeds, the highest quality USB 3.0 cables and devices are required
Data Transfer Rates
- SuperSpeed 5Gbps (Gigabits)
- High Speed 480Mbps (Megabits)
- Full Speed 12Mbps (Megabits)
- Low Speed 1.5Mbps (Megabits)
Wiring Topology and Connectivity Rules
- Tiered Star (Six cascaded tiers maximum)
- Up to 127 devices (including host)
Compliance
Package Includes
Physical Characteristics
- Dimensions: 137 x 30 x 20mm (Main Body)
- Weight: 80g
Electrical Characteristics
- Power Characteristics: (Self-Power on USB 3.0): 900mA/5V
