Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

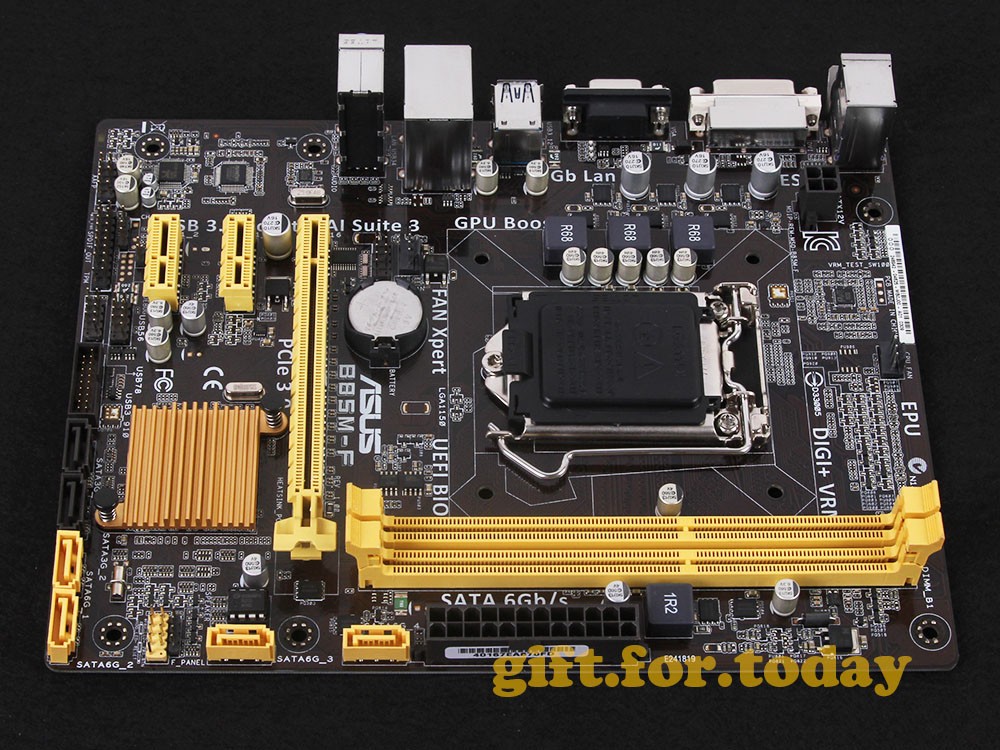

ASUS B85M-F Motherboard Introduction

CPU

Intel® Socket 1150 for New 4thGeneration Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official we sbite for CPU support list

Chipset

Intel® B85

Memory

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official we sbite for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic

Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
2 x PCIe 2.0 x1

Storage

Intel® B85 chipset :
4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

LAN

Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

Intel® B85 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® B85 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Special Features

ASUS 5X Protection :
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features:
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.0, WOL by PME, PXE

Form Factor

uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )

Note

*1:Te funkcje będą działały w zależności od zainstalowanego CPU.
*2:Skorzystaj z obudowy z modułem audio HD na panelu przednim, by uzyskać 8-kanałowe wyjście audio.

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
