Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

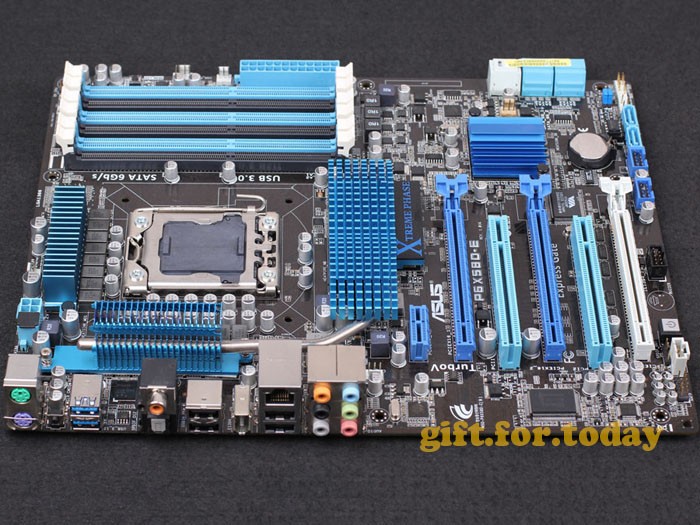

ASUS P6X58D-E Motherboard Introduction

CPU

Intel® Socket 1366 Core™ i7 Extreme Edition/Core™ i7 Processors
Supports Intel® Turbo Boost Technology

Chipset

Intel® X58/ICH10R

Memory

6 x DIMM, Max. 24GB, DDR3 2000(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Triple Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official webstie for the Memory QVL (Qualified Vendors Lists).

System Bus

6.4 GT/s Intel® QuickPath Interconnect

Multi-GPU Support

Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

3 x PCIe 2.0 x16 (x16, x8, x8 or x16, x16, x1)
1 x PCIe x1
2 x PCI

Storage

Intel® ICH10R controller :
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Marvell® PCIe 9128 controller : *1
2 x SATA 6Gb/s port(s), gray

LAN

Marvell 88E8056, 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio

Realtek® ALC889 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- DTS Surround Sensation UltraPC
- Coaxial and Optical S/PDIF out ports at back panel

IEEE 1394

VIA® 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB

NEC® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® ICH10R controller :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

ROG Exclusive Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Xtreme Design :
ASUS Power Design :
- 16 +2 Phase Power Design
- ASUS EPU
TurboV
ASUS Exclusive Features :
- MemOK!
- Express Gate
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- Stack Cool 3 +
- ASUS Fan Xpert
ASUS Crystal Sound :
- ASUS Noise Filter
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Coaxial S/PDIF out
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)

Internal I/O Ports

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
6 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x CD audio in(s)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Power-on button(s)

BIOS

16 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1-1: These SATA ports are for data hard drives only. ATAPI devices are not supported.
*1-2: Supports Drive Xpert technology, EZ Backup and Super Speed functions.

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited
shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
