Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

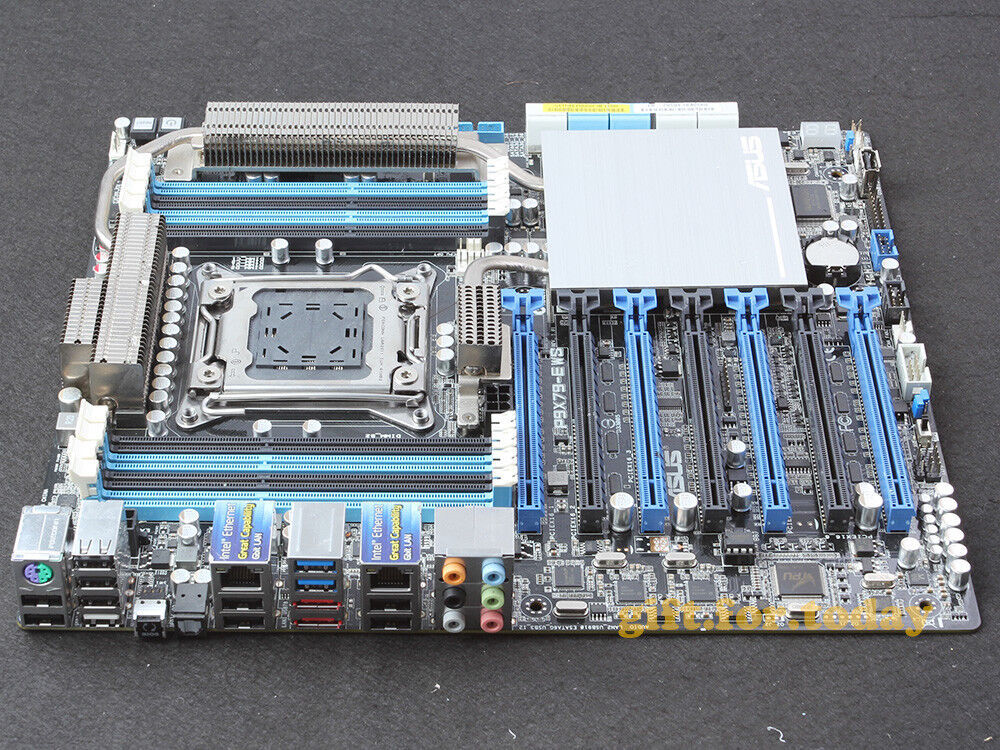

ASUS P9X79-E WS Motherboard Introduction

CPU

Intel® Core™ i7 Processors
Intel® Socket 2011 for Xeon® E5-1600/E5-1600 v2 processors
Intel® Socket 2011 for Xeon® E5-2600/E5-2600 v2 processors
Supports Intel® Turbo Boost Technology 2.0
* Refer to ASUS official website for CPU support list

Chipset

Intel® X79

Memory

8 x DIMM, Max. 64GB, DDR3 MHz ECC, Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology

Expansion Slots

7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x16/x8/x8, black+blue) *

Storage

Intel® X79 chipset :
2 x SATA 6Gb/s port(s), white
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Marvell® PCIe 9230 controller :
4 x SATA 6Gb/s port(s), white
Support Raid 0, 1, 10
ASMedia® PCIe SATA controller :
2 x eSATA 6Gb/s port(s), red
Support port multiplier support

LAN

Intel® I210, 2 x Gigabit LAN Controller(s)

Audio

Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Surround Sensation UltraPC
- Optical S/PDIF out port(s) at back panel

IEEE 1394

VIA® 6315N controller
1 x IEEE 1394a port(s)

USB Ports

ASMedia® USB 3.0 controller :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® X79 chipset :
13 x USB 2.0 port(s) (10 at back panel, black, 3 at mid-board)

Workstation Feature

7 x PCIe x 16 slot(s)
Quick Gate: 1 x vertical USB 2.0 on board
ASUS WS Diag. LED
ASUS Dr. Power

Special Features

ASUS Xtreme Design :
ASUS TPU :
- TPU switch
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 + 2 Phase CPU Power Design
- Industry leading Digital 2 + 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS SSD Caching II
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert+
ASUS EZ DIY :
- USB BIOS Flashback
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
2 x eSATA 6Gb/s
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
10 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
8 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Vertical USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x Dr.Power switch(es)

BIOS

64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Operating System

Fedora 17
Windows® 8 32/64-bit
Windows® 7 32/64-bit
RedHat® Enterprise Linux WS 6.3 32/64-bit
Open SUSE 12.2
Ubuntu Desktop 12.10
*(Subject to change without any notice)
*1

Form Factor

CEB Form Factor
12 inch x 10.5 inch ( 30.48 cm x 26.67 cm )

Note

* This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to ASUS official website for updated details.
*1 Linux OS only conduct installation test OK.

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
