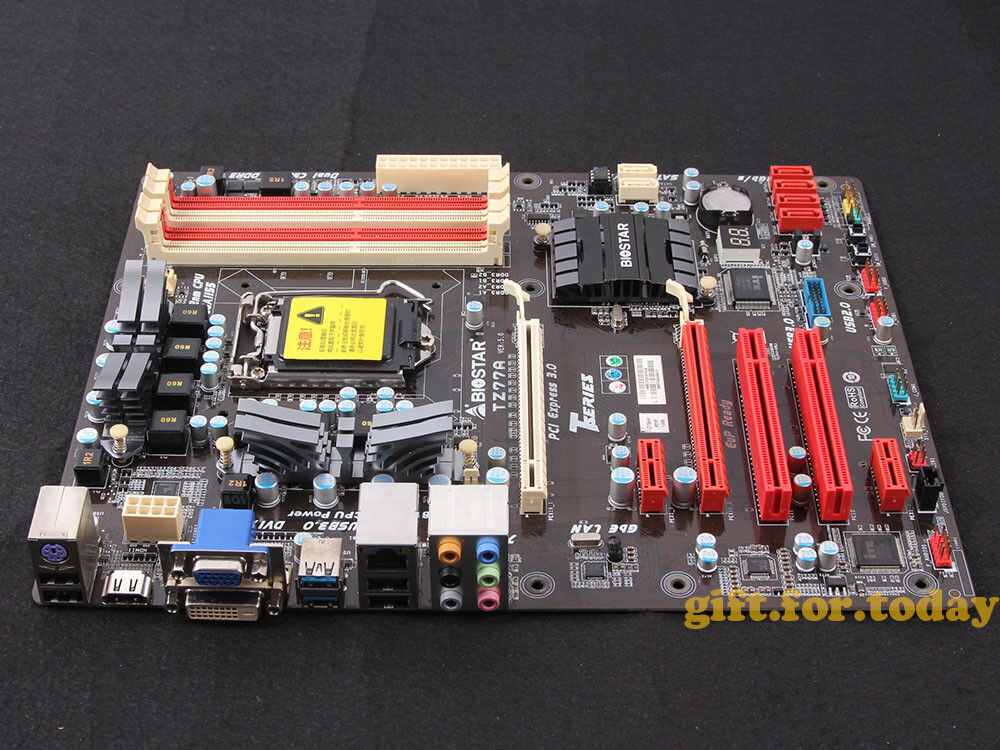

Biostar TZ77A Motherboard Introduction

Chipset

Intel Z77

CPU SUPPORT

Intel® Core™ i7 LGA 1155 Processor
Intel® Core™ i5 LGA 1155 Processor
Intel® Core™ i3 LGA 1155 Processor
Intel® K-Series unlocked CPU supported
Maximum CPU TDP (Thermal Design Power) : 95Watt

MEMORY

Support Dual Channel DDR3 MHz
4 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

EXPANSION SLOT

1 x PCI-E x16 3.0 Slot(supported by Core i5 -3xxx / Core i7 3xxx CPU)
1 x PCI-E x16 2.0 Slot(x4)
2 x PCI-E x1 2.0 Slot
2 x PCI Slot

STORAGE

2 x SATA3 Connector
4 x SATA2 Connector
Support SATA RAID: 0,1,5,10
Support Intel Smart Response Technology

USB

2 x USB 3.0 Port
1 x USB 3.0 Header
4 x USB 2.0 Port
2 x USB 2.0 Header
Intel USB3.0 only support Win7 or later version

LAN

Realtek RTL8111E - 10/100/1000 Controller

MULTI GRAPHICS

AMD CrossFireX

INTEGRATED VIDEO

By CPU model
Supports DX11
Supports HDCP

CODEC

Realtek ALC892 8-Channel Blu-ray Audio

REAR I/O

1 x PS/2 Keyboard
2 x USB 3.0 Port
4 x USB 2.0 Port
1 x HDMI Connector
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
6 x Audio Connector

INTERNAL I/O

1 x USB 3.0 Header
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
4 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
1 x CIR Header

H/W MONITORING

CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION

ATX Form Factor Dimension: 30.5 cm x 24.4 cm ( W x L )

OS SUPPORT

Support Windows XP / Vista / 7 / 8

FEATURES

Windows 8 Compatible
Supports uEFI GUI Interface BIOS
Supports 100% Solid capacitor
Supports 8-Phase Power
Supports Rapid Switch2
Supports Rapid Debug3
Supports HDMI Audio Ready
Supports BIOS-Flasher
Supports Toverclcoker OC software
Supports GPU
Supports Charger Booster
Supports BIOS Online Update
