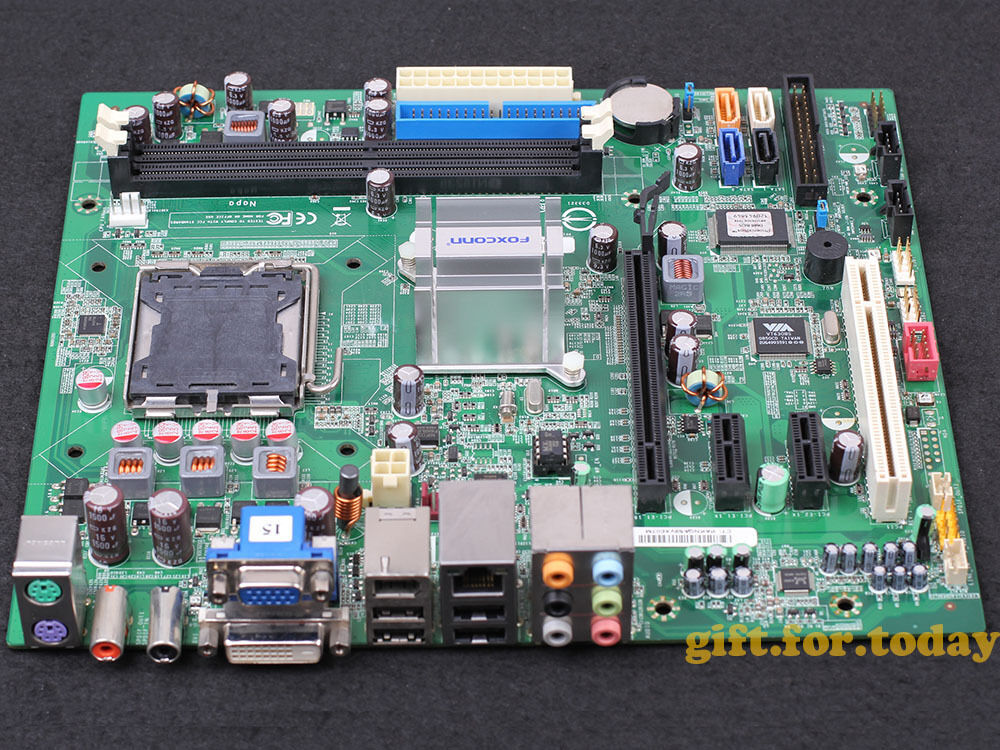

Foxconn MCP73M01H1 MCP73M02H1 Motherboard Introduction

Part / Feature

Specification / Support

Motherboard description

• Motherboard manufacturer's name: Foxconn MCP73M01H1/ MCP73M02H1
• HP/Compaq name: Napa-GL8E

CPU/Processor

• Socket: 775
• Supports the following processors:
• Intel Core 2 Duo (Wolfsdale core) E8xxx (65W)
• Core 2 Duo E6xxx (Conroe core) up to E6850 (65W)
• Pentium E2xxx series (Conroe core) with Dual Core technology up to E2160 (65W)
• Core 2 Duo E4xxx (Conroe core) (65W)
• Celeron 4xx series (Conroe core) up to Celeron 450 (35W)

Front-side bus (FSB)

• 800/1066/1333 MHz

Chipset

• GeForce 7100/nForce 630i

BIOS features

• Keyboard combination to used to enter BIOS: F10
• System BIOS core brand: Award

Form factor

• micro-ATX: 9.6 in X 8.5 in

Memory

• single channel memory architecture
• Two 240-pin DDR2 DIMM sockets
• Supported DIMM types:
• PC2-4200 (533 MHz)
• PC2-5300 (667 MHz)
• PC2-6400 (800 MHz)
• Non-ECC memory only, unbuffered
• Supports 2GB DDR2 DIMMs
• Supports up to 4 GB* on 32 bit PCs (using two 2 GB DIMMs)

NOTE: *Actual available memory may be less.

Expansion slots

• One PCI
• One PCI Express x16 graphics (for graphics cards)
• Two PCI Express x1 (for cards such as network, sound, tv-tuner)

Video graphics

• Integrated graphics using GeForce 7100
• One VGA port on backplate
• One DVI port on backplate
• Also supports PCI Express x16 graphics cards

NOTE: Either integrated graphics or the PCI Express x16 slot are usable at one time; they are not usable concurrently.

Parallel ATA

• One 40-pin UltraDMA 100/66/33 connector
• Supports PIO, multi-word DMA modes
• Supports two PATA disk drives on one PATA ribbon cable (two drives total)

Serial ATA

• Four SATA connectors:
• SATA1 = Black

SATA2 = White

SATA3 = Blue

SATA4 = Yellow

• Supports 1 SATA-150 or SATA-300 disk drive on each SATA connector
• Speed up to 1.5Gb/sec or 3.0Gb/sec, complying with SATA 1.0 and SATA 2.0 specifications

NOTE: The faster rate of 3.0Gb/sec requires that both the hard drive and the motherboard support it. If one or the other does not support 3.0 Gb/sec, the PC negotiates down to the slower 1.5 Gb/sec.

Onboard audio

• Audio CODEC: ALC888S
• 8 channel high-definition audio

Onboard LAN

• PCI Realtek RTL8201CL 10/100 LAN PHY

Onboard USB

• USB 2.0
• Ten ports total
• Four connectors on back panel
• Three headers support six additional USB ports/devices

NOTE: Some USB ports may not be available externally for customer use. For more information, see model specifications.

Onboard 1394

• Type: IEEE 1394a 400Mb/s
• Agere LFW3227 controller chip
• Two ports total
• One port on back panel
• One header on motherboard supporting one additional port/device

Back panel I/0

• One PS/2 mouse port (green)
• One PS/2 keyboard port (purple)
• One coaxial SPDIF out
• One coaxial SPDIF in
• One DVI port
• Four USB 2.0
• One 6-pin IEEE 1394a
• One RJ-45 networking port
• Six audio ports support 8-channel audio:
• Line-in (light blue)
• Microphone-in (pink)
• Line-out (lime)
• Center/Subwoofer-out (yellow-orange)
• Side speaker-out (gray)
• Rear speaker-out (black)

Internal connectors

• One 24-pin ATX power connector
• One 4-pin ATX power connector
• One PATA connectors
• Four SATA connectors
• Two 12v fan connectors for CPU fan and PC fan
• One 9-pin header for power button, reset button, power LED, and HDD LED
• One SPDIF digital audio output header
• One Line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)
• One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
• Four USB headers supporting 6 additional USB 2.0 ports or devices
• One 1394a header
• One jumper for resetting BIOS settings
• One jumper to disable BIOS password checking
