Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

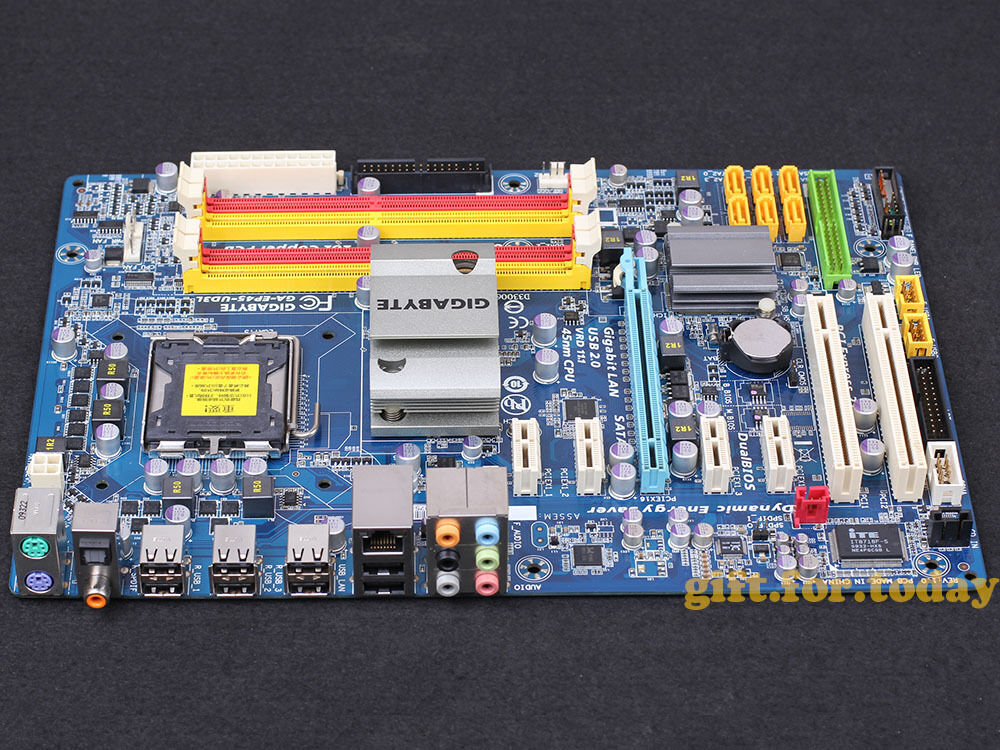

Gigabyte GA-EP45-UD3L V1.0 Motherboard Introduction

CPU

1. Support for an Intel Core™ 2 Extreme processor/ Intel Core™ 2 Quad processor/Intel Core™ 2 Duo processor/Intel Pentium Dual-Core processor/Intel Celeron processor in the LGA 775 package (Refer to CPU support list for more information)
2. L2 cache varies with CPU

Front Side Bus

1. 1600/1333/1066/800 MHz FSB

Chipset

1. North Bridge: Intel P45 Express Chipset
2. South Bridge: Intel ICH10

Memory

1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
2. Dual channel memory architecture
3. Support for DDR2 1366+*/1066/800/667 MHz memory modules

* Refer to Memory Support List for more information.

Audio

1. Realtek ALC888 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. 1 x Realtek 8111C chips (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
2. 4 x PCI Express x1 slot
3. 2 x PCI slots

Storage Interface

South Bridge:

1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices

GIGABYTE SATA2 (JMicron 368) chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

1. Integrated in the South Bridge
2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan headers
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 2 x USB 2.0/1.1 headers
15. 1 x parallel port header
16. 1 x serial port header
17. 1 x power LED header
18. 1 x chassis intrusion header

Back Panel Connectors

1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard/mouse port
3. 1 x optical S/PDIF Out connector
4. 1 x coaxial S/PDIF Out connector
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 ports
7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line

I/O Controller

1. iTE IT8718 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for Dual BIOS
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Dual BIOS
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune 6
8. Support for Dynamic Energy Saver Advanced
9. Support for Time Repair
10. Support for Q-Share

Form Factor

1. ATX Form Factor; 30.5cm x 21.0cm

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.

Package include:1* motherboard2* SATA cables1* I/O pannel
