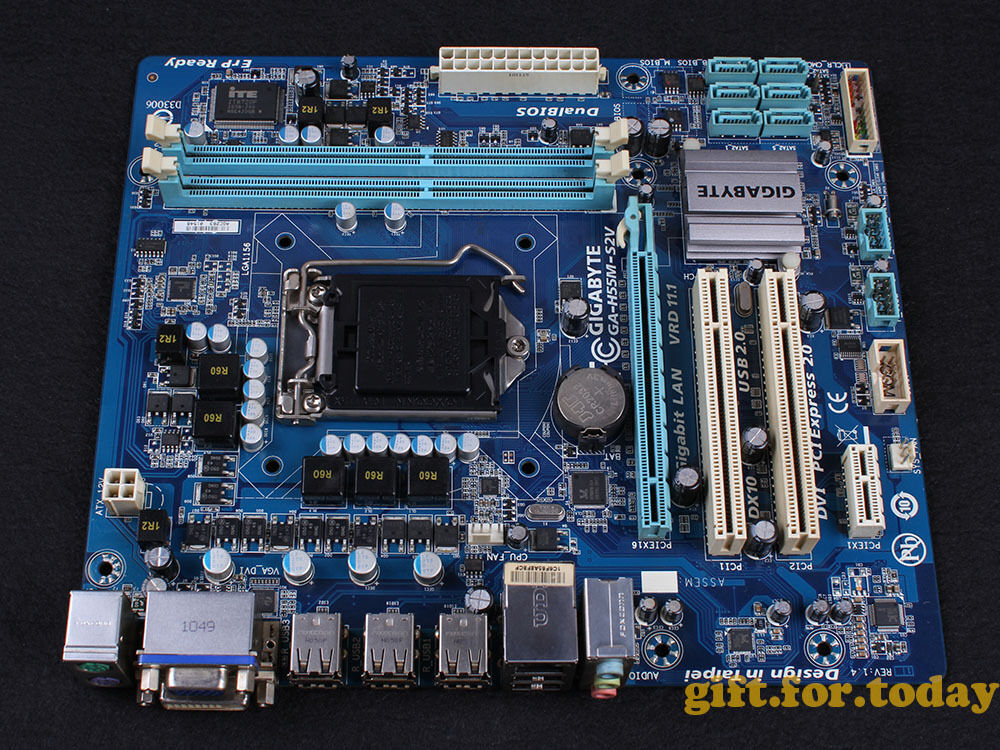

Gigabyte GA-H55M-S2V V1.4 Motherboard Introduction

• Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
• 3x USB power delivery for greater compatibility and extra power for USB devices
• Supports Intel Core i5/ Core i3 LGA1156 processors featuring integrated Intel HD Graphics
• Ultimate graphics performance with PCI-Ex16 interface
• AutoGreen technology Greening your PC via Bluetooth cellphone
• Patented DualBIOS™ technology delivering highest level failure protection
• Integrated DVI interface for smoother HD video playback
• Features high speed Gigabit Ethernet connection
• Compatible with Windows 7 to deliver the best operation experience
• Meet European Union ErP(Energy-related Products) requirement

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU

Chipset

1. Intel® H55 Express Chipset

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2200/1800/1600/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics

Integrated in the Chipset:

1. 1 x DVI-D port (Note 2)(Note 3)
2. 1 x D-Sub port (Note 2)

Audio

1. Realtek ALC888B codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note 4)

LAN

1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
   (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

Storage Interface

Chipset:

1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

USB

Chipset:

1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x serial port header
10. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port (Note 2)
4. 1 x DVI port (Note 2)(Note 3)
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for at BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Auto Green
9. Support for ON/OFF Charge
10. Support for Q-Share

Form Factor

1. Micro ATX Form Factor; 24.4cm x 21.0cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Note

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard DVI-D/D-Sub port, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 5) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.
