Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

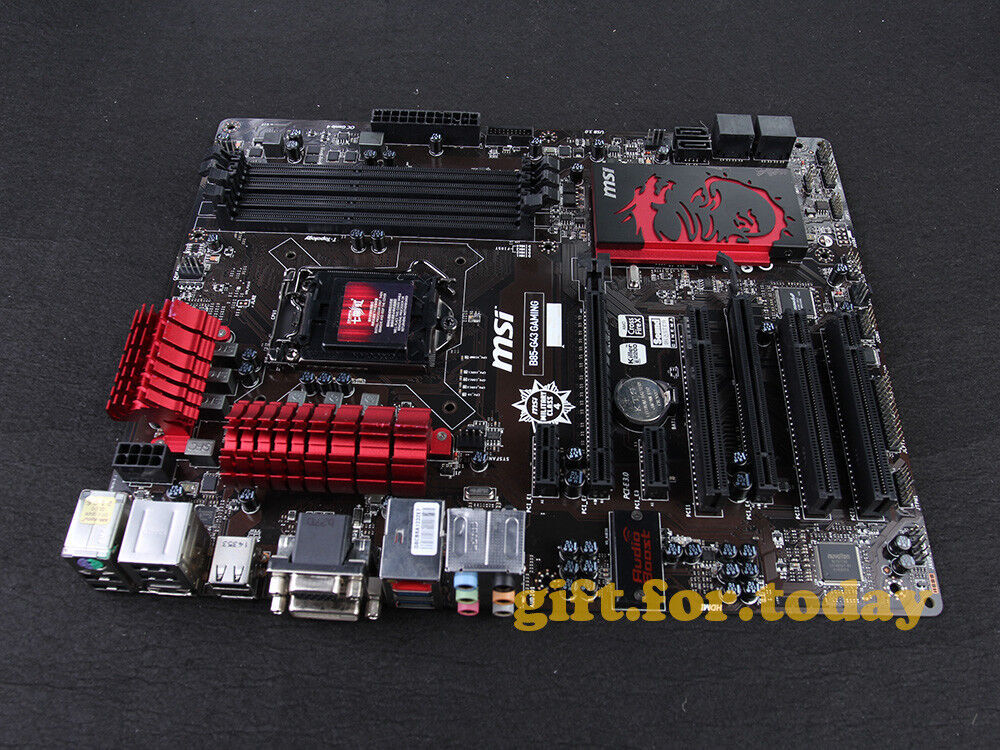

Motherboard Introduction

CPU

•4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only

Chipset

• Intel® B85 Express Chipset

Main Memory

• Support four DDR3 1066/1333/1600 MHz DRAM, 32GB Max
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Supports non-ECC, un-buffered memory

Slots

•1 x PCIe 3.0 x16 slots, supports up to PCIe 3.0 x16 speed
•1 x PCIe 2.0 x16 slot, supports up to PCIe 2.0 x4 speed
• 2 x PCIe 2.0 x1 slots
• 3 x PCI slots

On-Board SATA

• SATAIII controller integrated in Intel® B85 chipset
- 4x SATA 6Gb/s ports (SATA1~4)
- 2x SATA 3Gb/s ports (SATA5~6)

USB

•4x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connector)
•8x USB 2.0 ports (6 ports on the back panel, 2 ports available through the internal USB connectors)

Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio

LAN

• 1 x Killer E2205 Gigabit LAN controller*
* The Killer Network Manager is only available for Windows 7 and Windows 8 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.

Multi-GPU

• Supports 2-Way AMD CrossFireTM Technology*
* Supports Windows 7 and Windows 8.

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
-4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
-1 x USB 2.0 connectors (supports additional2 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
-3 x 4-pin system fan connectors
- 1 x Trusted Platform Module (TPM) header
- 1 x Serial port connector
- 1 x Front Panel Audio connector
-2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyboard/mousecombo port
-6 x USB 2.0ports
-2 x USB 3.0ports
- 1 x RJ45 LANjack
- 6 xOFC audio jacks
- 1 xGraphics cardport, supporting a maximum resolution of 1920x1200 at60Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at60Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 at24Hz, 24bpp/ 2560x1600at60Hz, 24bpp/ 1920x1080at60Hz, 36bpp

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor

Mounting

•9 mounting holes.

Shipping

Economy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
