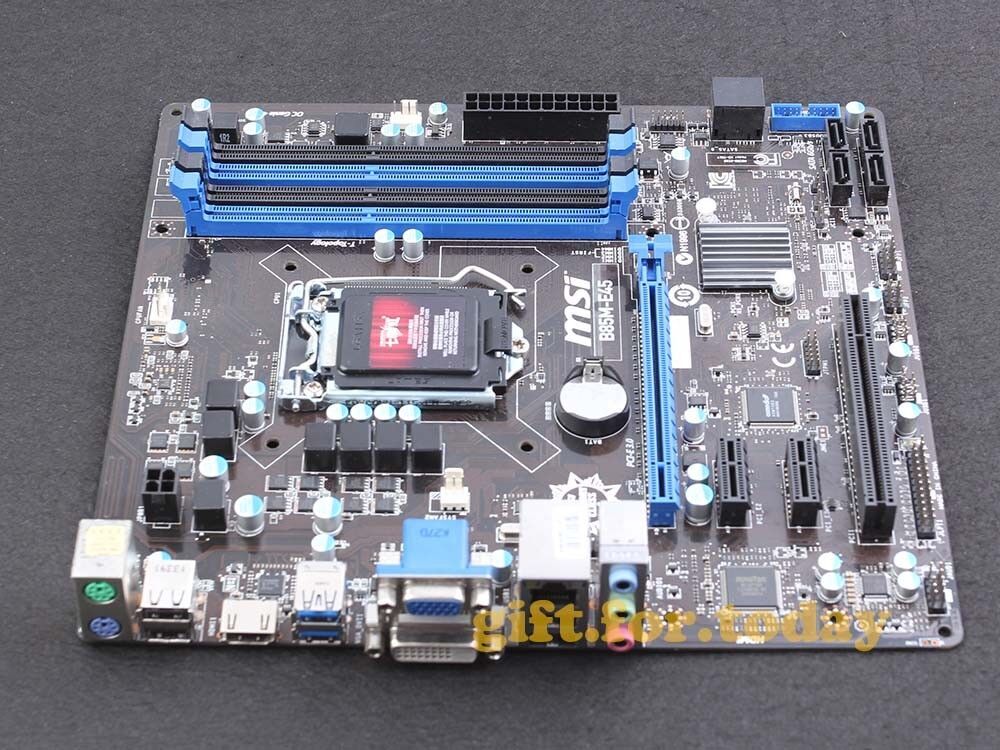

MSI B85M-E45 Motherboard Introduction

CPU

• Supports 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel®B85 Express Chipset

Main Memory

• Supportsfour unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM up to 32GB Max
• Supports Dual channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 3.0 x16 slot
•2 x PCIe 2.0 x1 slots
•1 x PCIslot

On-Board SATA

• SATAIII controller integrated in Intel® B85chipset
- Up to 6Gb/s transfer speed.
- Supportsfour SATAIII port (SATA1~4) byB85
• SATAII controller integrated in Intel®B85chipset
- Up to 3Gb/s transfer speed.
- Supportstwo SATAII ports (SATA5~6) byB85
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8

USB

• 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
• 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Chipset integrated by Realtek® ALC887
-7.1-Channel High Definition Audio

LAN

• Supportsone PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111G

Internal I/O Connectors

- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
-1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x Clear CMOS jumper
-2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports)
- 1 x Serial port connector
- 1 xParallel port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector

Back Panel I/O Ports

- 1 x PS/2 keyboardport
- 1 x PS/2 mouse port
-4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x3 in 1 audio jack
- 1 xHDMI port, supporting the maximum resolution of 4096x2160at24Hz, 24bpp/ 2560x1600at60Hz, 24bpp/ 1920x1080at60Hz, 36bpp
- 1 xDVI-Dport, supporting a maximum resolution of 1920x1200 at60Hz
- 1 x Graphics port,supporting a maximum resolution of 1920x1200 at60Hz

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

•9.0 in. x 9.6 in. (22.8 cm x 24.4 cm) Micro-ATX Form Factor

Mounting

•6 mounting holes.
