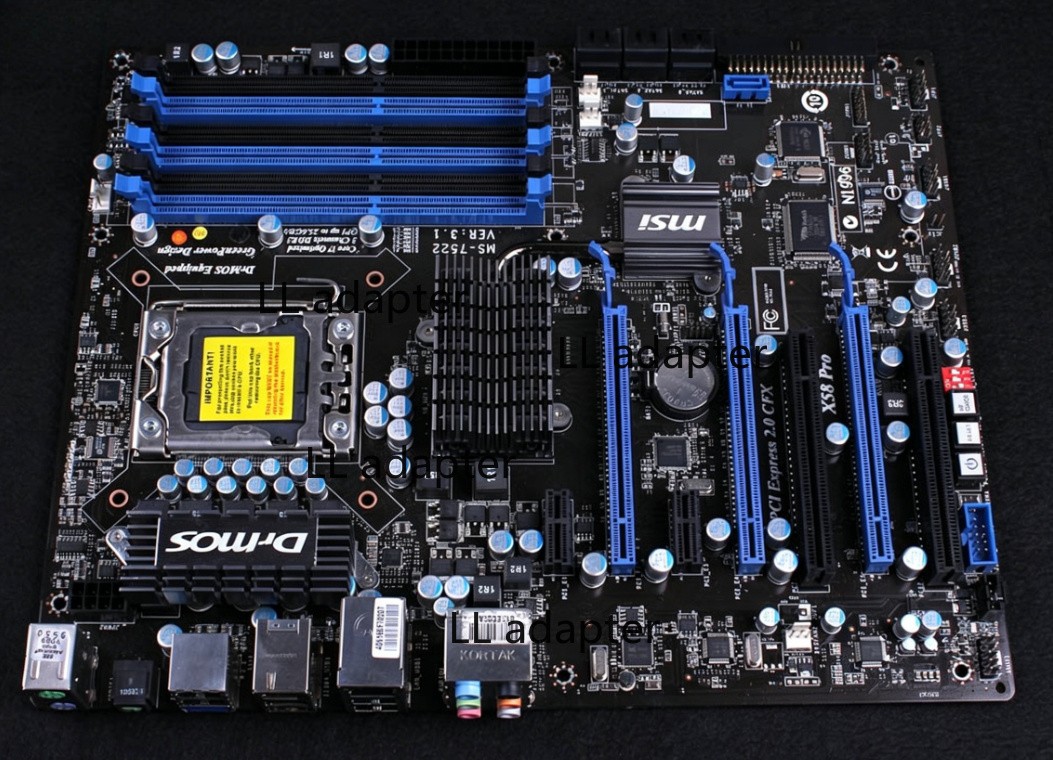

MSI X58 PRO X58 PRO-E MotherboardIntroduction

CPU

• Supports Intel® i7 based processors in LGA1366 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® X58 Chipset
-Supports QPI up to 6.4GT/s

Intel® ICH10R Chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
-6 SATAIIports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.

Main Memory

• Supports six unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333*/1600* (OC)DRAM, 24GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size

- Supports x8 / x16 data lines per DIMM

- Supports up to 3 channel mode

Slots

•3 PCI Express gen2 x16 slots
- two dark Blue PCIE x16 slots (PCI_E2 &PCI_E4) support up to PCIE x16 speed, one Blue PCIE x16 slot(PCI_ E5) supports up to PCIE x4 speed
- supports ATI® Crossfire™
•2 PCI Express gen1 x1 slots
• 2 PCI slot, support 3.3V/ 5V PCI bus Interface

On-Board IDE/SATA

•One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
•SATAII controller integrated in ICH10R/JMicron® 363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10R (SATA1~6)
- SupportsoneSATAII port by JMicron 363 (SATA7)
- Supportsone eSATA port by JMicron 363.
- Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.

Audio

• Chipset integrated by Realtek® ALC888S
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

LAN

• Supportsone PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.

IEEE1394 / FireWire

•JMicron®381 chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 1 x serial port pinheader
-3 x USB 2.0 connectors
-7 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x ResetButton
- 1 x Power Button
- 1 x Clear CMOS Button
-1 x SPDIF-out connector
- 1 x TPM module connector

Back Panel I/O Ports

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x eSATA port
- 1 x IEEE1394 port
-6 x USB 2.0 ports
-1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack
- 1 x Optical SPDIF-out

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 30.5cm(L) x 24.4cm(W) ATX Form Factor

Mounting

• 9 mounting holes.
