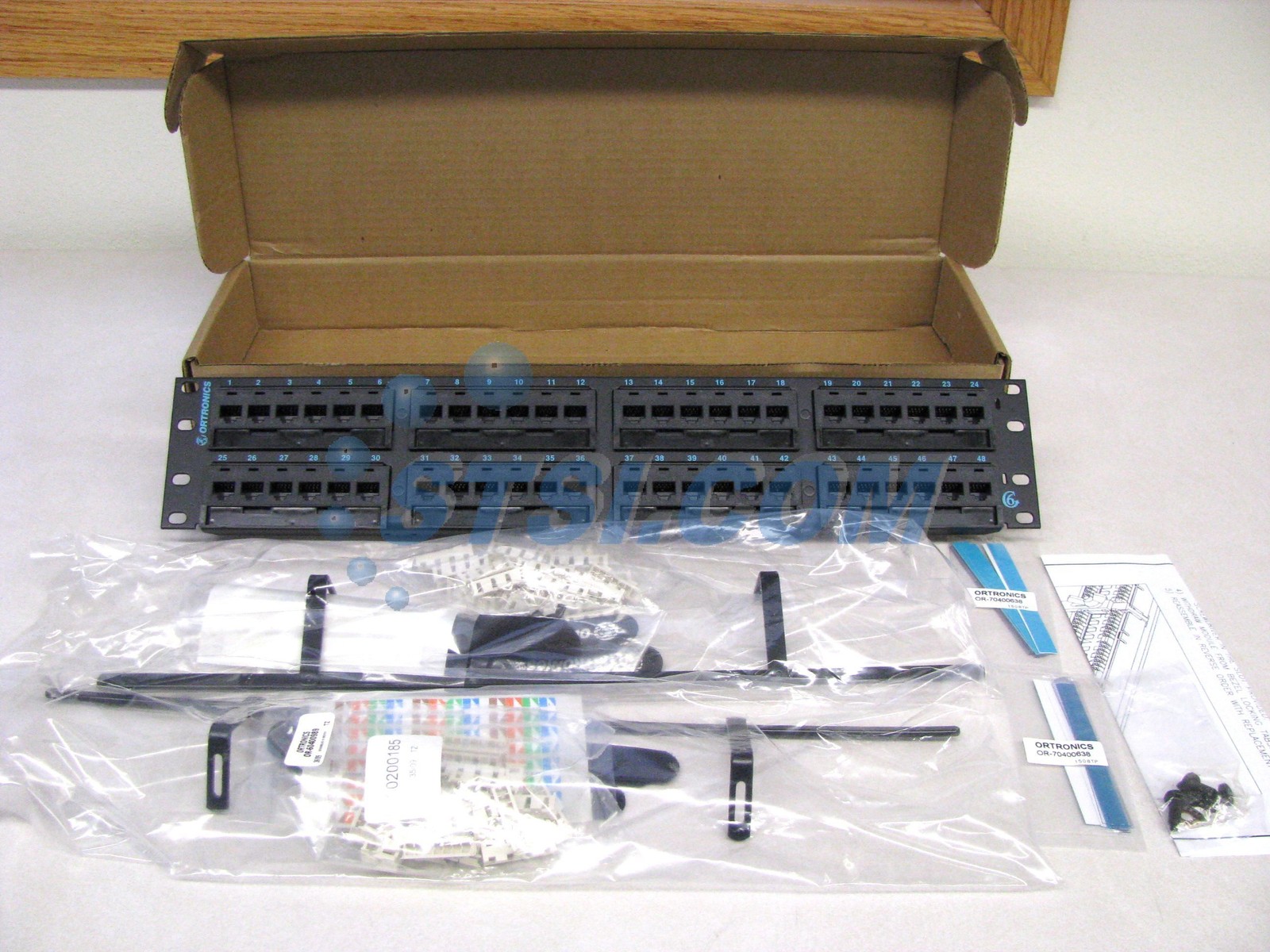

Ortronics Clarity 6 Cat6 48-Port Patch Panel OR-PHD66U48, New ~STSI
Clarity 6 48-port high density Category 6 patch panel is component compliant to EIA/TIA Category 6 performance requirements. It occupies two rack units, and measures 19" x 3.5". Jacks are grouped in six-port modules. Part of the Clarity 6 link and channel solution that provides significant installed performance headroom. Features:
ETL verified to TIA Category 6 component spec: Ensures component performance.
Center tuned to Clarity 6 patch cords: More transparent mated union.
Universally wired 110 termination: Supports T568A and T568B installs.
New IDC housing: Handles larger Category 6 conductors.
Supplied rear cable management: Supports good cabling practice.
High density design: Maximizes rack utilization.
RoHS compliant: Lead Metric: 88.9 mm
Width Metric: 482.6 mm
Cable Diameter Range: 22-26 AWG
Depth Metric: 31.75 mm
Height U S: 3.5 in
Mod Jack Wiring: Universal T568A/B
Number Of Ports: 48
Performance Rating: Category 6
Category Rating: Category 6
Component1: Panel - Material1: .094" Aluminum, Finish_Plating1: Painted black texture with blue silkscreen
Component4: Array of eight modular dual reactance Category 6 contacts - Material4: Beryllium Copper, Finish_Plating4: Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
Component5: IDC contacts (low noise) - Material5: Phosphor Bronze, Finish_Plating5: Nickel plating with tin over plate
ETL 3013270-004
FCC
UL E131600
Country of Origin: MEXICO
Buy American Act Status: Trade Agreement Act Compliant
