PACBTECH 12G SDI/HDMI 4K Video SFP+ Fiber Module
🎥 Broadcast-Grade Fiber Transceiver, Compatible with Blackmagic ASI Systems
Choosing Your Option
Single Fiber - 1 Pair: Two single-fiber SFP modules (one pair) using a single LC connector each.

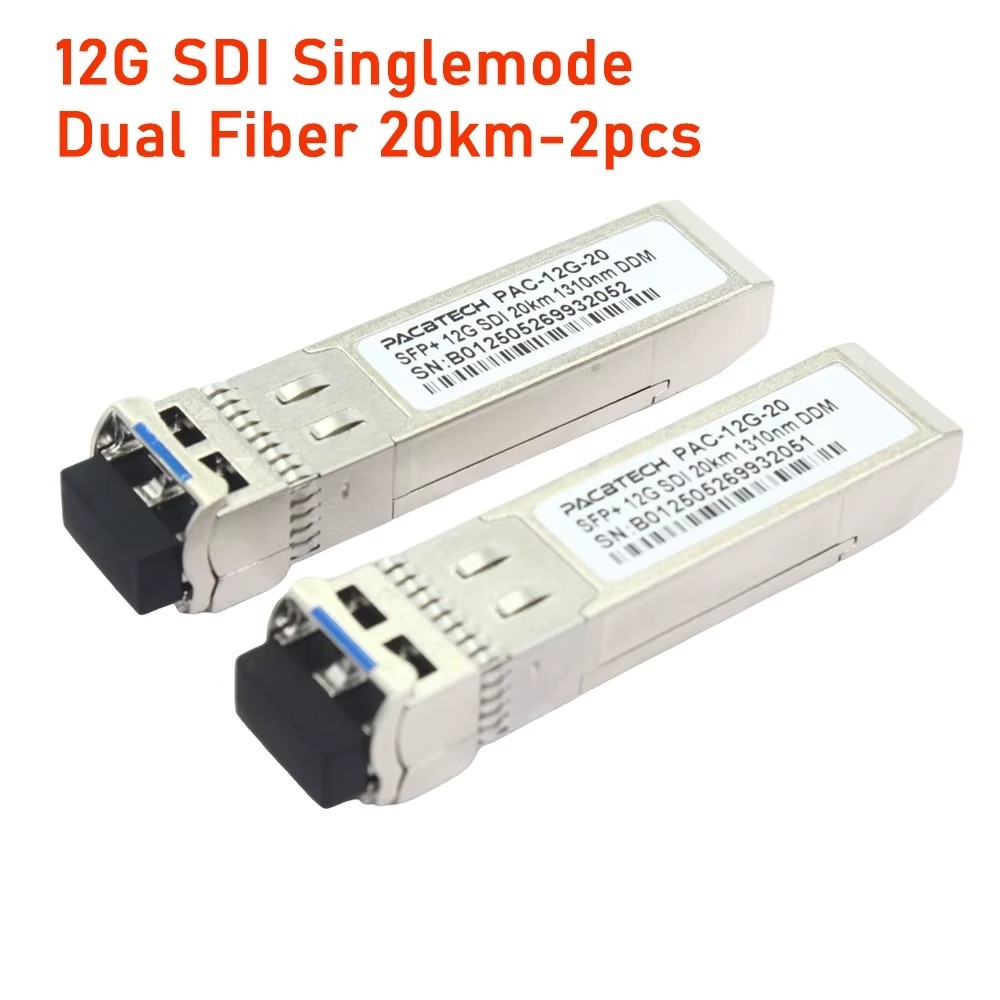

Dual Fiber - 2pcs: Two dual-fiber SFP modules with separate transmit/receive fibers.
Dual Fiber - 10pcs: Ten dual-fiber SFP modules, ideal for multi-channel broadcast setups.
Dual Fiber - 20KM 1pc: A single long-range dual-fiber module rated for 20km transmission distance.
Overview
The PACBTECH 12G SDI/HDMI 4K Video SFP+ module is a high-performance, hot-pluggable optical transceiver designed for high-speed serial links over single-mode fiber at signaling rates up to 12.5Gbps. It is compatible with Blackmagic ASI broadcasting equipment and standard MSA-compliant SFP+ ports.
Key Features⚡ High-Speed Transmission
Supports operating data rates up to 12.5Gbps, ideal for 12G-SDI 4K video and 10G Ethernet applications.
📡 Long Distance Coverage
Transmits up to 10km or 20km over 9/125um single-mode fiber depending on option selected.
🔌 MSA & DDM Compliant
Compliant with SFP+ MSA, SFF-8431 Rev 4.1, and SFF-8472 Digital Diagnostic Monitoring standards.
🛡️ Reliable Design
Low jitter, low EMI, excellent ESD protection, and low power dissipation for stable broadcast performance.
SpecificationsModel NumberXC-12G/SDI-20KMFiber TypeMultimode / Single-mode optionsConnector TypeLC/UPCData RateUp to 12.5GbpsTransmission Distance10KM / 20KMWavelength1310nmVideo Support4K SDI, HDMIPower SupplySingle +3.3VPower SourceNon-Powered (SFP host powered)Product ImagesFAQQ: Is this compatible with Blackmagic broadcasting equipment?
A: Yes, this module is designed to work with standard SFP+ ports found on Blackmagic ASI broadcasting devices and other MSA-compliant equipment.
Q: What is the difference between the fiber options?
A: Single fiber uses one LC connector per module, while dual fiber uses separate transmit/receive fibers. Choose the quantity and distance rating that matches your setup.
Q: What video formats are supported?
A: The module supports 12G-SDI and 4K HDMI video signals over fiber at data rates up to 12.5Gbps.
