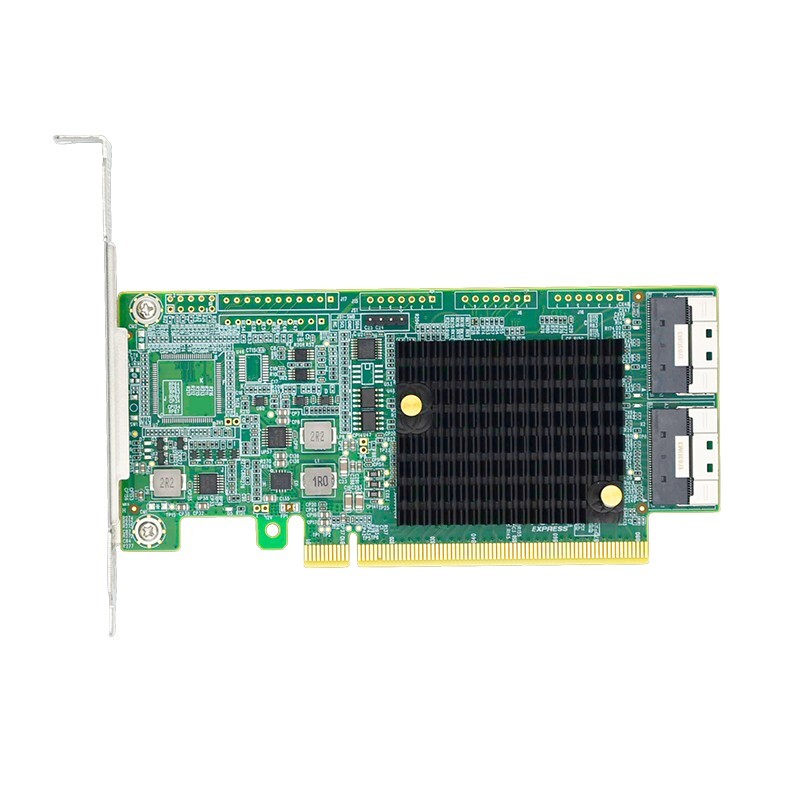

Product Name:PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter
Interface Type:2*Slim SAS SFF-8654 8i
Support Equipment: Up to 4* PCIe 4.0 U.2 NVMe SSD
Host Bus Type: PCIe 4.0 x 16
Ps. Motherboards and BIOS Support Bifurcation required
Product Description
NV9F24 is a signal retimer adapter used to secure the link budget to meet the challenging signal integrity requirements for long PCIe Gen4 channel comprising PCB, connector and cable. It uses advanced signal conditioning techniques to compensate for the channel attenuation and remove the impacts of various jitter sources. It connects NVMe SSD or PCIe connectors via SlimSAS connector (SFF-8654).
Applications
It is targeted for meeting the higher performance PCIe Gen4 interconnection needs of the following end applications:
• Servers
• Storage Appliances
• Hardware Accelerators
The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support one PCIe x8 link width.
Features
High Performance Retimer
-Compensateforchannel loss up to 30dB bycomprising PCB, connector and cable
-Eliminate deterministic and random jitter
PCIe Standards and Compatibility
Supplemental Features and Standard BGA
Clocking
-Use standard 100MHz reference clock
-Supportsthe optional SRIS feature (SeparateReference Clock Independent Spreading)
-Support 100MHz reference clock output
Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 8i to 2xSFF-8639 cable
Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402for high-performance storage connectivity
Eight internal lanes per SlimSAS 8i port,128GB/s per port，
PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.
Specifications
PCI Express Base Specification, r4.0, compatible PCIe 1.0&2.0&3.0
Compliant withIntel PCIe 4.0 Retimer
Compliant with SFF-8654 Specification Version 1.2
Compliant with NVM Express 1.3
Support up to 4 NVMe SSDs
Support hot plug,but need to be used with a backplane that supports hot-swappable,Such asIntel whitley Ice Lake server and AMD server backplane& TYAN TS65A-B8036 (B8036T65AV4E24HR)
OperatingSystem support
The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to the host and use the native NVMe drivers.
Redhat
Free BSD
Vmware
Linux
Windows
Application
Suitable for higher performance of PCIe Gen4 connections for Storage Servers, Data Center, Servers RAID and Controllers.
